2. Control System
4 2.2 Basic patterns
2
2.2
Control
system

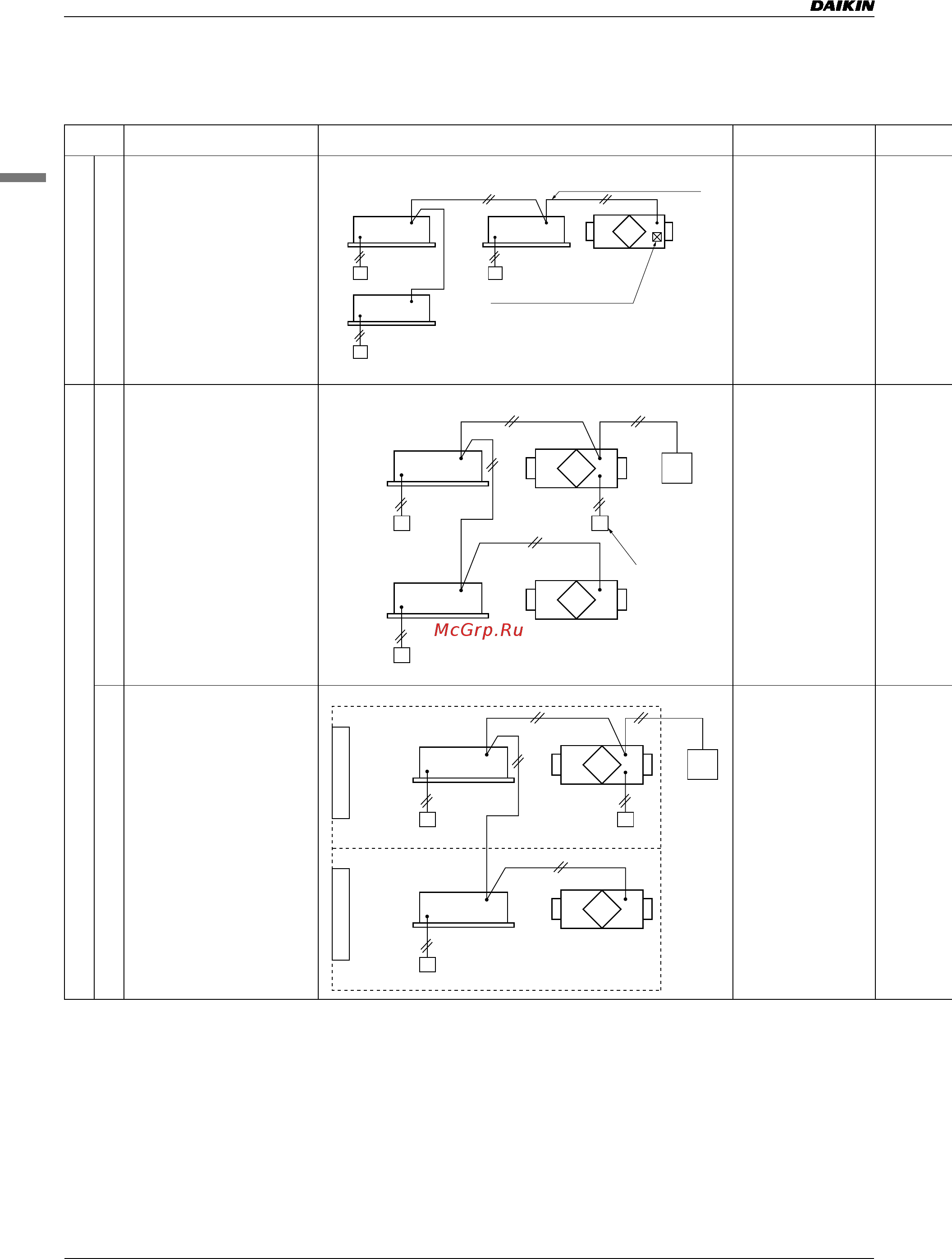

Purposes and applications Description of system Optional accessories required
Interlocked operation system with VRV
systems and SkyAir series
Interlocked operation with 2 or more groups
•When the HRV unit is interlocked to 2
or more groups of indoor units, The
HRV unit operates if one of indoor unit
in the groups is in operation. The HRV
unit can also be operated
independently by remote controller for
indoor unit, even if the indoor unit is
not in operation.
KRP2A61
♦
Adapter PCB for
remote control
(One adapter PCB
should be installed in
either the HRV unit or
the indoor unit.)
Centralized control system
Coolective / Individual control
[Unified On / Off Controller]
•A maximum of 16 groups can be
controlled of “On / Off” by one
controller, and up to four controllers can
be installed in one system.
[Schedule Timer]
•One schedule timer can control the
weekly schedule of up to 128 units.
[Adapter PCB for remote control]
•One adapter PCB can control up to
64 groups collectively.
DCS301B61
♦
Unified On / Off
Controller
(up to 4 controllers)
DST301B61
♦
Schedule timer
KRP2A61
♦
Adapter PCB for
remote control
(not
possible to use together
with other central
controller)
*One of the above
controller should be
installed in indoor unit.
(However, only KRP2A61
can also be installed in HRV
unit.)
Zone control system
•The Central remote controller can
control the zone operation of the
several groups of the units collectively.
•Central remote controller can control
the independent operation of HRV unit
in each zone.
DCS302B61
♦
Central remote
controller
Remote controller for indoor unit Remote controller for indoor unit
Adapter PCB for remote conrol
R
emote controller for indoor unit
Indoor unit Indoor unit
Central transmission line
HRV unit
Remote controller for HRV unit
Remote controller for indoor unit
Indoor unit
HRV unit
Unified On / Off
controller or
Schedule timer
or Adapter PCB
for remote control
Remote c ontroller
for indoor unit
Indoor unit
HRV unit
Remote controller for HRV unit
Remote controller for indoor unit
Indoor unit
HRV unit
Central
remote
controller
Z
o
n
e
1
Indoor unit
HRV unit
Z
o
n
e
2
Remote controller for indoor unit
