2. Control System
2.2 Basic patterns 9
2
2.2
Interlocked operation with 2 or more group of VRV system
Purposes and functions
•
When the HRV unit is interlocked to 2 or more
group of indoor units, the HRV unit operates, if
one of indoor unit in groups is in operation. The
HRV unit can also be operated independently by
remote control for indoor unit, even if the indoor
unit is not in operation.
Cautions
1. It is not necessary to set the group number for
central control.
2. One adapter PCB for remote control should be
installed in the one of the unit connected to the
central transmission line.
(When you install an adapter PCB for remote
control in the indoor unit, select the applicable
model number of Adapter PCB to be installed.)

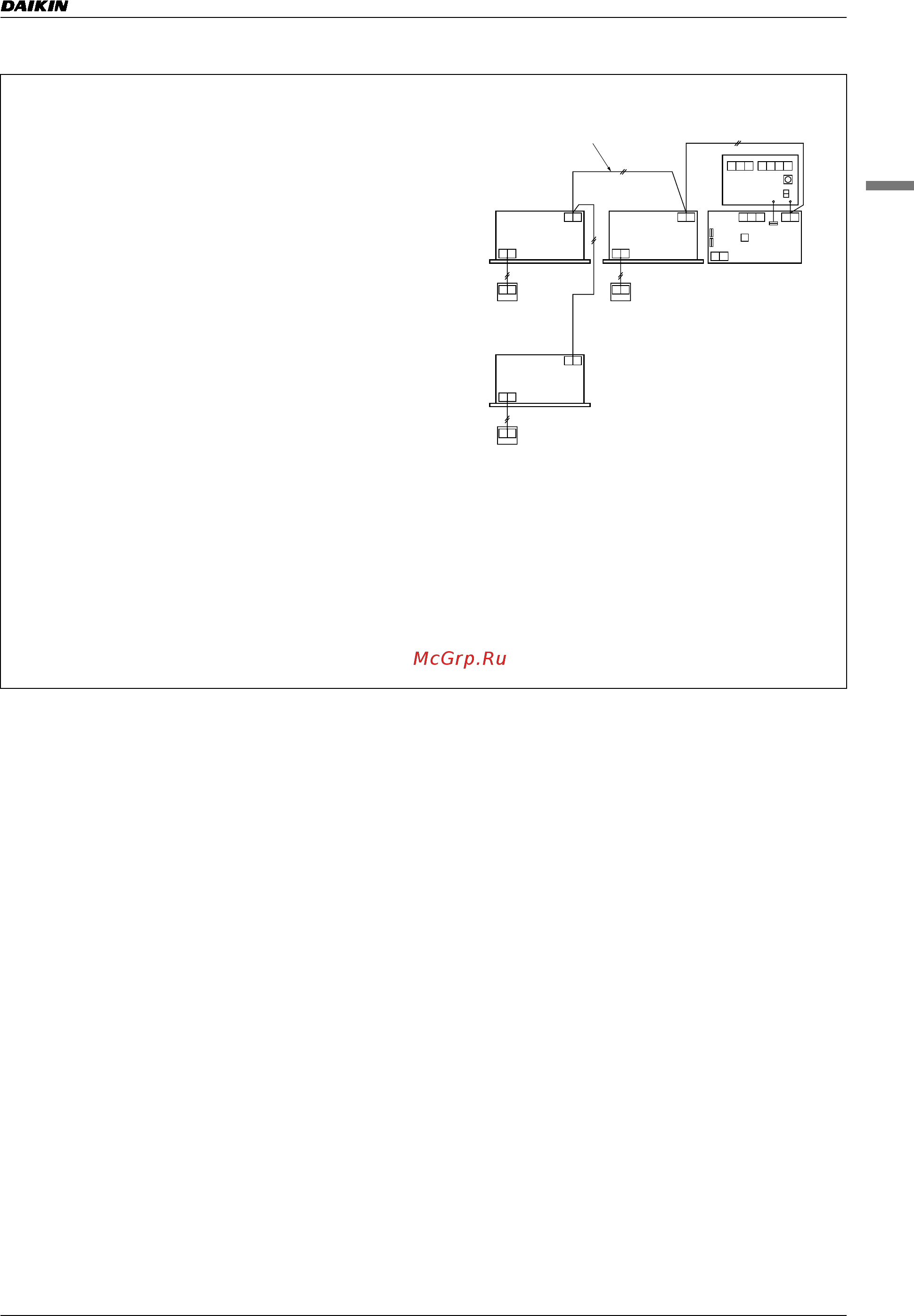

Example of control wiring
Note:
The central transmission line can be extended up to
1000 m maximum.
Switch setting for HRV unit
The initial setting by the remote control for indoor
unit or HRV unit.
Optional accessories required
•
Adapter PCB for remote control: KRP2A61
X9A
X10A
X11A
J1 J2 F1 F2
P1 P2
JC
B1 B2 BC
W1 W2 W3 W4
SS1
F1 F2
P1 P2
P1 P2
F1 F2
P1 P2
P1 P2
F1 F2
P1 P2
P1 P2
(HC0027)
HRV unit
Remote control for indoor unit
Indoor unit
Up to 1000 m maximum
Indoor unit
Indoor unit
Remote control for indoor unit
KRP2A1
(Installed in
the HRV unit)
