Daikin VAM350FA8VE [201/284] Product specification
![Daikin VAM350FA8VE [201/284] Product specification](/views2/1719133/page201/bgc9.png)
• HRV • Heat Reclaim Ventilation
197
• HRV • VKM-GAV1
2
7

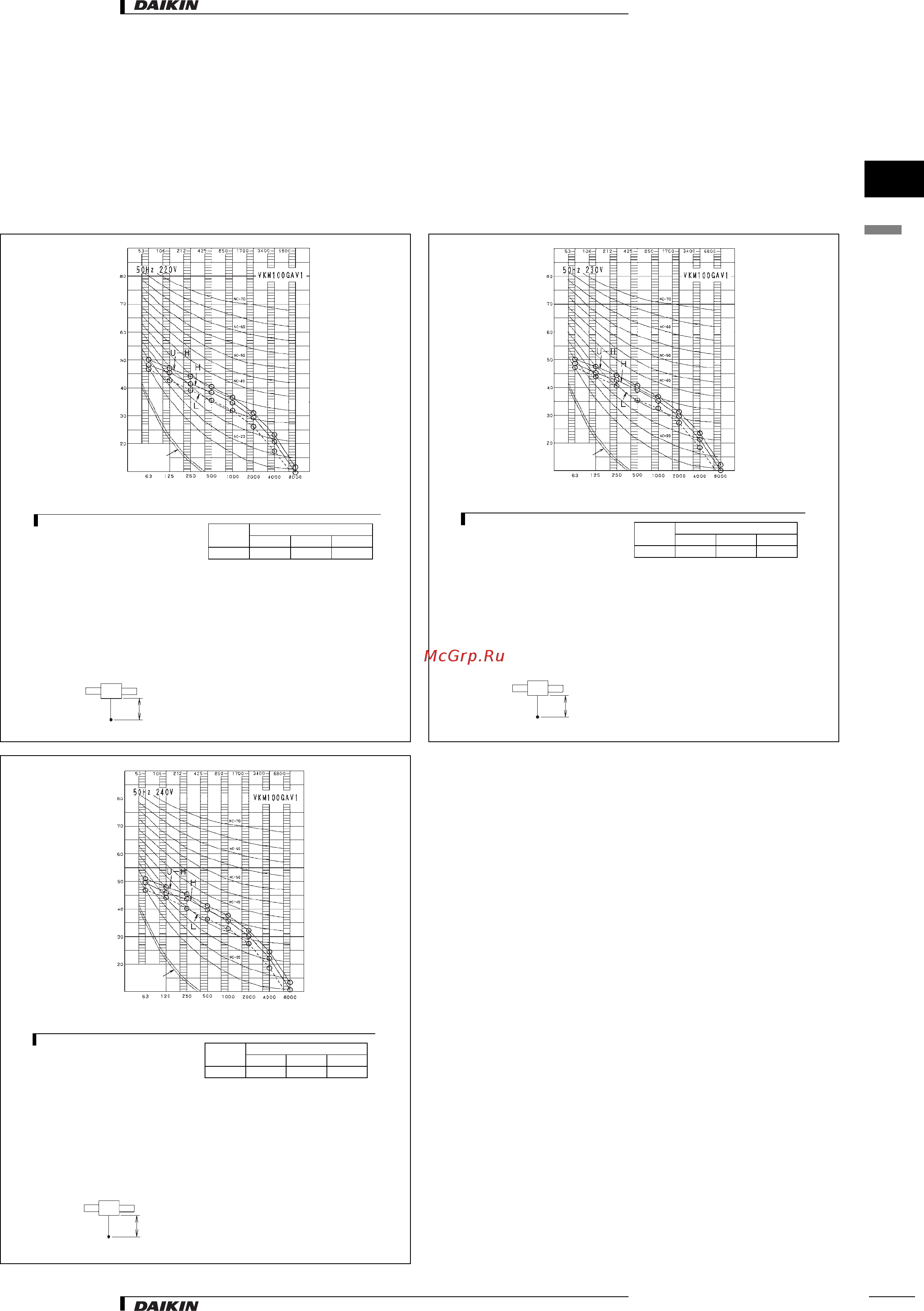

7 Product Specification
7 - 2 VKM-GAV1
7 - 2 - 6 Sound data
7 - 2 - 6 - 1 Sound pressure spectrum
4D051296
NOTES
1 Over All (dB):
(B, G, N is already rectified)
2 Operating conditons:
• Power source: Single phase 50Hz 220V
• Model: VKM100GAV1
• Ventilation mode: total heat exhange
3 Measuring place:
Remark:
• Operation noise is measured in an anechoic chamber.
• The operation noise level becomes greater than this value depending on the operation
conditions, reflected sound, and peripheral noise.
• Operation noise differs with operation and ambient conditions.
• U-H: ultra-high, H: high, L: low
4 Location of microphone
5 Operation noise differs with operation and ambient conditions.
Octave band sound pressure level dB(0dB=0.0002μbar)
Approximate
threshold hearing
for continuous
noise
VKM100GAV1
Octave band center frequency (Hz)
Scale Air flow rate
U-H H L
A 403835
Measuring point
1.5m
4D051303
NOTES
1 Over All (dB):
(B, G, N is already rectified)
2 Operating conditons:
• Power source: Single phase 50Hz 230V
• Model: VKM100GAV1
• Ventilation mode: total heat exhange
3 Measuring place:
Remark:
• Operation noise is measured in an anechoic chamber.
• The operation noise level becomes greater than this value depending on the operation
conditions, reflected sound, and peripheral noise.
• Operation noise differs with operation and ambient conditions.
• U-H: ultra-high, H: high, L: low
4 Location of microphone
5 Operation noise differs with operation and ambient conditions.
Octave band sound pressure level dB(0dB=0.0002μbar)
Approximate
threshold hearing
for continuous
noise
VKM100GAV1
Octave band center frequency (Hz)
Scale Air flow rate
U-H H L
A 40.5 38.5 36
Measuring point
1.5m
4D051309
NOTES
1 Over All (dB):
(B, G, N is already rectified)
2 Operating conditons:
• Power source: Single phase 50Hz 240V
• Model: VKM100GAV1
• Ventilation mode: total heat exhange
3 Measuring place:
Remark:
• Operation noise is measured in an anechoic chamber.
• The operation noise level becomes greater than this value depending on the operation
conditions, reflected sound, and peripheral noise.
• Operation noise differs with operation and ambient conditions.
• U-H: ultra-high, H: high, L: low
4 Location of microphone
5 Operation noise differs with operation and ambient conditions.
Octave band sound pressure level dB(0dB=0.0002μbar)
Approximate
threshold hearing
for continuous
noise
VKM100GAV1
Octave band center frequency (Hz)
Scale Air flow rate
U-H H L
A 41 39 36.5
Measuring point
1.5m
