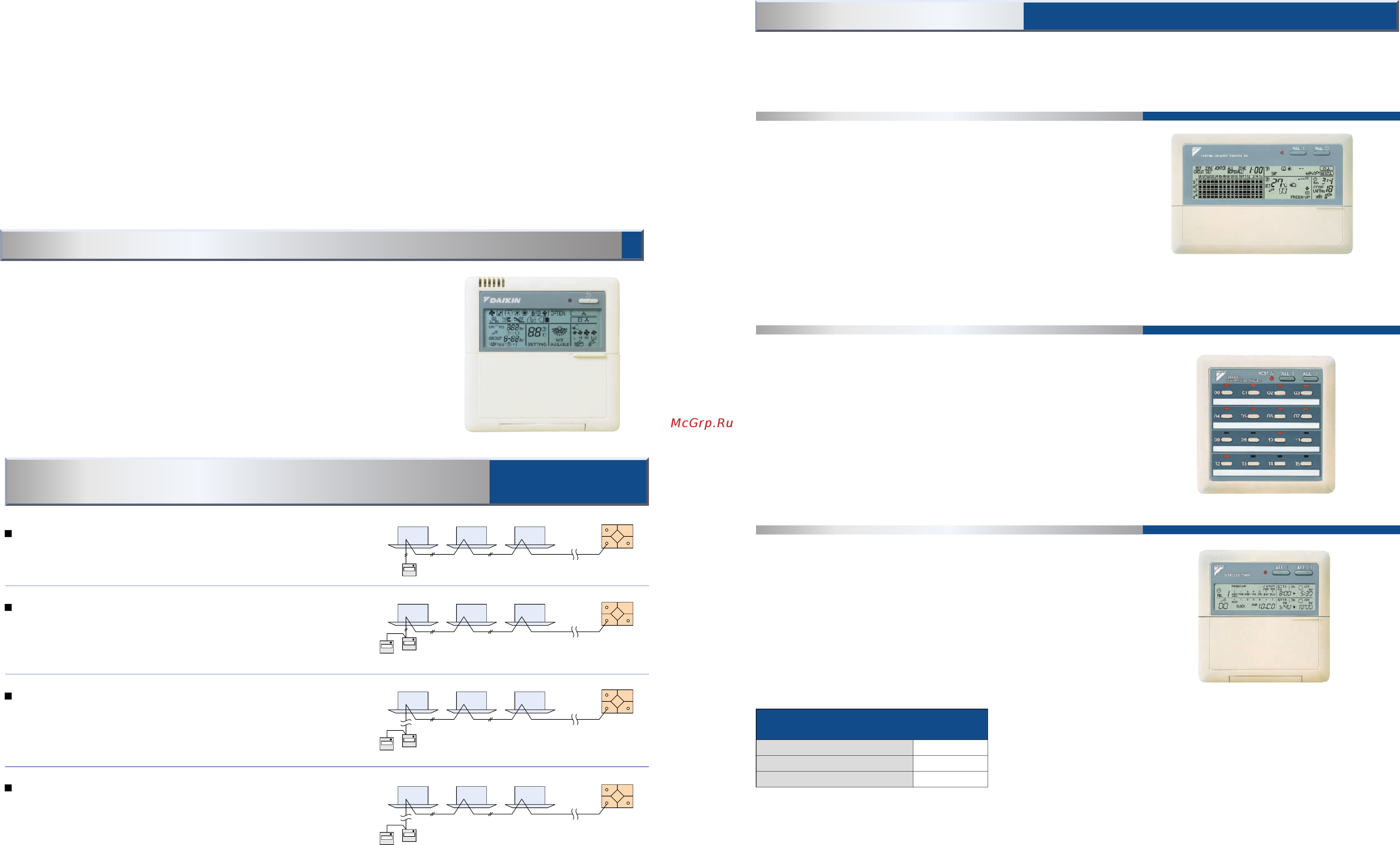

C e ntr a liz e d C o n t r ol of
A ir C onditioning a n d V e nt ila t ion
• Simultaneous ON/OFF of the HRV and indoor unit air conditioner
• Independent operation of the HRV
• Airflow rate switching (initial setting)
• Ventilation mode switching
• Self-diagnosis functions
• Filter sign display and reset
• Timer settings (simultaneous control with air conditioner)
• Pre-cool, pre-heat control settings (initial setting)
• Fresh-up mode switching (Selectable: supply rich mode, exhaust
rich mode; Initial setting)
The operation of the air conditioner using the remote controller is interlocked to the operation of
the HRV, greatly simplifying overall system operation. In addition, installation work associated
with the HRV remote controller is not necessary because operations for air conditioning and
ventilation are completely centralized on the air conditioner remote controller. Also, the use of
such a centralized remote controller allows the user to choose a wide range of control systems
that integrate air conditioning and ventilation. Furthermore, by using a variety of centralized
control equipment, the user can build a large, high-grade centralized control system.
Group Control
One air conditioner remote controller simultaneously controls up
to 16 air conditioner and HRV units.
• One unit can operate and monitor up to 64 groups (128 units) of HRV
and air conditioner units individually or in batch.
• Allows the user to divide connected HRV or air conditioner units into
zones (up to 64) and control any or all of them.
• Two units of this controller can be linked, thereby allowing centralized
control of up to 128 groups (128 units).
• Centralized control from two places is possible using two units of this
controller.
• Ventilation volume and mode can be controlled for Heat Reclaim
Ventilation.
Air conditioner
Up to 16
units
Up to 500 m
HRV
Air conditioner
remote controller
2-Remote-Controller Control
Allows control of air conditioner and HRV units from two places by
connecting two air conditioner remote controllers. (Group control
possible)
Air conditioner
Group
control
possible
Up to 500 m
HRV
Air conditioner
remote controller (No. 2)
Air conditioner
remote controller (No. 1)
Long-distance Remote Control
Operation control from afar, i.e., a distant control room, is possible
thanks to wiring of up to 500 m. (Group control and 2-remote-
cntroller control possible)
Air conditioner
Group
control
possible
HRV
Air conditioner
remote controller
2-remote-controller control possible
Up to 500 m
Control with 2 Remote Controllers
(for HRV and Air Conditioner)
System with dual use of the HRV remote controller and air
conditioner remote controller can be achieved. Changes in initial
setting functions are always possible. (Group control possible)
Air conditioner
Group
control
possible
HRV
Air conditioner
remote controller
HRV remote controller
Up to 500 m
By combining the (optional) centralized control equipment below, the user can achieve a wide range of
comprehensive centralized control systems for air conditioning and ventilation.
• One unit can turn ON/OFF up to 16 groups (128 units) of HRV and air
conditioner units individually or in a batch.
• Lamps display operation and failure status of the connected HRV and
air conditioner units.
• Up to 8 units can be linked to allow centralized control of up to 128 units.
• One unit can control the operation of up to 128 HRV and air conditioner
units on a weekly schedule.
• Can set two ON/OFF operations per day for a period of one week.
A Variety of Control Systems That Can Be Controlled
Using Only the Air Conditioner Remote Controller
A Variety of Control Systems That Can Be Controlled
Using Only the Air Conditioner Remote Controller
Centralized controller 2 units
Number of units that can
be connected per system
Unified ON/OFF controller 8 units
Schedule timer 1 unit
7 8
Operations and Control with the Air Conditioning Remote Controller
Operations and Control with the Air Conditioning Remote Controller
Centralized Control System
Centralized Control System
Centralized Controller
(DCS302CA61)
Unified ON/OFF Controller
(DCS301BA61)
Schedule Timer
(DST301BA61)
BRC1C62
