5 Preparation
Installer and user reference guide
11
VAM350~2000J7VEB
Heat reclaim ventilation unit
4P487293-1 – 2017.08
4 Guide the circuit board wire through the dedicated holes and
attach it as instructed in "6.5.2 Opening the switch box" on
page16.
5 Attach the options to the unit, as shown in the figure.
6 After the wires are connected, fasten the switch box cover.

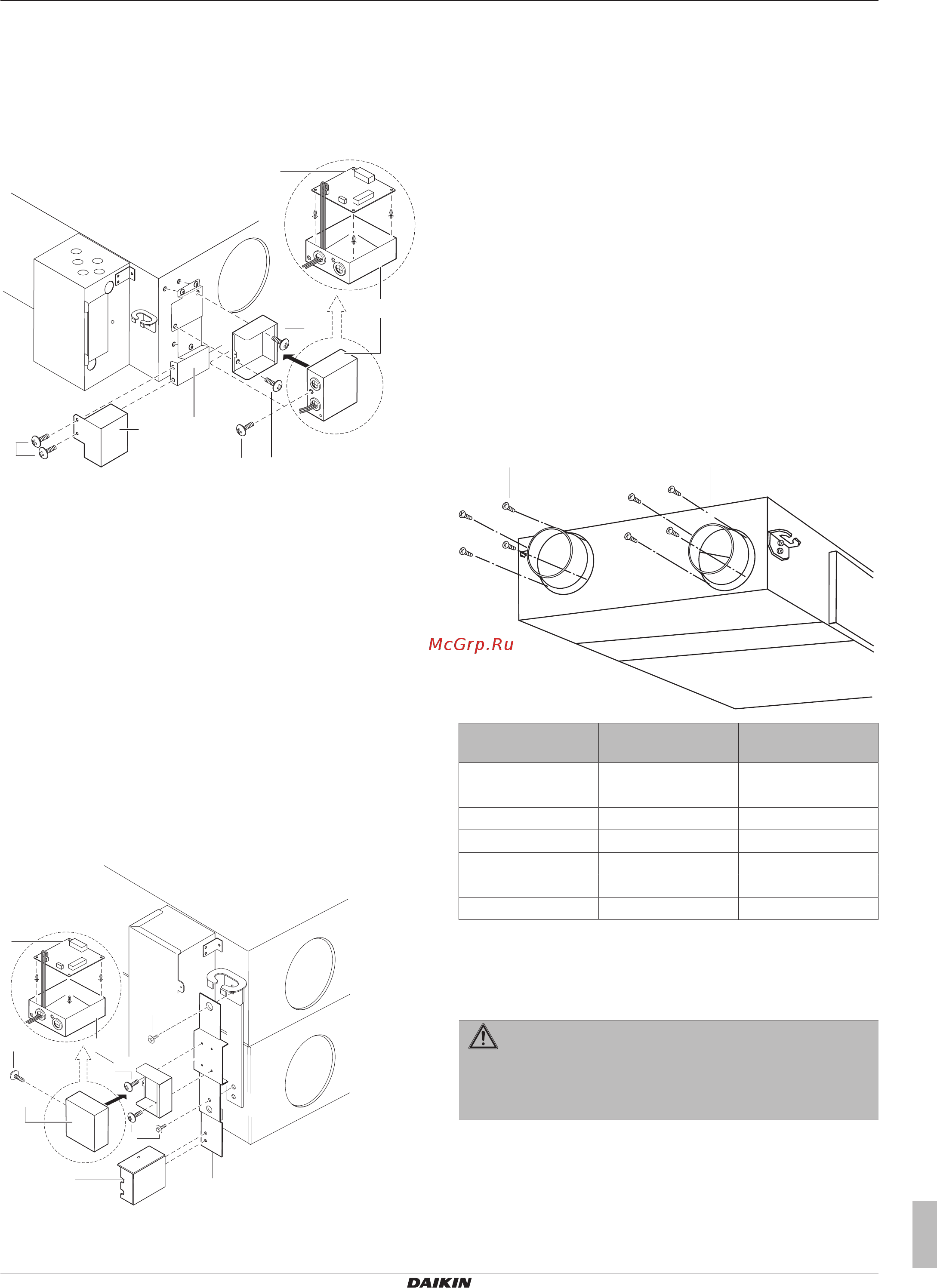

For model 650
a d
c
b
g
f
f
f
a BRP4A50A (optional accessory)
b KRP2A51 (optional accessory)
c KRP1BA101 (Fixing box)
d EKMP65VAM (Mounting plate)
f Screw
g Screw (supplied with the fixing box)
1 Remove the screws from the unit.
2 Attach the optional mounting plate (EKMP65VAM) to the unit.
3 Attach the optional adapter printed circuit board (KRP2A51) in
the fixing box (KRP1BA101).
4 Follow the installation instructions provided with the option kits
(BRP4A50A, KRP2A51 and KRP1BA101).
5 Guide the circuit board wire through the dedicated holes and
attach it as instructed in "6.5.2 Opening the switch box" on
page16.
6 Attach the options to the optional mounting plate, as shown in
the figure.
7 After the wires are connected, fasten the switch box cover.
For models 1500+2000
a
e
f
f
f
g
b
b + c
c
a BRP4A50A (optional accessory)
b KRP2A51 (optional accessory)
c KRP1BA101 (Fixing box)
e EKMPVAM (Mounting plate)
f Screw
g Screw (supplied with the fixing box)
1 Remove the screws that are in the middle of the casing fixing
plate.
2 Attach the optional mounting plate (EKMPVAM) on top of the
casing fixing plate.
3 Attach the optional adapter printed circuit board (KRP2A51) in
the fixing box (KRP1BA101).
4 Follow the installation instructions provided with the option kits
(BRP4A50A, KRP2A51 and KRP1BA101).
5 Guide the circuit board wire through the dedicated holes and
attach it as instructed in "6.5.2 Opening the switch box" on
page16.
6 Attach the options to the optional mounting plate, as shown in
the figure.
7 After the wires are connected, fasten the switch box cover.
5.3.2 To install the duct joints
1 Position the duct joints over the duct holes.
2 Secure the duct joints with the provided screws (accessories).
1
2
Models Number of provided
screws
Number of provided
duct joints
VAM350 16 4× Ø200mm
VAM500 16 4× Ø200mm
VAM650 24 4× Ø250mm
VAM800 24 4× Ø250mm
VAM1000 24 4× Ø250mm
VAM1500 48 8× Ø250mm
VAM2000 48 8× Ø250mm
5.4 Preparing the electrical wiring
5.4.1 Wiring connection
WARNING
A main switch or other means for disconnection, having a
contact separation in all poles, MUST be incorporated in
the fixed wiring in accordance with the applicable
legislation.
You can use a single switch to supply power to units on the same
system. However, branch switches and branch circuit breakers
MUST be selected carefully.
Fit the power supply wiring of each unit with a switch and fuse as
shown in the drawing below.
