3 About the box
Installer and user reference guide
8
VAM350~2000J7VEB
Heat reclaim ventilation unit
4P487293-1 – 2017.08

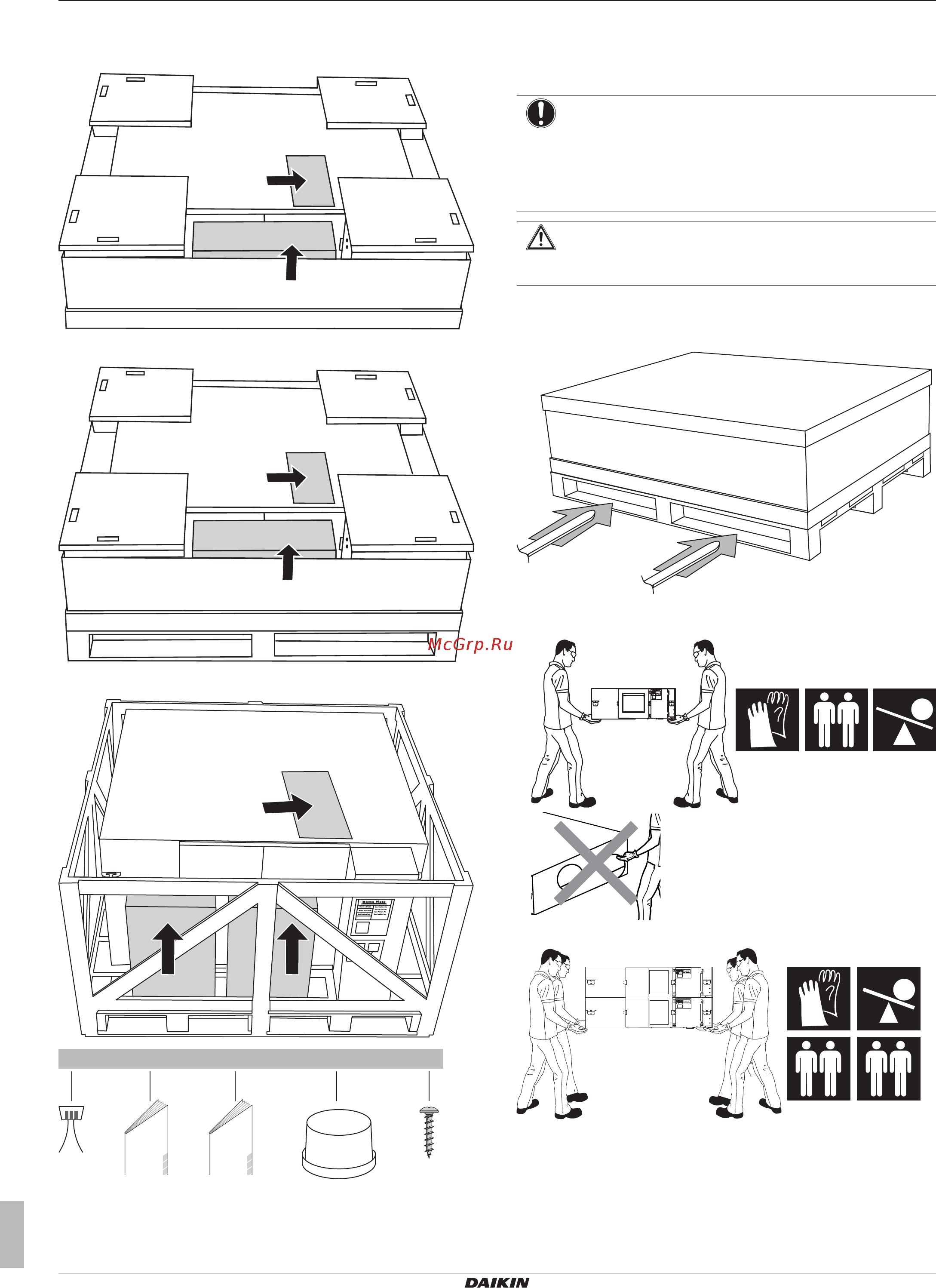

3.2.2 To remove the accessories
VAM350+VAM500
VAM650~1000
VAM1500+VAM2000
dcba e
a Wire
b General safety precautions
c Installation and operation manual
d Duct joints, VAM350~1000 4×, VAM1500+VAM2000 8×
e Screws, VAM350+VAM500 16×, VAM650~1000 24×,
VAM1500+VAM2000 48×
3.2.3 To handle the heat reclaim ventilation unit
NOTICE
When removing the heat reclaim ventilation unit from the
packing, do NOT place the suction or discharge side of the
unit on the floor. Possible consequence: Deformation of
the suction or discharge openings and damaged expanded
polystyrene.
CAUTION
To avoid injury, do NOT touch the air inlet, the air outlet, or
the fans of the unit.
▪ With packing.
In case of VAM350+VAM500, do NOT use slings or a forklift.
In case of VAM650~2000, use a forklift.
▪ Without packing.
Carry VAM350~1000 slowly as shown:
Name Plate
Carry VAM1500+VAM2000 slowly as shown:
