03

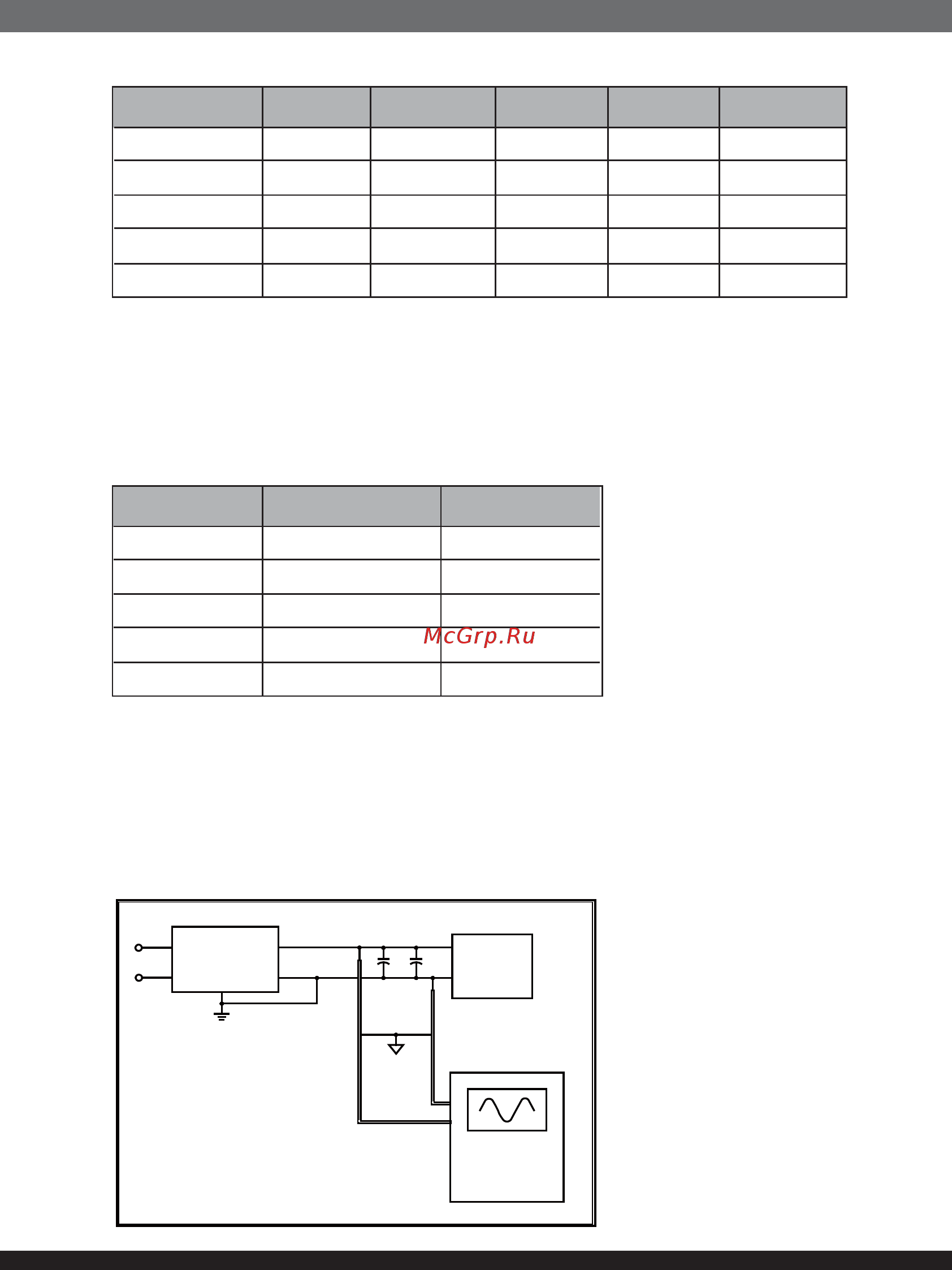

2.3 Output Ripple
2.3.1 Ripple regulation
2.3.3 Ripple voltage test circuit
2.3.2 Definition
2.2.3 750W Load range
Parameter
+3.3V
+5V
+12V
-12V
+5VSb
Min
0
0
0
0
0
Nom.
-
-
-
-
-
Max
20
20
62
0.3
2.5
Peak Unit
Amps
Amps
Amps
Amps
Amps
Parameter
+3.3V
+5V
+12V
-12V
+5VSb
Ripple&Noise
50
50
120
120
50
Unit
mVp-p
mVp-p
mVp-p
mVp-p
mVp-p
Notes:
( 1 ) The maximum combined load on +3.3V and +5V outputs shall not exceed 100W.
( 2 ) The +12V maximum load shall not exceed 744W.
( 3 ) The maximum continuous average DC outputs power shall not exceed 750W.
( 4 ) Peak DC output power should not exceed 800W for 12 second.
The ripple voltage of the outputs shall be measured at the pins of the output connector when
terminated in the load impedance specified in figure1.Ripple and noise are measured at the
connectors with a 0.1uF ceramic capacitor and a 10uF electrolytic capacitor to simulate system
loading. Ripple shall be measured under any condition of line voltage, output load, line frequency,
operation temperature.
AC Hot
AC Neutral
Power Supply
V out
V return
10uF 0.1uF
Load
Scope
AC Ground
