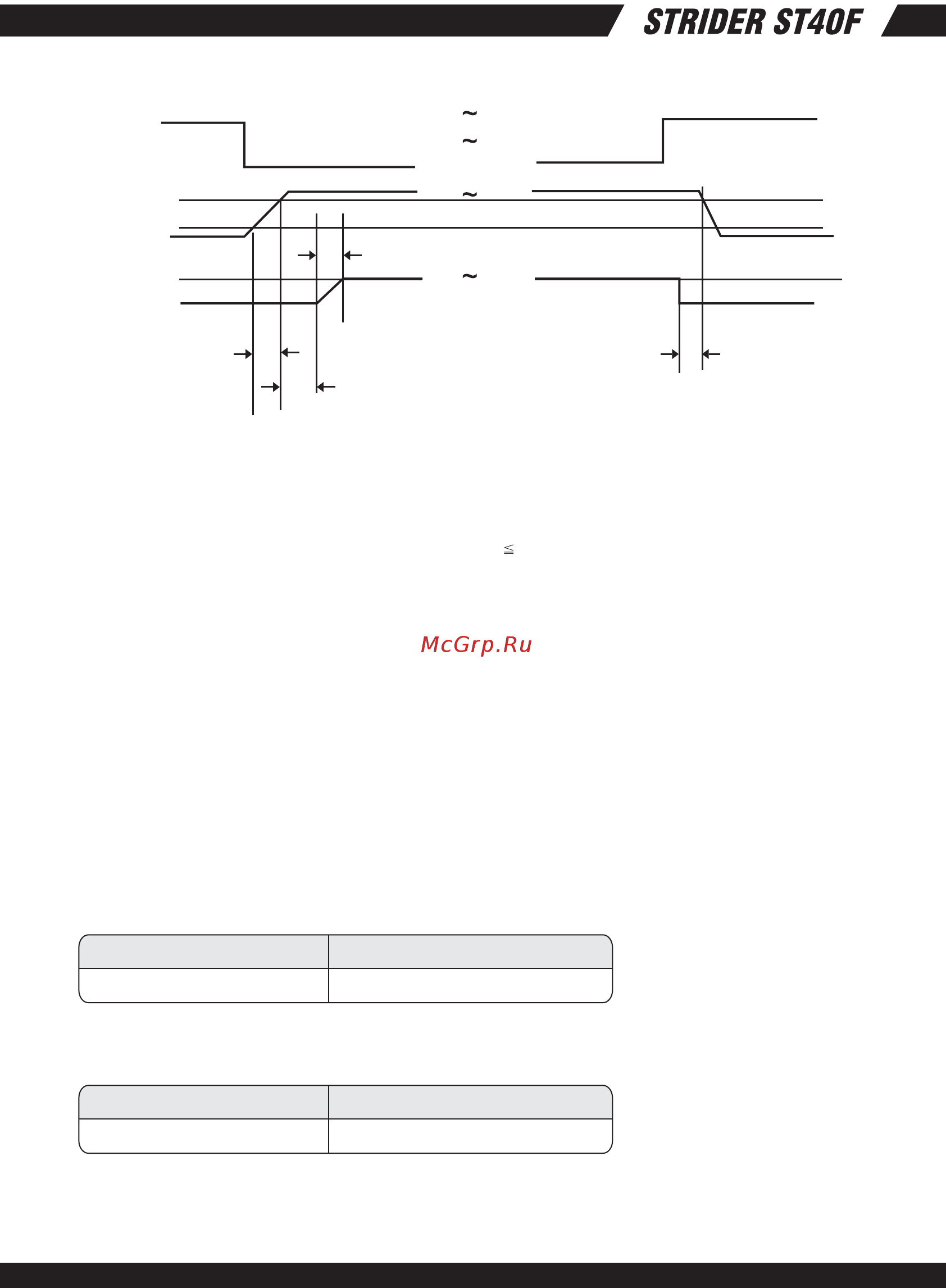

06
PS-ON
95%
10%
T2
T5
T3
T4
DC OUTPUT
P.G. SIGNAL
Figure 1
T2: RISETIME <20ms
T3: POWER GOOD DELAY TIME 100mS-500mS
T4: POWER FAIL DELAY TIME > 1ms
T5: POWER GOOD RISETIME 10ms
5. FAN NOISE REQUIREMENTS
5.1 The subject power supply is cooled by a self-contained, 120mm, 12VDC fan.
6. ENVIRONMENTAL REQUIREMENTS
The power supply will be compliant with each item in this specification for the following
Environmental conditions.
6.1 TEMPERATURE RANGE
+10 to +50 deg. C
-20 to +80 deg. C
Operating
Storage
6.2 HUMIDITY
5 -95% RH, Non-condensing
5 -95% RH, Non-condensing
Operating
Storage
