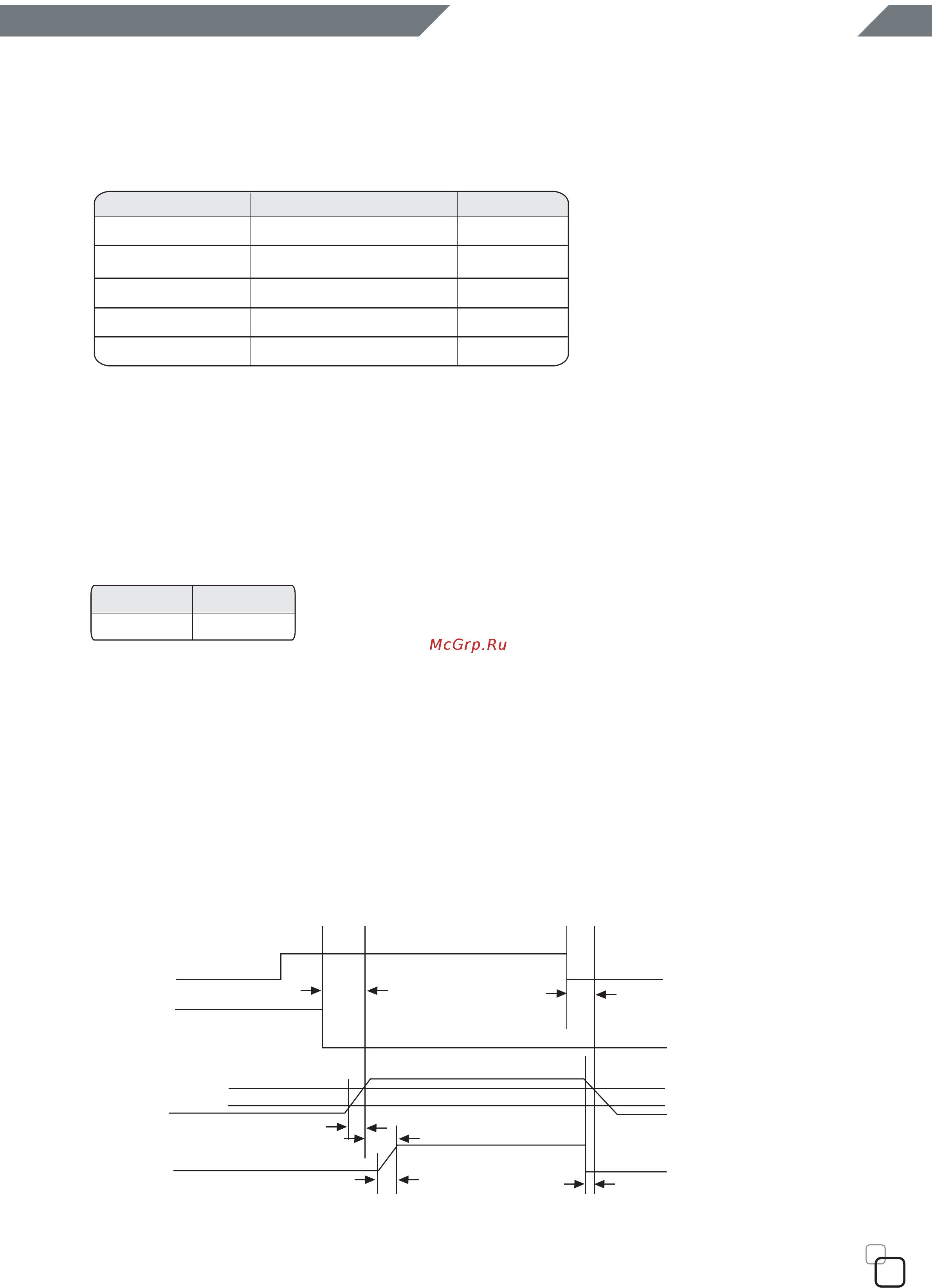

![SilverStone ST50F-230 [5/12] St50f 230 4](/views2/1720265/page5/bg5.png)
2.5 DC Output Voltage Ripple and Noise
Note :
(1) The measurements should be made by crossing a 10uF/ electrolytic and a 0.1uF
ceramic disk capacitors at each output with measuring bandwidth from DC to 20 MHz. If
ambient temperature is under 20 C or over 30 C, the
AC input should be normal input.
2.6 Total Output Power
2.7 Remote ON/OFF control
The power supply outputs shall be enabled with an active-low TTL signal.
When TTL signal is low , the DC outputs are to be enabled.
When TTL signal is high or open circuited, the DC outputs are to be disabled.
Electronic means or a mechanical switch may activate the TTL signal.
After the TTL signal is active high, must wait for 3 seconds before active low again.
2.8 Power Sequence
UnitsRipple & Noise MaxOutput Voltage
50
+5V
mV
+12V1~2
-12V
+3.3V
+5Vsb
120
120
50
50
mV
mV
mV
mV
UnitsMAX
500
Watts
T1
T2
T5
On
Off
T3
T4
T6
AC IN
PS-ON
95%
10%
+12V
+5V
+3.3V
O/P’s
PG#
ᑻ
ᑻ
STRIDER SST-ST50F-230
04
