SiBE041134EB Indoor Unit

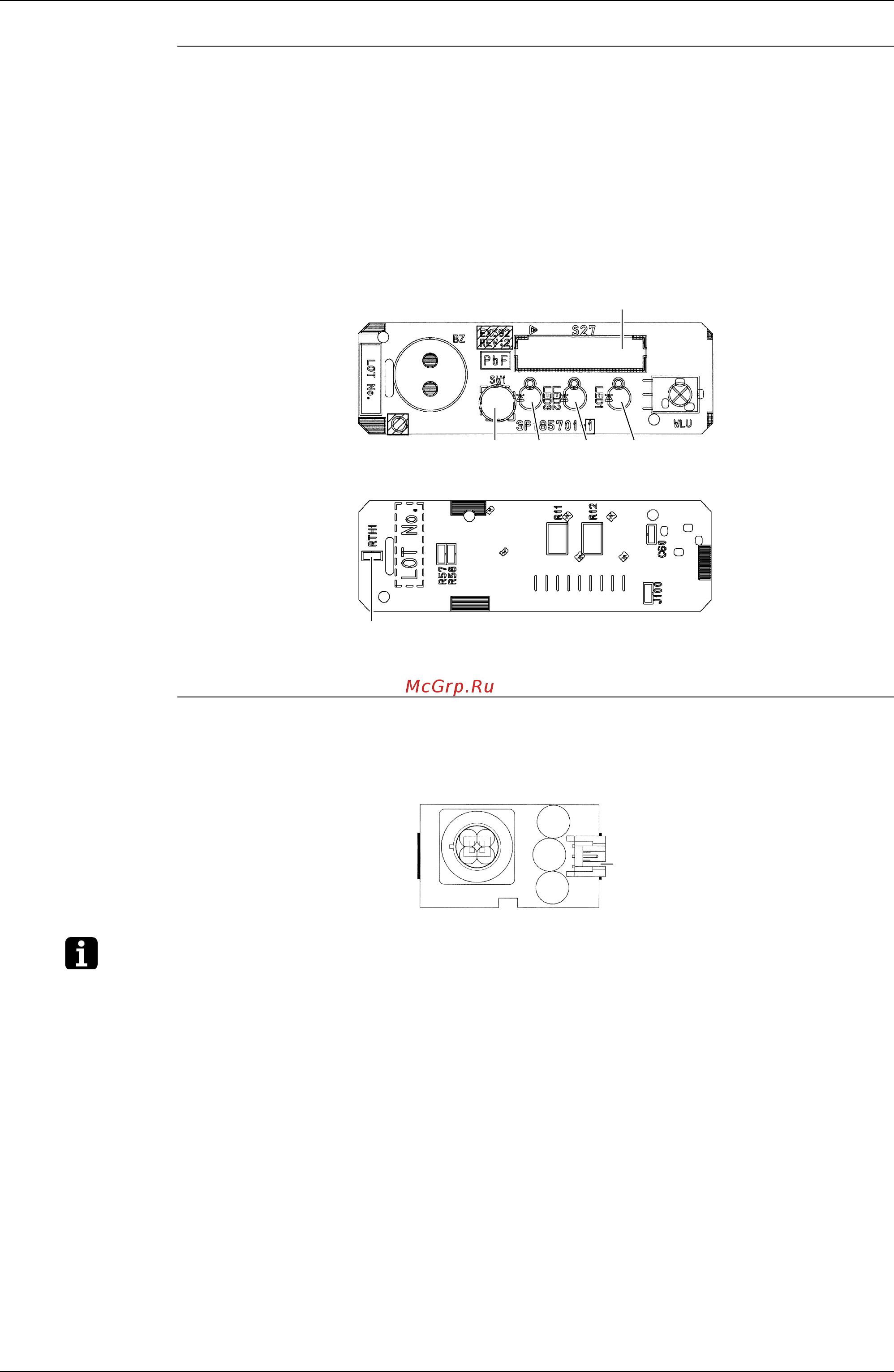

Printed Circuit Board Connector Wiring Diagram 13
Display PCB
(PCB2)
INTELLIGENT
EYE Sensor PCB
(PCB3)
Note: The symbols in the parenthesis are the names on the appropriate wiring diagram.
1) S27 Connector for control PCB
2) SW1 (S1W) Forced cooling operation ON/OFF button
∗ Refer to page 107 for detail.
3) LED1 (H1P) LED for operation (green)
4) LED2 (H2P) LED for timer (yellow)
5) LED3 (H3P) LED for INTELLIGENT EYE (green)
6) RTH1 (R1T) Room temperature thermistor
S27
SW1
(Solder side)
LED2LED3 LED1
RTH1
3P185701-3
1) S36 Connector for control PCB
S36
3P296737-1
