3 ■English

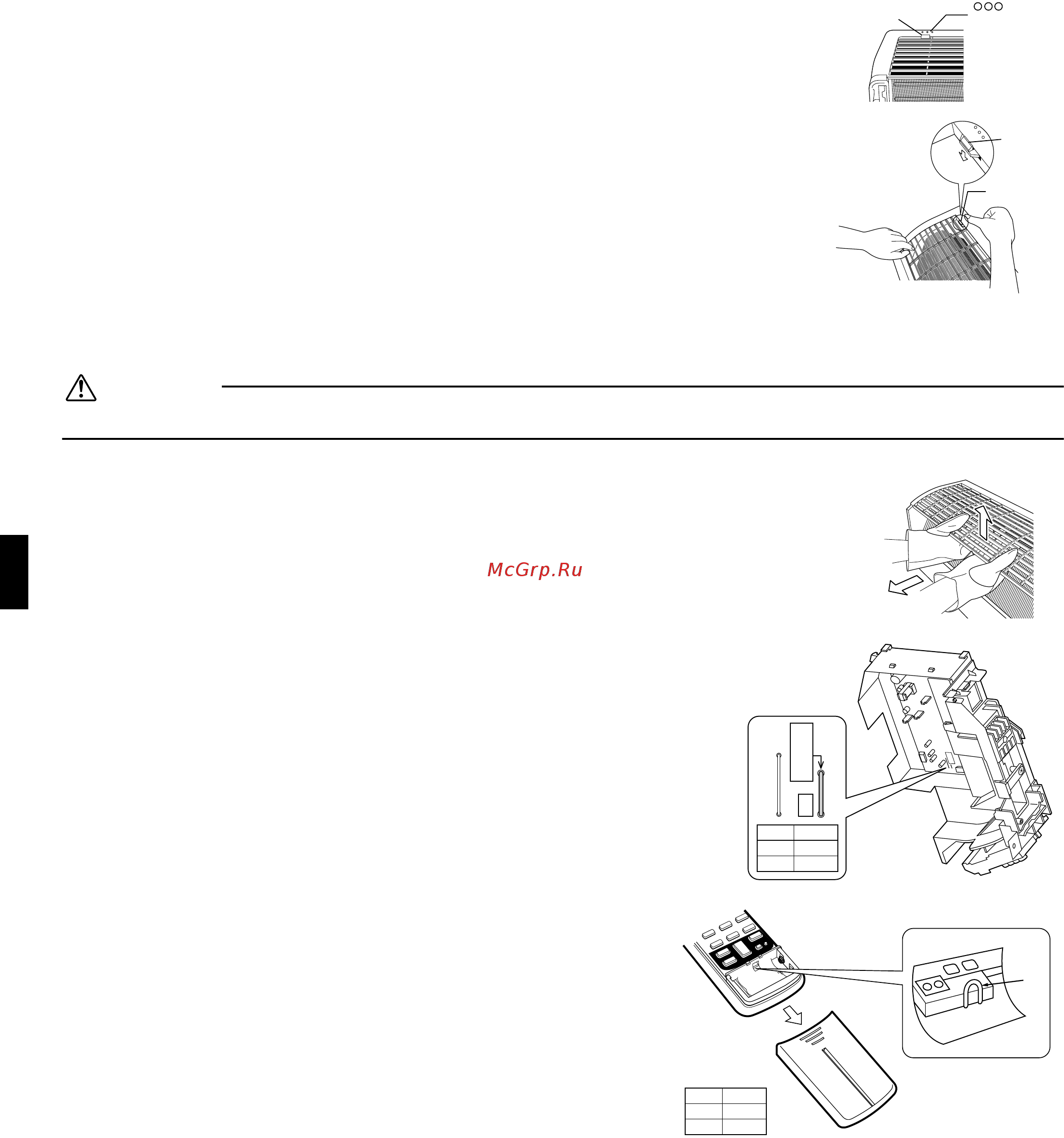

Installation Tips
2.
Removing and installing front grille.
• Removal method
1) Remove front panel to remove the air filter.
2) Remove the front grille. (3 screws)
3) In front of the {{{ mark of the front grille, there are 3 upper hooks. Lightly pull the
front grille toward you with one hand, and push down on the hooks with the fingers
of your other hand.
When there is no work space because the unit is close to ceiling
CAUTION
Be sure to wear protection gloves.
Place both hands under the center of the front grille, and while pushing up, pull it toward you.
• Installation method
1) Install the front grille and firmly engage the upper hooks (3 locations).
2) Install 3 screws of the front grille.
3) Install the air filter and then mount the front panel.
3.
How to set the different addresses.
When two indoor units are installed in one room, the two wireless remote con-
trollers can be set for different addresses.
1) In the same way as when connecting to an HA system, remove the metal
plate electrical wiring cover.
2) Cut the address jumper (JA).
3) Cut the address jumper (J4).
mark area
(3 locations)
Upper hook
Lightly pull the front
grille toward you with
one hand, and push
down on the hooks with
the fingers of your other
hand. (3 locations)
Push
down.
Upper hook
Upper hook
1) Push up.
2) Pull toward you.
Address
JA
Address
JA
EXIST
1
CUT 2
Address
J4
EXIST
1
CUT 2
J4
