• Split Sky Air • Indoor Units
7
• Indoor Units • R-410A • FVXS-FV1B

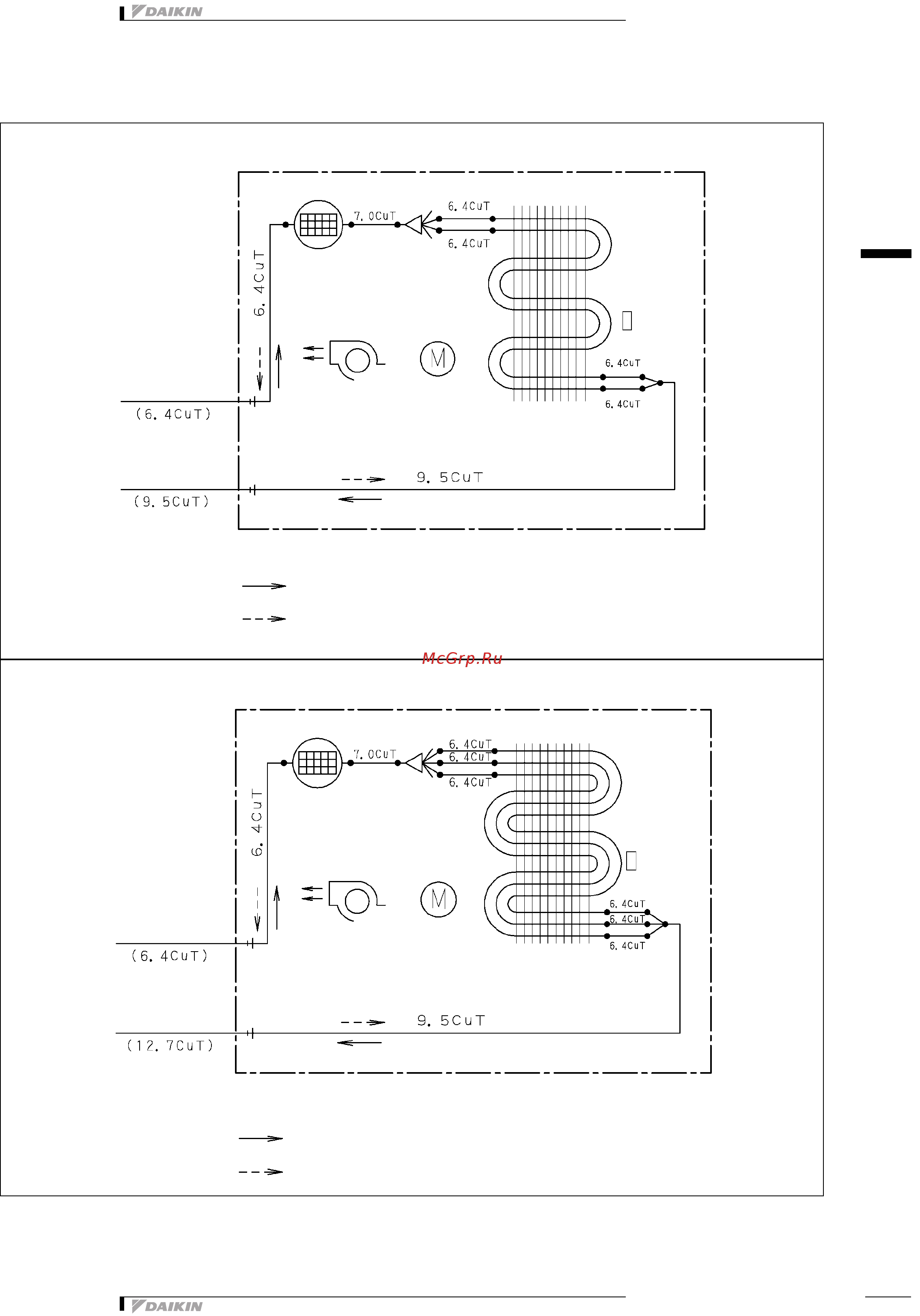

4 Piping diagram
4D056137
FVXS25-35F
Indoor unit
Heat exchanger
Fan motor
Field piping
Field piping
Refrigerant flow
Cooling
Heating
Turbo fan
Thermistor on
heat exchanger
Muffler assy
4D056138
FVXS50F
Indoor unit
Heat exchanger
Fan motor
Field piping
Field piping
Refrigerant flow
Cooling
Heating
Turbo fan
Thermistor on
heat exchanger
Muffler assy
