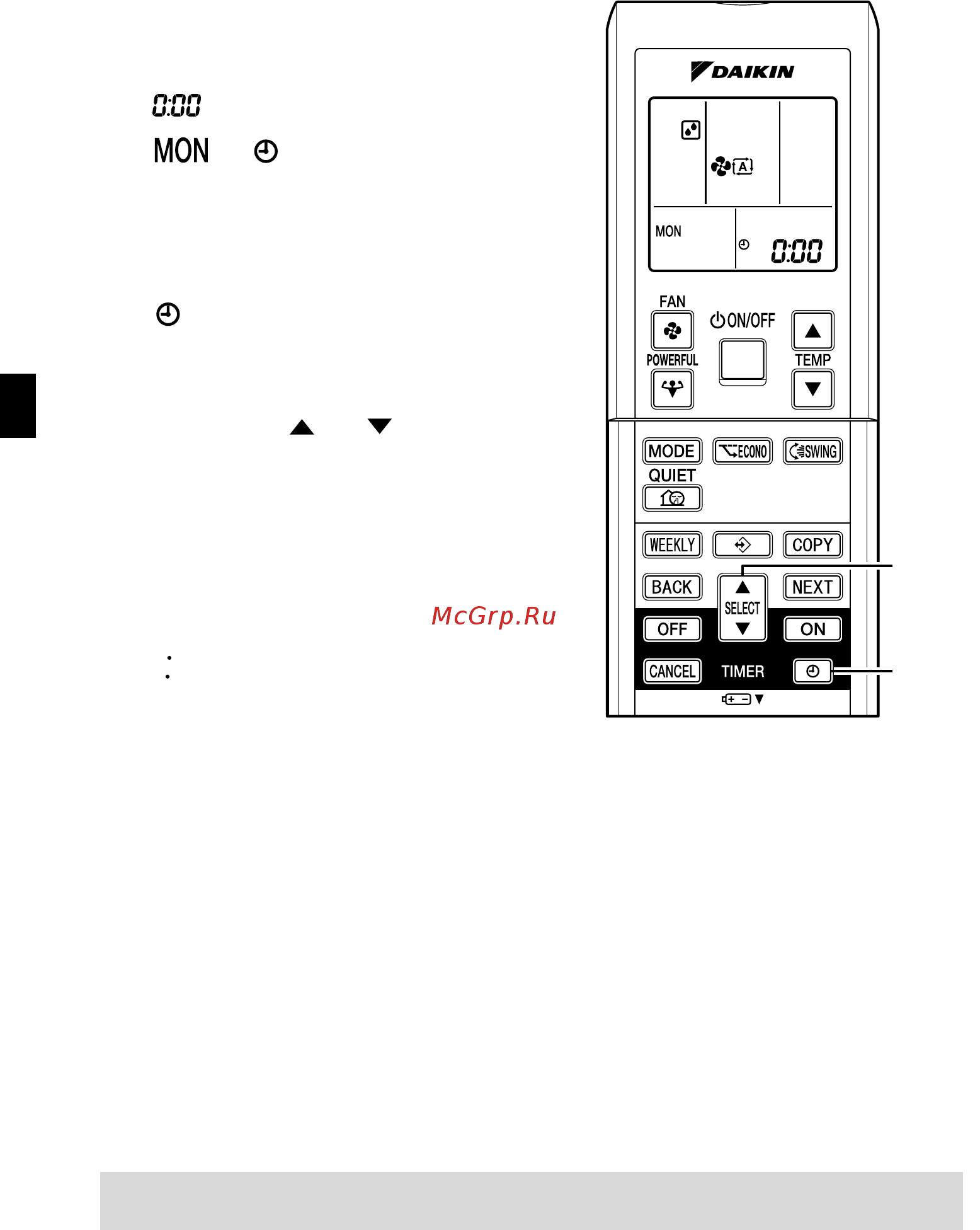

Preparation Before Operation

■ To set the clock

1. Press “CLOCK button”.

is displayed.

and blinks.

2. Press “SELECT button” to set

the current day of the week.

3. Press “CLOCK button”.

blinks.

4. Press “SELECT button” to set

the clock to the present time.

Holding down “ ” or “ ” button

rapidly increases or decreases the time

display.

5. Press “CLOCK button”.

Always point the remote controller at the

indoor unit when pushing the buttons

when setting the indoor unit’s internal

clock.

blinks.

NOTE

• If the indoor unit’s internal clock is not set to the correct time, the WEEKLY TIMER will not

operate punctually.

1, 3, 5

2, 4
