8
• Split Sky Air • Indoor Units
13
• Indoor Units • R410A • FLXS-BAVMB
8 Sound data

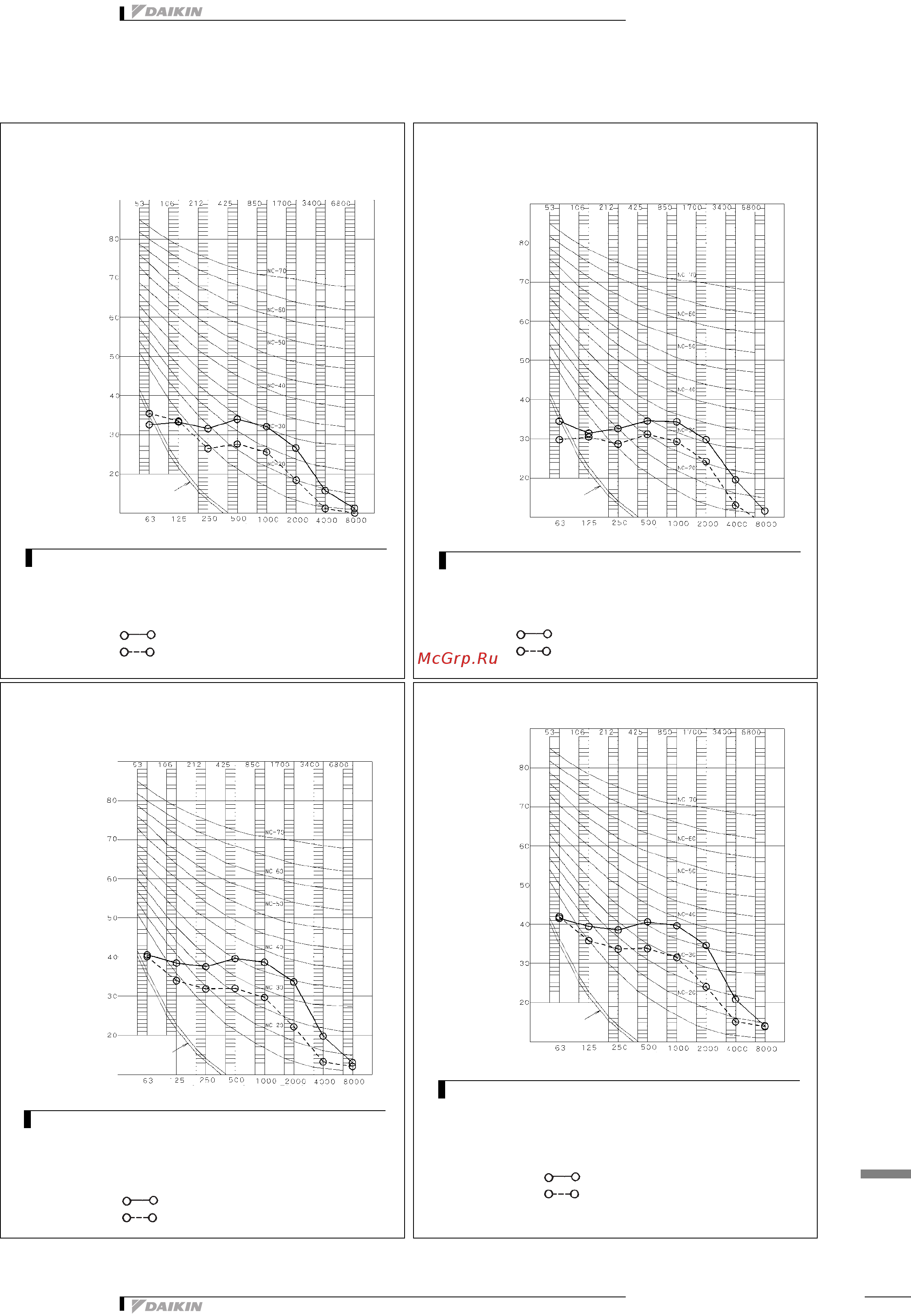

8 - 2 Sound pressure spectrum
3D035245A
Octave band sound pressure level
dB:(0dB = 0.0002 µ bar)
Octave band center frequency (Hz)
FLXS25B (Heating)
approximate
threshold hearing
for continuous noise
NOTES
1 Operation sound is measured in an anechoic chamber.
2 Operation sound differs with operation and ambient conditions.
Legend
50/60Hz 220-240/220-230V(H)
50/60Hz 220-240/220-230V(L)
3D035246A
FLXS35B (Heating)
Octave band sound pressure level
dB:(0dB = 0.0002 µ bar)
approximate
threshold hearing
for continuous noise
Octave band center frequency (Hz)
NOTES
1 Operation sound is measured in an anechoic chamber.
2 Operation sound differs with operation and ambient conditions.
Legend
50/60Hz 220-240/220-230V(H)
50/60Hz 220-240/220-230V(L)
3D035247A
Octave band sound pressure level
dB:(0dB = 0.0002 µ bar)
Octave band center frequency (Hz)
FLXS50B (Heating)
approximate
threshold hearing
for continuous noise
NOTES
1 Operation sound is measured in an anechoic chamber.
2 Operation sound differs with operation and ambient conditions.
Legend
50/60Hz 220-240/220-230V(H)
50/60Hz 220-240/220-230V(L)
3D035248A
FLXS60B (Heating)
Octave band sound pressure level
dB:(0dB = 0.0002 µ bar)
approximate
threshold hearing
for continuous noise
Octave band center frequency (Hz)
NOTES
1 Operation sound is measured in an anechoic chamber.
2 Operation sound differs with operation and ambient conditions.
Legend
50/60Hz 220-240/220-230V(H)
50/60Hz 220-240/220-230V(L)
