Daikin FLXS25BAVMB [7/17] Control systems

• Indoor Units • R410A • FLXS-BAVMB

• Split Sky Air • Indoor Units

4 Control systems

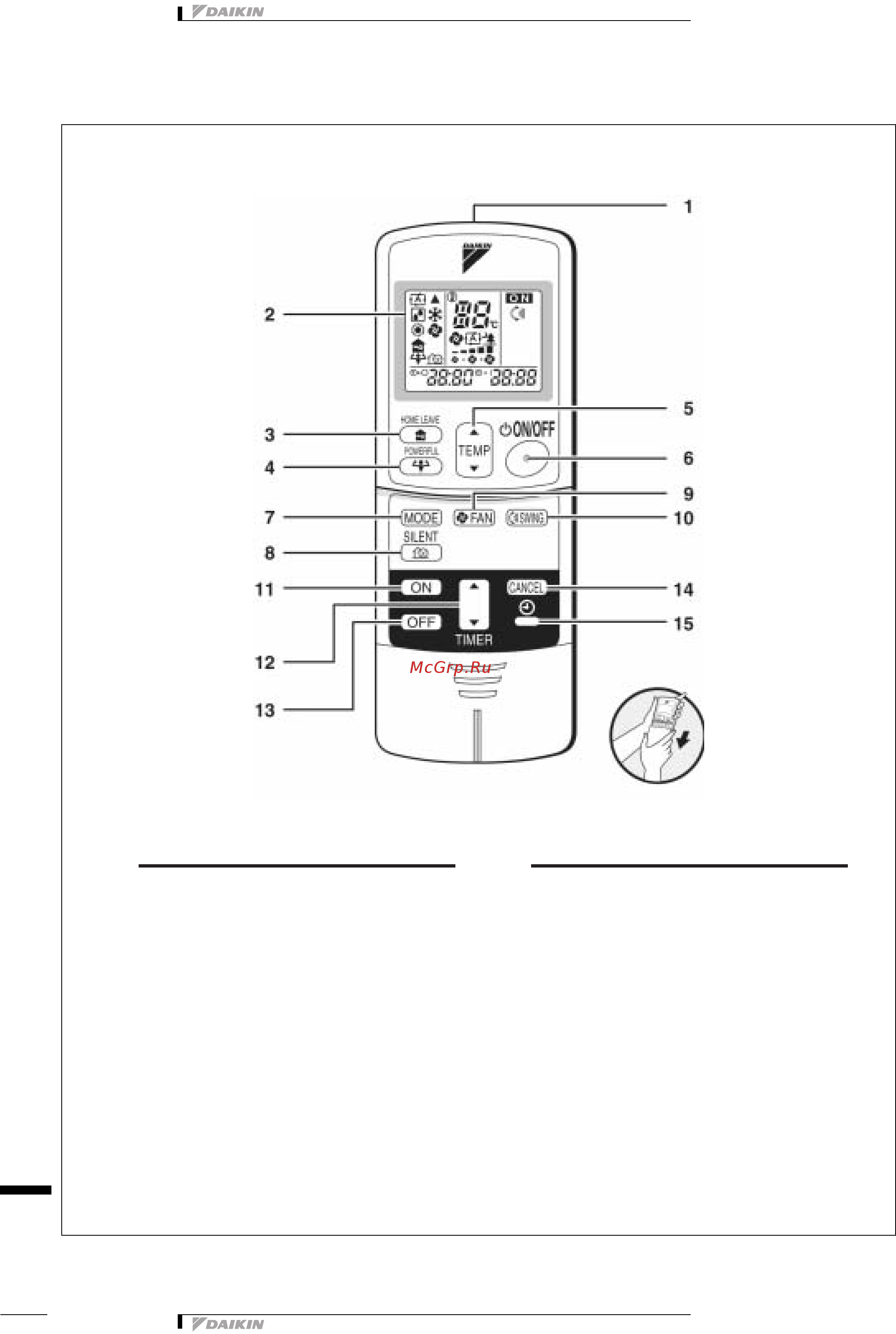

FLK/XS -B

<ARC433A5, A6>

1 Signal transmitter:

• It sends signals to the indoor unit.

2 Display:

• It displays the current settings. (In this illustration, each

section is shown with all its displays ON for the purpose of

explanation.)

3 HOME LEAVE button:

for HOME LEAVE operation

4 POWERFUL button:

for POWERFUL operation

5 TEMPERATURE adjustment buttons:

• It changes the temperature setting

6 ON/OFF button:

• Press this button once to start operation. Press once again

to stop it.

7 MODE selector button:

• It selects the operation mode

(Auto , / Dry I / Cool u / Heat w / Fan B)

8 OUTDOOR UNIT SILENT button:

SILENT operation

9 FAN setting button:

• It selects the air flow rate setting.

10 SWING button

11 ON TIMER button

12 OFF TIMER button

13 TIMER setting button:

• It changes the time setting

14 TIMER CANCEL button:

It cancels the timer setting.

15 CLOCK button
