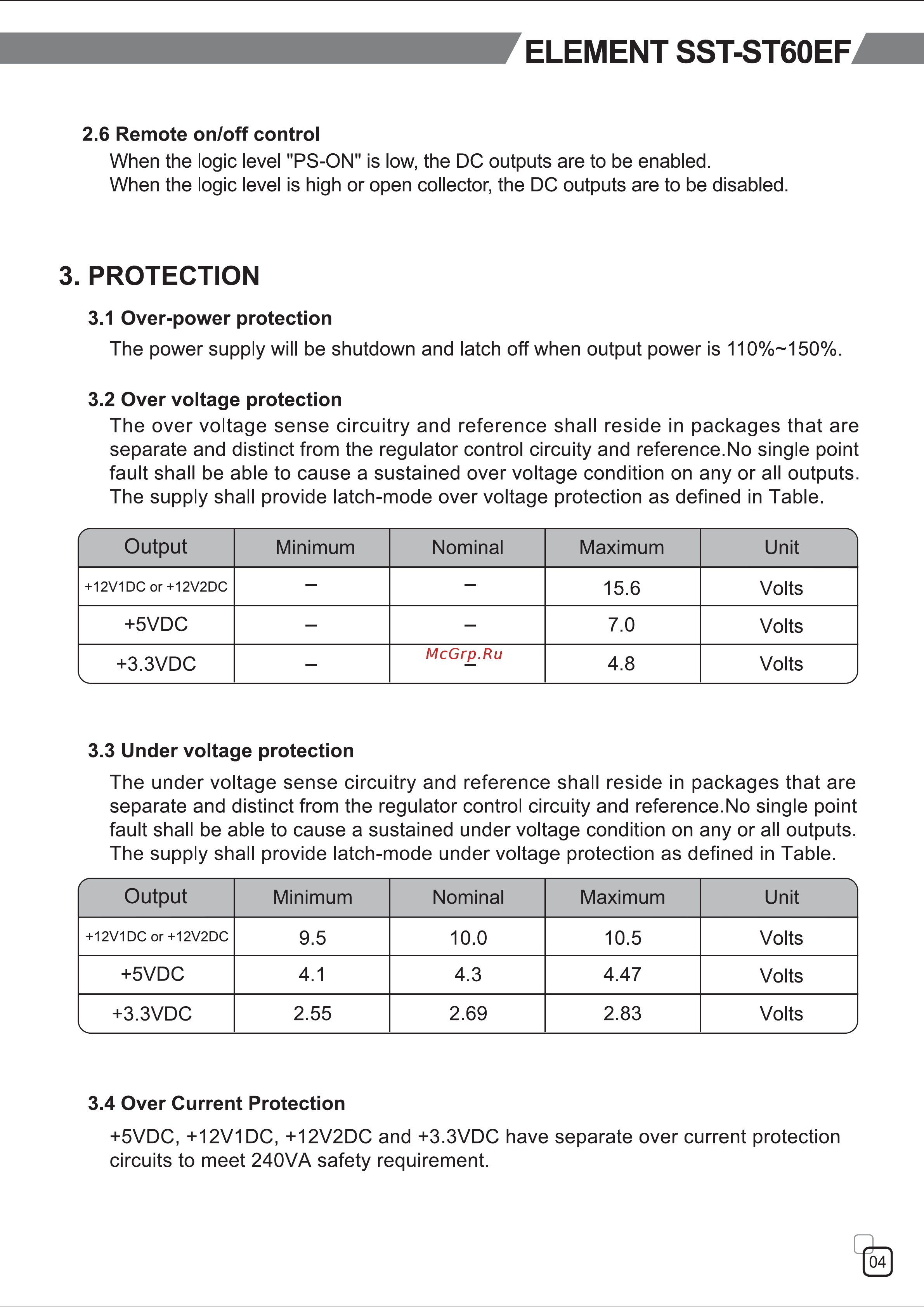

ELEMENT SST ST60EF 2 6 Remote on off control When the logic level PS ON is low the DC outputs are to be enabled When the logic level is high or open collector the DC outputs are to be disabled 3 PROTECTION 3 1 Over power protection The power supply will be shutdown and latch off when output power is 110 150 3 2 Over voltage protection The over voltage sense circuitry and reference shall reside in packages that are separate and distinct from the regulator control circuity and reference No single point fault shall be able to cause a sustained over voltage condition on any or all outputs The supply shall provide latch mode over voltage protection as defined in Table Output Minimum Nominal Maximum Unit 12V1DC or 12V2DC 15 6 Volts 5VDC 7 0 Volts 3 3VDC 4 8 Volts _ 3 3 Under voltage protection The under voltage sense circuitry and reference shall reside in packages that are separate and distinct from the regulator control circuity and reference No single point fault shall be able to cause a sustained under voltage condition on any or all outputs The supply shall provide latch mode under voltage protection as defined in Table Output Minimum Nominal Maximum Unit 12V1DC or 12V2DC 9 5 10 0 10 5 Volts 5VDC 4 1 4 3 4 47 Volts 3 3VDC 2 55 2 69 2 83 Volts 3 4 Over Current Protection 5VDC 12V1DC 12V2DC and 3 3VDC have separate over current protection circuits to meet 240VA safety requirement
