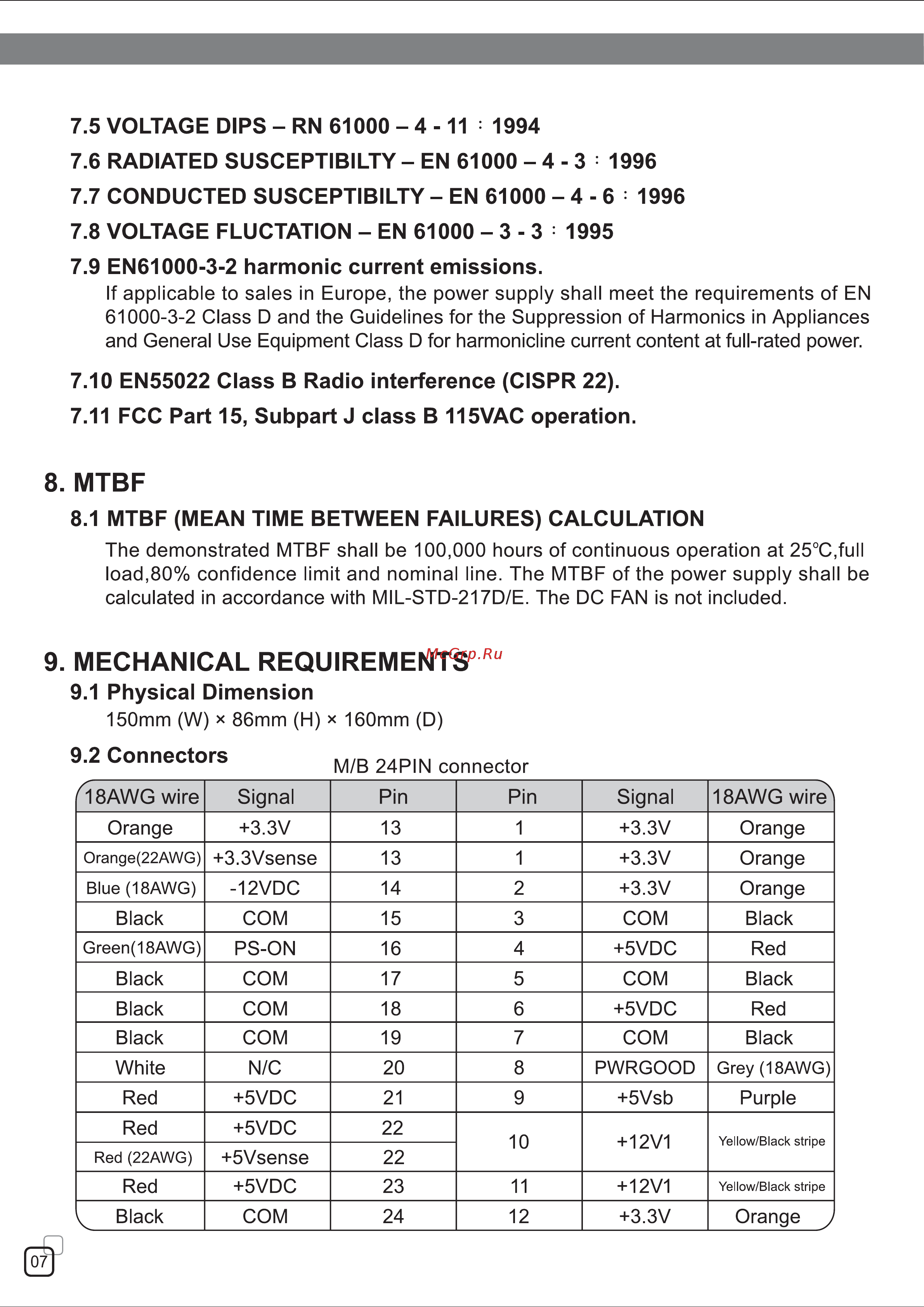

7 5 VOLTAGE DIPS RN 61000 4 11 1994 7 6 RADIATED SUSCEPTIBILTY EN 61000 4 3 1996 7 7 CONDUCTED SUSCEPTIBILTY EN 61000 4 6 1996 7 8 VOLTAGE FLUCTATION EN 61000 3 3 1995 7 9 EN61000 3 2 harmonic current emissions If applicable to sales in Europe the power supply shall meet the requirements of EN 61000 3 2 Class D and the Guidelines for the Suppression of Harmonics in Appliances and General Use Equipment Class D for harmonicline current content at full rated power 7 10 EN55022 Class B Radio interference CISPR 22 7 11 FCC Part 15 Subpart J class B 115VAC operation 8 MTBF 8 1 MTBF MEAN TIME BETWEEN FAILURES CALCULATION The demonstrated MTBF shall be 100 000 hours of continuous operation at 25 C full load 80 confidence limit and nominal line The MTBF of the power supply shall be calculated in accordance with MIL STD 217D E The DC FAN is not included 9 MECHANICAL REQUIREMENTS 9 1 Physical Dimension 150mm W x 86mm H x 160mm D 9 2 Connectors iSAWG wire M B 24PIN connector Signal Pin Pin Signal 18AWG wire Orange 3 3V 13 1 3 3V Orange Orange 22AWG 3 3Vsense 13 1 3 3V Orange Blue 18AWG 12VDC 14 2 3 3V Orange Black COM 15 3 COM Black Green 18AWG PS ON 16 4 5VDC Red Black COM 17 5 COM Black Black COM 18 6 5VDC Red Black COM 19 7 COM Black White N C 20 8 PWRGOOD Grey 18AWG Red 5VDC 21 9 5Vsb Purple Red 5VDC 22 5Vsense 22 10 12V1 Yellow Black stripe Red 22AWG Red 5VDC 23 11 12V1 Yellow Black stripe Black COM 24 12 3 3V Orange J
