STRIDER SST-ST60F
02

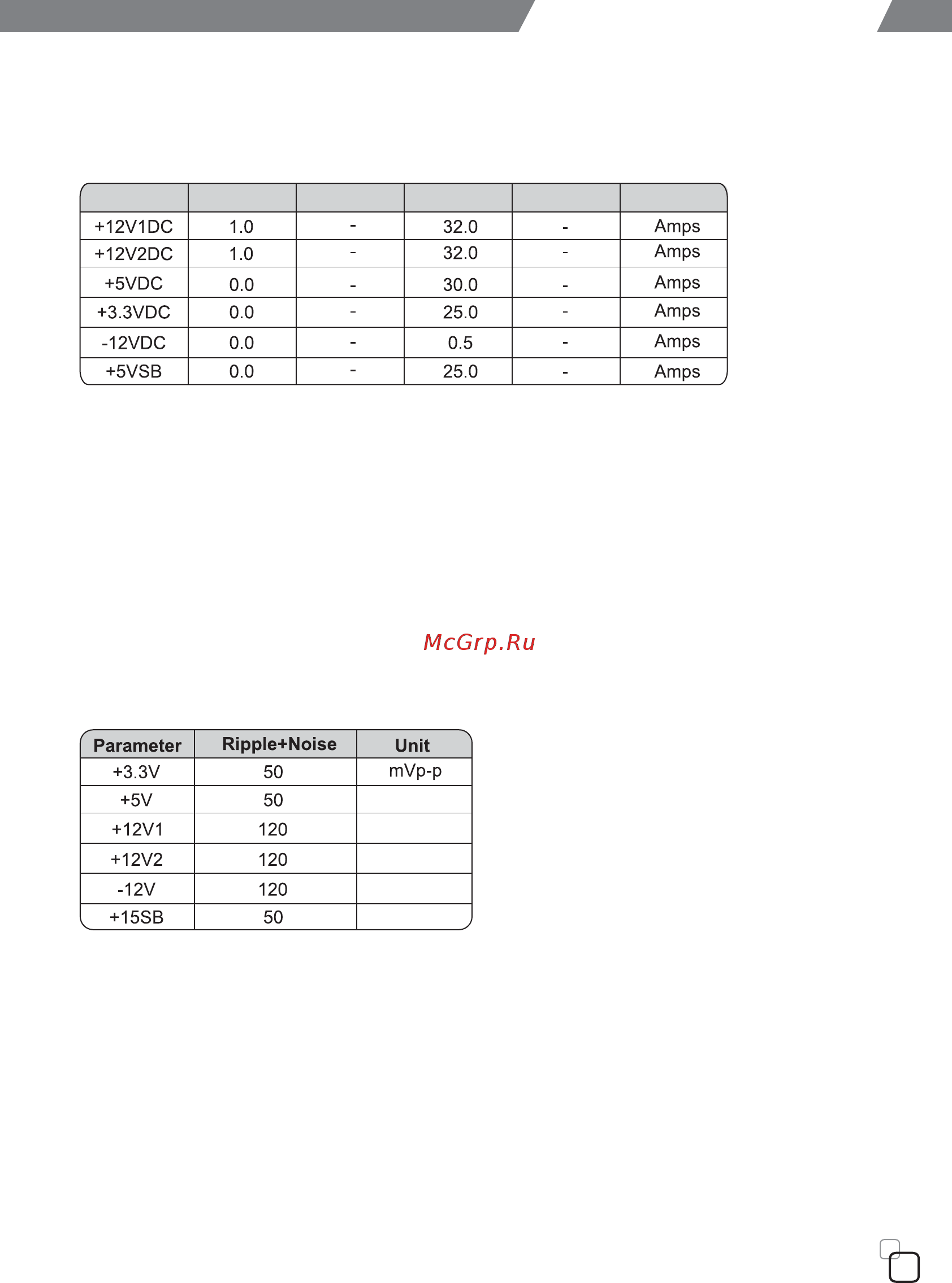

2.2 Load Ranges
2.2.1 Typical Power Distribution for 600W ATX12V Configuration
Parameter Min
Nom.
PeakMax Unit
1.Maximum continuous total DC output power should not exceed 600W
2.Maximum continuous combined load on +3.3VDC and +5VDC outputs shall not
exceed 170W
3.The maximum peak total DC output power shall not exceeed 620 watts
4.Peak power and current loading shall be supported for a minimum of 12 second.
5.Maximum combined current for the 12V outputs shall be 48A.
2.3 DC Output Ripple/Noise.
2.3.1 Ripple regulation
mVp-p
mVp-p
mVp-p
mVp-p
mVp-p
2.3.2 Definition
The ripple voltage of the outputs shall be measured at the pins of the output connector
when terminated in the load impedance specified in figure 1. Ripple and noise are
measured at the connectors with a 0.1uF ceramic capacitor and a 10uF electrolytic
capacitor to simulate system loading.Ripple shall be measured under any condition of
line voltage,output load,line frequency,operation temperature.
