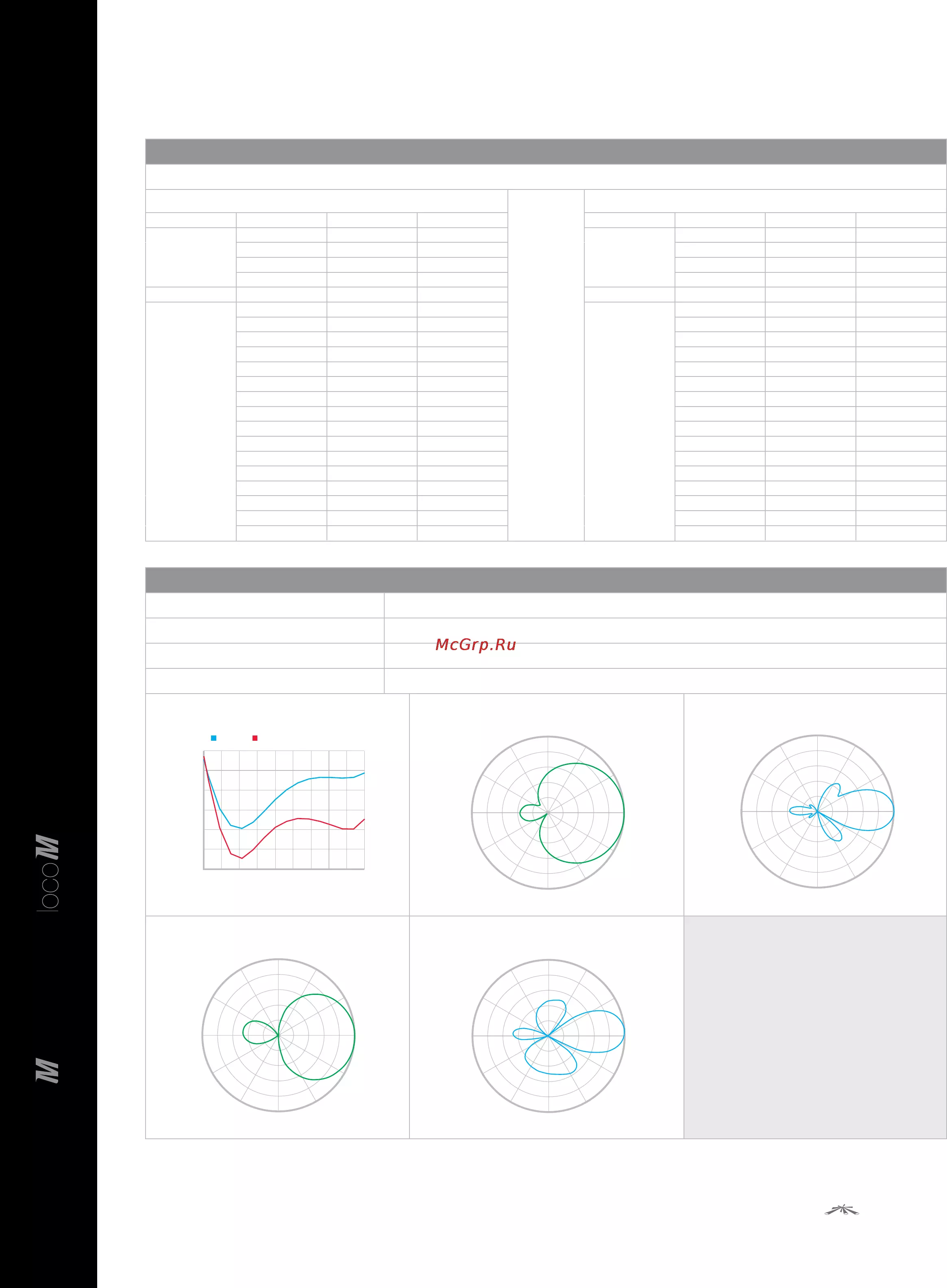

NanoStation Loco M5 - Antenna Information
90
-90
120
-120
150
-150
180
60
-60
30
0
-15
-5dB
-15
-5dB
-15
-5dB
-15
-5dB
Vertical AzimuthReturn Loss
Horizontal Elevation
90
-90
120
-120
150
-150
180
60
-60
30
-30
0
Horizontal Azimuth
-25
5.2 5.4 5.6 5.8
dB
GHz
-15
90
-90
120
-120
150
-150
180
60
-60
30
-30 -30
0
Vertical Elevation
90
-90
120
-120
150
-150
180
60
-60
30
-30
0
08
Ubiquiti Networks, Inc. Copyright © 2011, All Rights Reserved www.ubnt.com
Specifications (cont.) - LOCOM5
Gain 13 dBi
Cross-pol Isolation 20 dB minimum
Max VSWR 1.4:1
Beamwidth 45 deg. (H-pol) / 45 deg (V-pol) / 45 deg (Elevation)
V-pol H-pol
NanoStation Loco M5 - Operating Frequency 5470-5825 MHz*
11a11n / AirMax
OUTPUT POWER: 23 dBm
DataRate Avg. TX
5 GHz TX POWER SPECIFICATIONS
Tolerance
6-24 Mbps 23 dBm +/- 2 dB
36 Mbps 21 dBm +/- 2 dB
48 Mbps 19 dBm +/- 2 dB
54 Mbps 18 dBm +/- 2 dB
MCS0 23 dBm +/- 2 dB
MCS1 23 dBm +/- 2 dB
MCS2 23 dBm +/- 2 dB
MCS3 23 dBm +/- 2 dB
MCS4 22 dBm +/- 2 dB
MCS5 20 dBm +/- 2 dB
MCS6 18 dBm +/- 2 dB
MCS7 17 dBm +/- 2 dB
MCS8 23 dBm +/- 2 dB
MCS9 23 dBm +/- 2 dB
MCS10 23 dBm +/- 2 dB
MCS11 23 dBm +/- 2 dB
MCS12 22 dBm +/- 2 dB
MCS13 20 dBm +/- 2 dB
MCS14 18 dBm +/- 2 dB
MCS15 17 dBm +/- 2 dB
11a11n / AirMax
DataRate Avg. TX
5 GHz RX POWER SPECIFICATIONS
Tolerance
6-24 Mbps -83 dBm +/- 2 dB
36 Mbps -80 dBm +/- 2 dB
48 Mbps -77 dBm +/- 2 dB
54 Mbps -75 dBm +/- 2 dB
MCS0 -96 dBm +/- 2 dB
MCS1 -95 dBm +/- 2 dB
MCS2 -92 dBm +/- 2 dB
MCS3 -90 dBm +/- 2 dB
MCS4 -86 dBm +/- 2 dB
MCS5 -83 dBm +/- 2 dB
MCS6 -77 dBm +/- 2 dB
MCS7 -74 dBm +/- 2 dB
MCS8 -95 dBm +/- 2 dB
MCS9 -93 dBm +/- 2 dB
MCS10 -90 dBm +/- 2 dB
MCS11 -87 dBm +/- 2 dB
MCS12 -84 dBm +/- 2 dB
MCS13 -79 dBm +/- 2 dB
MCS14 -78 dBm +/- 2 dB
MCS15 -75 dBm +/- 2 dB
* Only 5745 - 5825 MHz is supported in the USA
