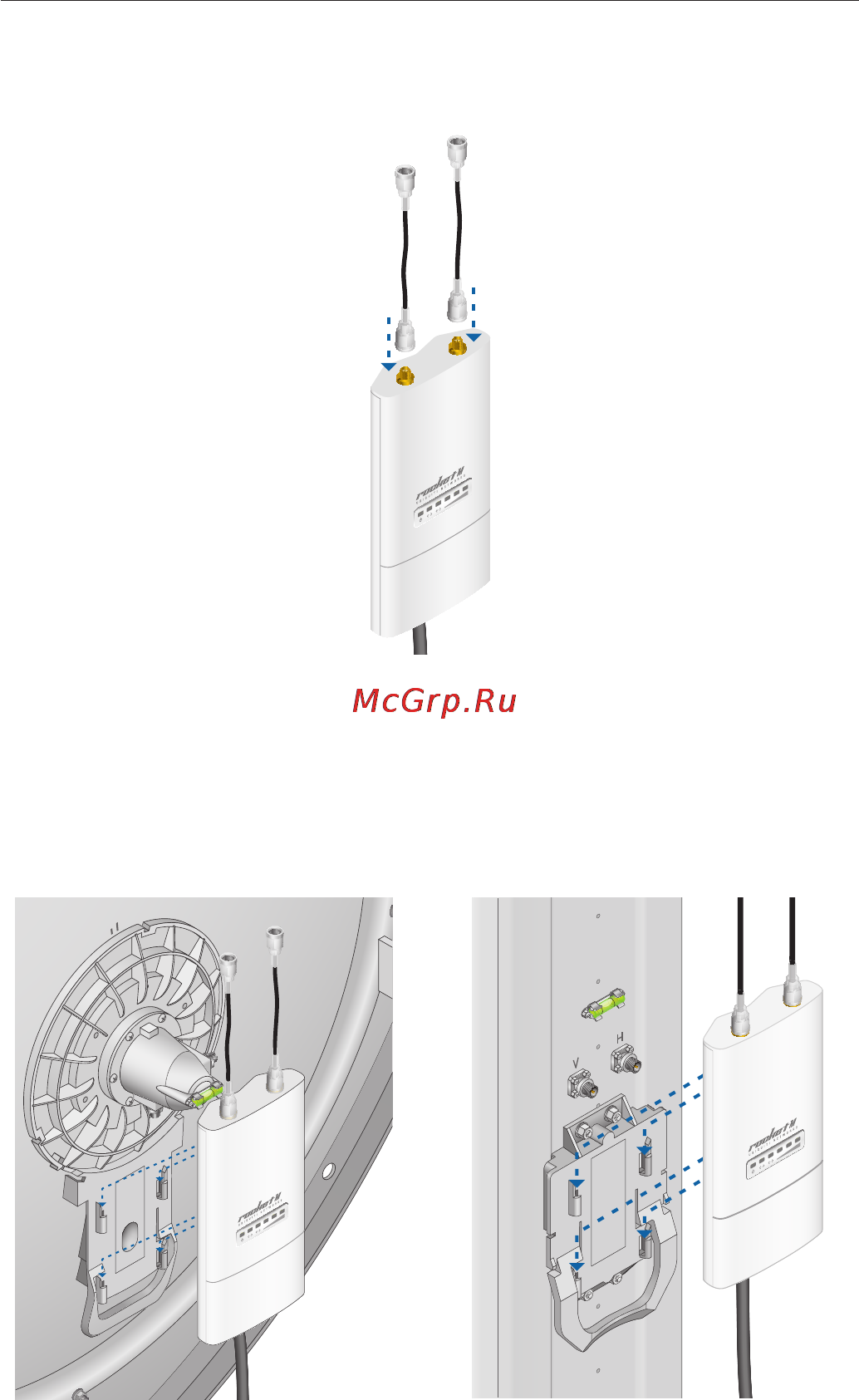

Hardware Installation

4. Attach the RF Cables to the connectors labeled Chain 0 and

Chain 1 on the RocketM.

5. Attach the RocketM to an antenna. Align the mounting tabs

on the back of the RocketM with the mounting bracket on

the antenna. Slide the RocketM down until it locks into place.

(If you are mounting the RocketM on a pole, refer to the

Pole‑Mounting section on page 7.)

Mounting on a Dish Antenna Mounting on a Sector Antenna
