Rocket

™

M Quick Start Guide

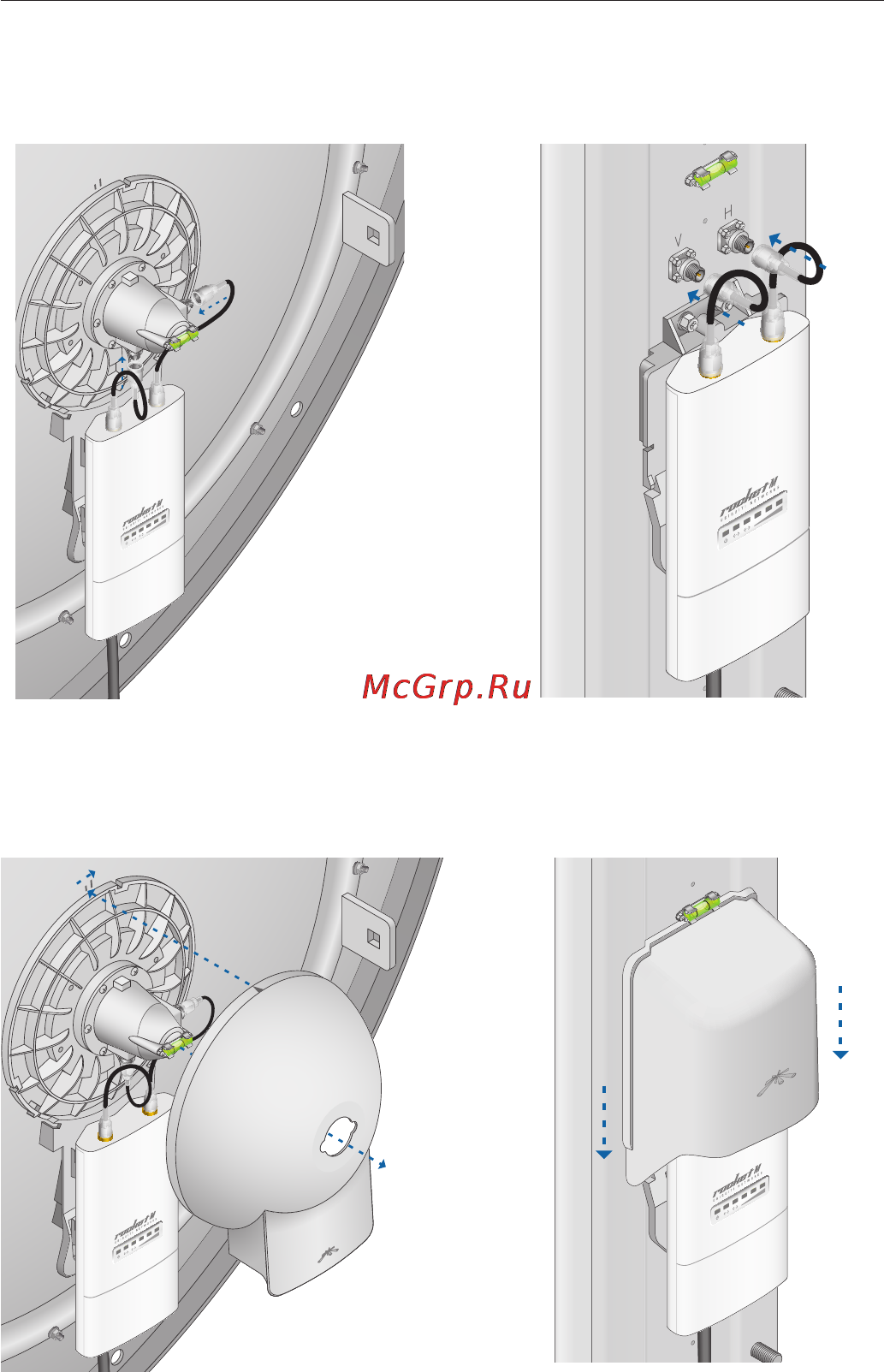

6. Attach the RF Cables from the RocketM to the connectors on

the antenna.

Connecting to a Dish Antenna Connecting to a Sector Antenna

7. Attach the Protective Shroud.

Align the arrow on the top of the shroud

with the short hash mark on the Dish

Antenna, and then rotate the shroud

clockwise until it aligns with the long hash

mark to lock it into place.

Slide the Protective Shroud down

over the RocketM until it locks into

place on the Sector Antenna.
