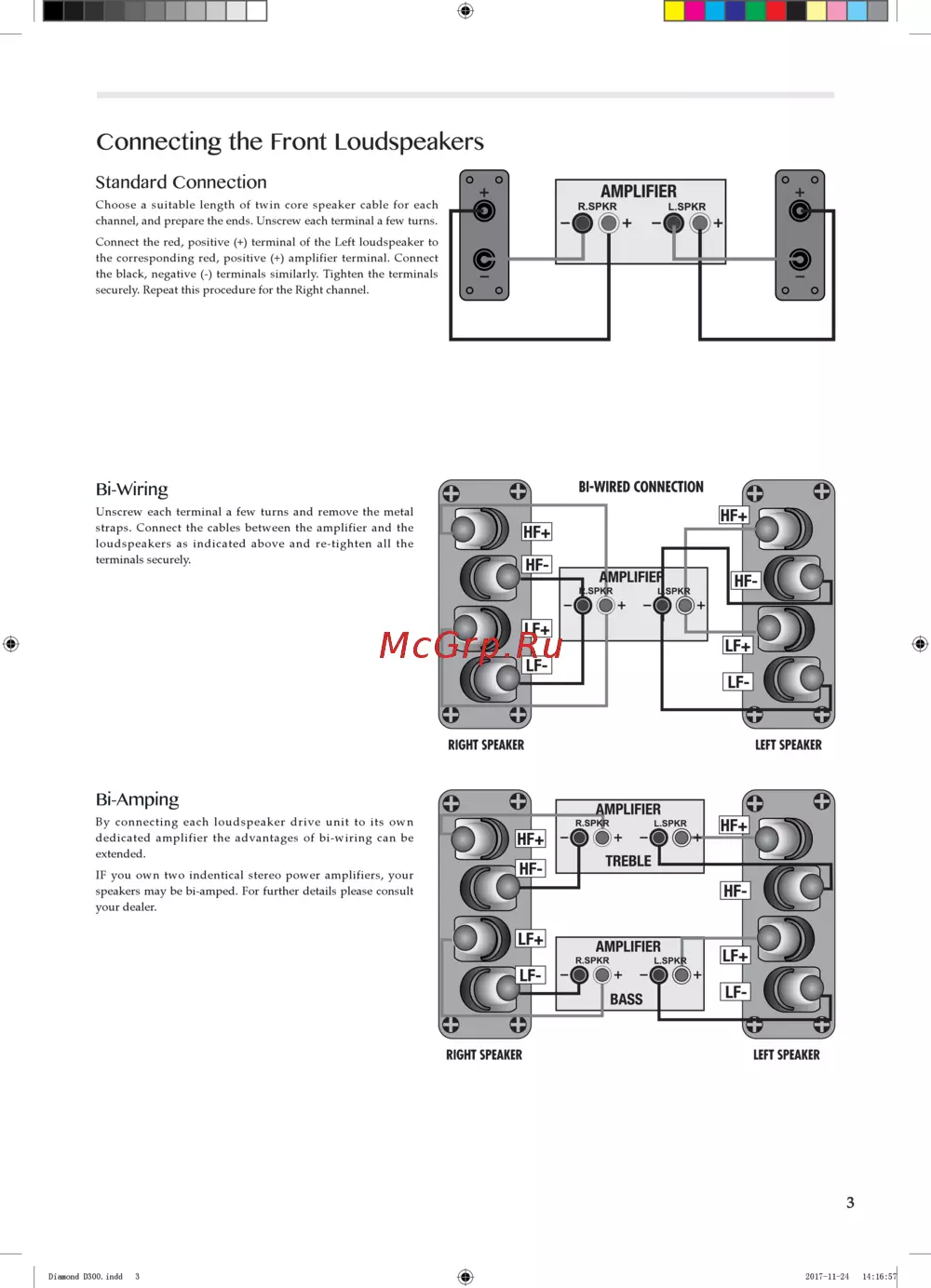

Connecting the Front Loudspeakers Standard Connection Choose a suitable length of twin core speaker cable for each channel and prepare the ends Unscrew each terminal a few turns Connect the red positive terminal of the Left loudspeaker to the corresponding red positive amplifier terminal Connect the black negative terminals similarly Tighten the terminals securely Repeat this procedure for the Right channel Bi Wiring Unscrew each terminal a few turns and remove the metal straps Connect the cables between the amplifier and the loudspeakers as indicated above and re tighten all the terminals securely RIGHT SPEAKER LEFT SPEAKER RIGHT SPEAKER LEFT SPEAKER Bi Amping By connecting each loudspeaker drive unit to its own dedicated amplifier the advantages of bi wiring can be extended IF you own two indentical stereo power amplifiers your speakers may be bi amped For further details please consult your dealer
