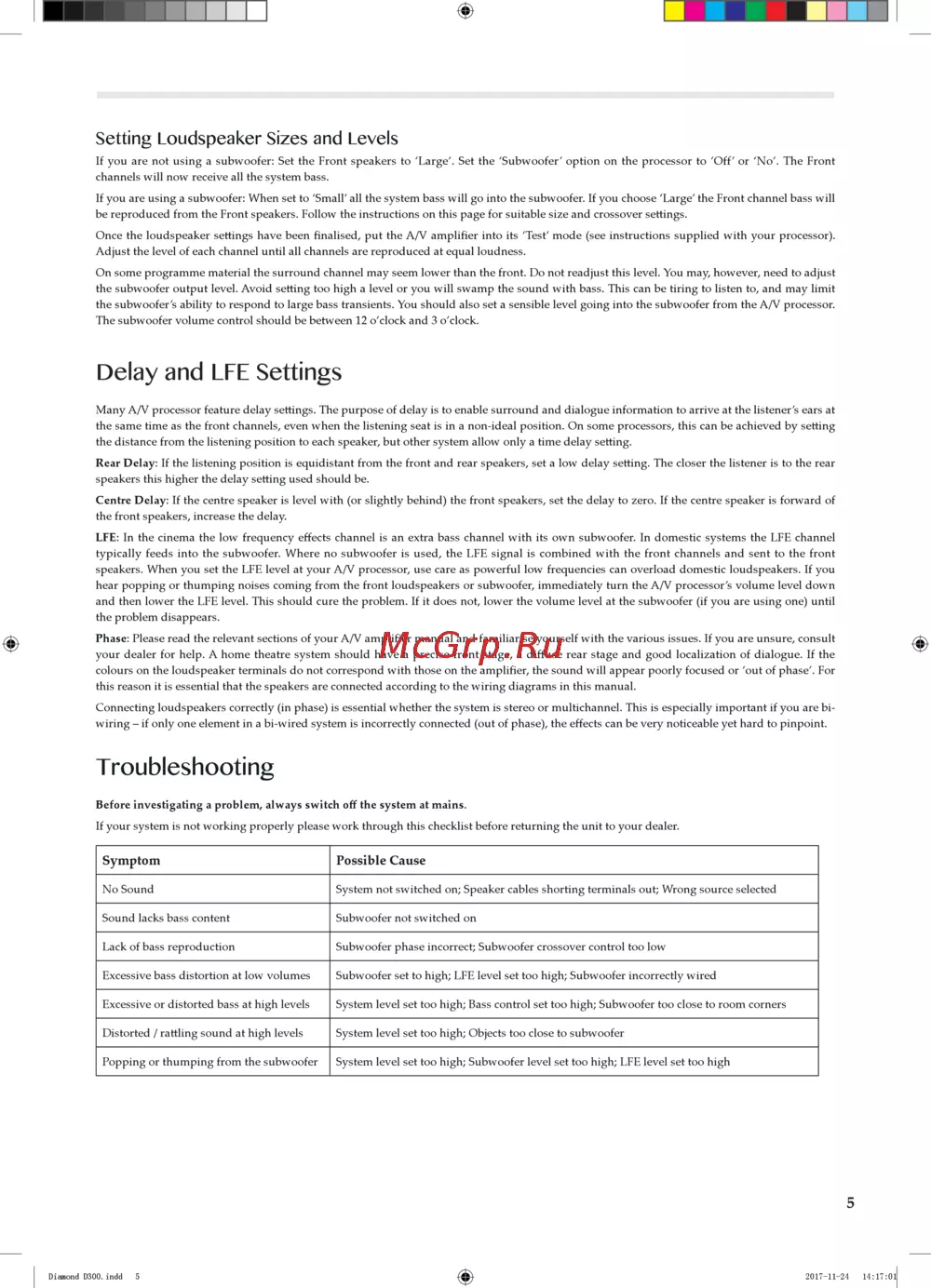

Setting Loudspeaker Sizes and Levels If you are not using a subwoofer Set the Front speakers to Large Set the Subwoofer option on the processor to Off or No The Front channels will now receive all the system bass If you are using a subwoofer When set to Small all the system bass will go into the subwoofer If you choose Large the Front channel bass will be reproduced from the Front speakers Follow the instructions on this page for suitable size and crossover settings Once the loudspeaker settings have been finalised put the A V amplifier into its Test mode see instructions supplied with your processor Adjust the level of each channel until all channels are reproduced at equal loudness On some programme material the surround channel may seem lower than the front Do not readjust this level You may however need to adjust the subwoofer output level Avoid setting too high a level or you will swamp the sound with bass This can be tiring to listen to and may limit the subwoofer s ability to respond to large bass transients You should also set a sensible level going into the subwoofer from the A V processor The subwoofer volume control should be between 12 o clock and 3 o clock Delay and LFE Settings Many A V processor feature delay settings The purpose of delay is to enable surround and dialogue information to arrive at the listener s ears at the same time as the front channels even when the listening seat is in a non ideal position On some processors this can be achieved by setting the distance from the listening position to each speaker but other system allow only a time delay setting Rear Delay If the listening position is equidistant from the front and rear speakers set a low delay setting The closer the listener is to the rear speakers this higher the delay setting used should be Centre Delay If the centre speaker is level with or slightly behind the front speakers set the delay to zero If the centre speaker is forward of the front speakers increase the delay LFE In the cinema the low frequency effects channel is an extra bass channel with its own subwoofer In domestic systems the LFE channel typically feeds into the subwoofer Where no subwoofer is used the LFE signal is combined with the front channels and sent to the front speakers When you set the LFE level at your A V processor use care as powerful low frequencies can overload domestic loudspeakers If you hear popping or thumping noises coming from the front loudspeakers or subwoofer immediately turn the A V processor s volume level down and then lower the LFE level This should cure the problem If it does not lower the volume level at the subwoofer if you are using one until the problem disappears Phase Please read the relevant sections of your A V amplifier manual and familiarise yourself with the various issues If you are unsure consult your dealer for help A home theatre system should have a precise front stage a diffuse rear stage and good localization of dialogue If the colours on the loudspeaker terminals do not correspond with those on the amplifier the sound will appear poorly focused or out of phase For this reason it is essential that the speakers are connected according to the wiring diagrams in this manual Connecting loudspeakers correctly in phase is essential whether the system is stereo or multichannel This is especially important if you are bi wiring if only one element in a bi wired system is incorrectly connected out of phase the effects can be very noticeable yet hard to pinpoint Troubleshooting Before investigating a problem always switch off the system at mains If your system is not working properly please work through this checklist before returning the unit to your dealer Symptom Possible Cause No Sound System not switched on Speaker cables shorting terminals out Wrong source selected Sound lacks bass content Subwoofer not switched on Lack of bass reproduction Subwoofer phase incorrect Subwoofer crossover control too low Excessive bass distortion at low volumes Subwoofer set to high LFE level set too high Subwoofer incorrectly wired Excessive or distorted bass at high levels System level set too high Bass control set too high Subwoofer too close to room corners Distorted rattling sound at high levels System level set too high Objects too close to subwoofer Popping or thumping from the subwoofer System level set too high Subwoofer level set too high LFE level set too high 5
