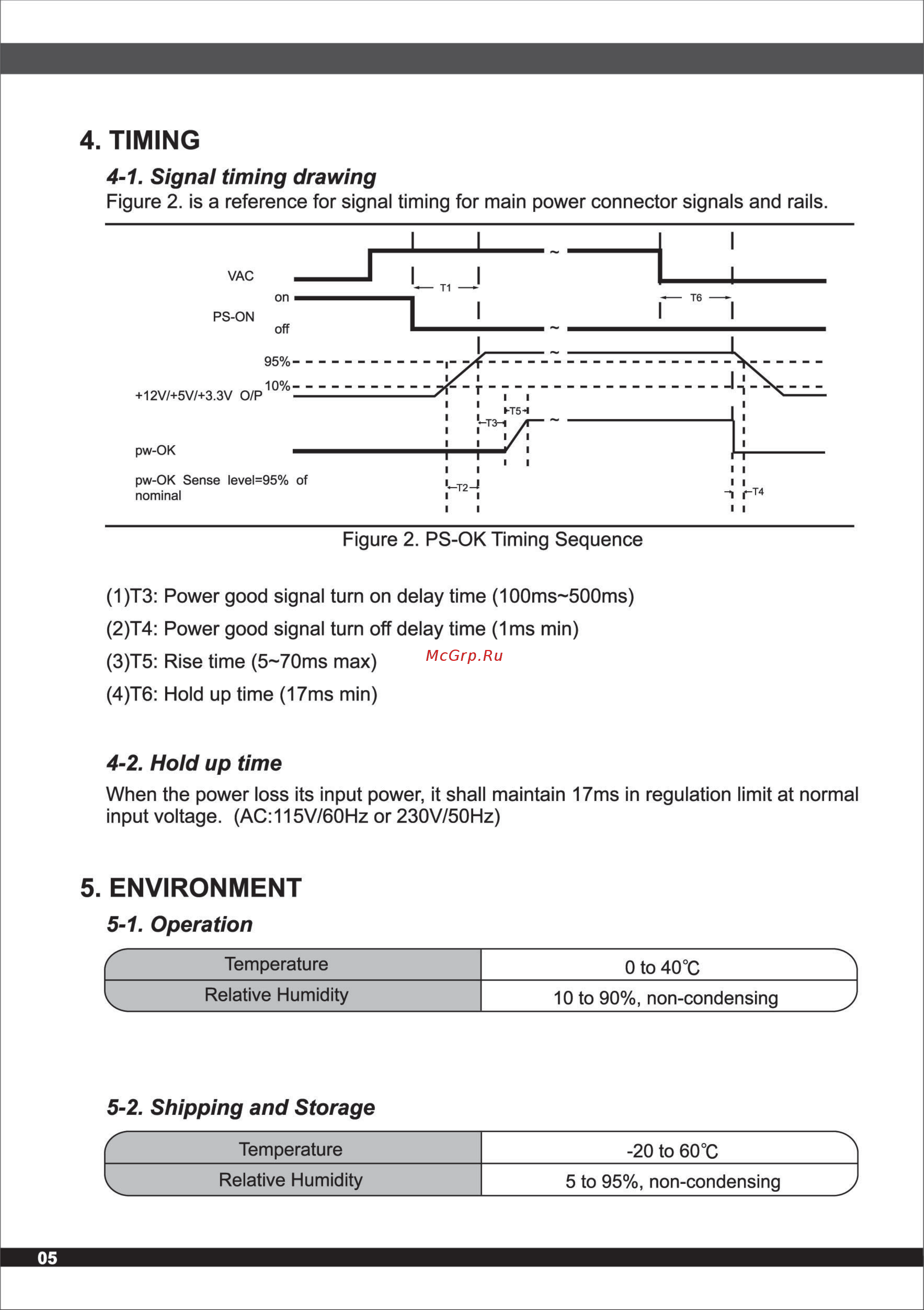

4 TIMING 4 1 Signal timing drawing Figure 2 is a reference for signal timing for main power connector signals and rails VAC Lnl l 1 T3 Power good signal turn on delay time 100ms 500ms 2 T4 Power good signal turn off delay time 1 ms min 3 T5 Rise time 5 70ms max 4 T6 Hold up time 17ms min 4 2 Hold up time When the power loss its input power it shall maintain 17ms in regulation limit at normal input voltage AC 115V 60Hz or 230V 50Hz 5 ENVIRONMENT 5 1 Operation Temperature 0 to 40 C C Relative Humidity 10 to 90 non condensing 5 2 Shipping and Storage Temperature Relative Humidity 05 20 to 60 C 5 to 95 non condensing y
