SilverStone ST85F [9/12] Strider st85f

Содержание

• Elevated power and flexibility in one 1
• 1 ac input requirements 2
• 1 dc voltage regulation 2
• 2 inrush current regulation 2
• Ac input 2
• Dc output 2
• Ps 2 modular 850w 2
• Silverstone strider st85f switching power supply 2
• Specification 2
• With active pfc 2
• 2 load ranges 3
• 3 output ripple 3
• Strider st85f 3
• 4 overshoot 4
• 5 efficiency 4
• 6 remote on off control 4
• 1 over current protection 5
• 2 under voltage protection 5
• 3 over voltage protection 5
• 4 short circuit 5
• 5 no load operation 5
• Protection 5
• Strider st85f 5
• 1 operation 6
• 1 signal timing drawing 6
• 1 t3 power good signal turn on delay time 100ms 500ms 6
• 2 hold up time 6
• 2 shipping and storage 6
• 2 t4 power good signal turn off delay time 1 ms min 6
• 3 t5 rise time 5 70ms max 6
• 4 t6 hold up time 17ms min 6
• Environment 6
• Figure 2 is a reference for signal timing for main power connector signals and rails 6
• L n l l 6
• Timing 6
• When the power loss its input power it shall maintain 17ms in regulation limit at normal input voltage ac 115v 60hz or 230v 50hz 6
• Electromagnetic compatibility emc 7
• Safety 7
• Strider st85f 7
• 1 physical dimension 8
• Mechanical requirements 8
• 2 pin definition 9
• M b 24pin connector 9
• Pin peripheral connector hdd 4pin floppy connector fdd 9
• Sata connector 9
• Strider st85f 9
• Store purchaser purchase date model no 11
• Strider st85f 11
• To be valid this sheet must be filled out by 11
• Your salesperson at the time of purchase 11
• Www silverstonetek com 12

Похожие устройства

• Mizar Generation 1 Black (MZLEDG1BK) Инструкция по эксплуатации
• Mizar Generation 1 Grey (MZLEDG1GR) Инструкция по эксплуатации
• Mizar Generation 2 Black (MZLEDG2BK) Инструкция по эксплуатации
• Mizar Generation 2 Grey (MZLEDG2GR) Инструкция по эксплуатации
• Telefunken TF-1706 Black/Red Инструкция по эксплуатации
• SilverStone ST85F инструкция по установке
• Audio-Technica AT-LPW50PB Инструкция по эксплуатации
• Lexand LR90 Инструкция по эксплуатации
• Axper Mirror Simple Duo Инструкция по эксплуатации
• LG XBOOM Go PL2B Ice Mint Инструкция по эксплуатации
• LG XBOOM Go PL2S Sour Lemon Инструкция по эксплуатации
• LG XBOOM Go PL2P Bubble Gum Инструкция по эксплуатации
• Samsung HW-S61T Инструкция по эксплуатации
• SilverStone SST-ST85F Инструкция по эксплуатации
• ASANO 24LH1110T Инструкция по эксплуатации
• ASANO 32LH1110T Инструкция по эксплуатации
• ASANO 43LF7202T Инструкция по эксплуатации
• Novex NWX-24H121MSG Инструкция по эксплуатации
• Novex NWT-40F171MS Инструкция по эксплуатации
• SilverStone SST-ST85F инструкция по установке

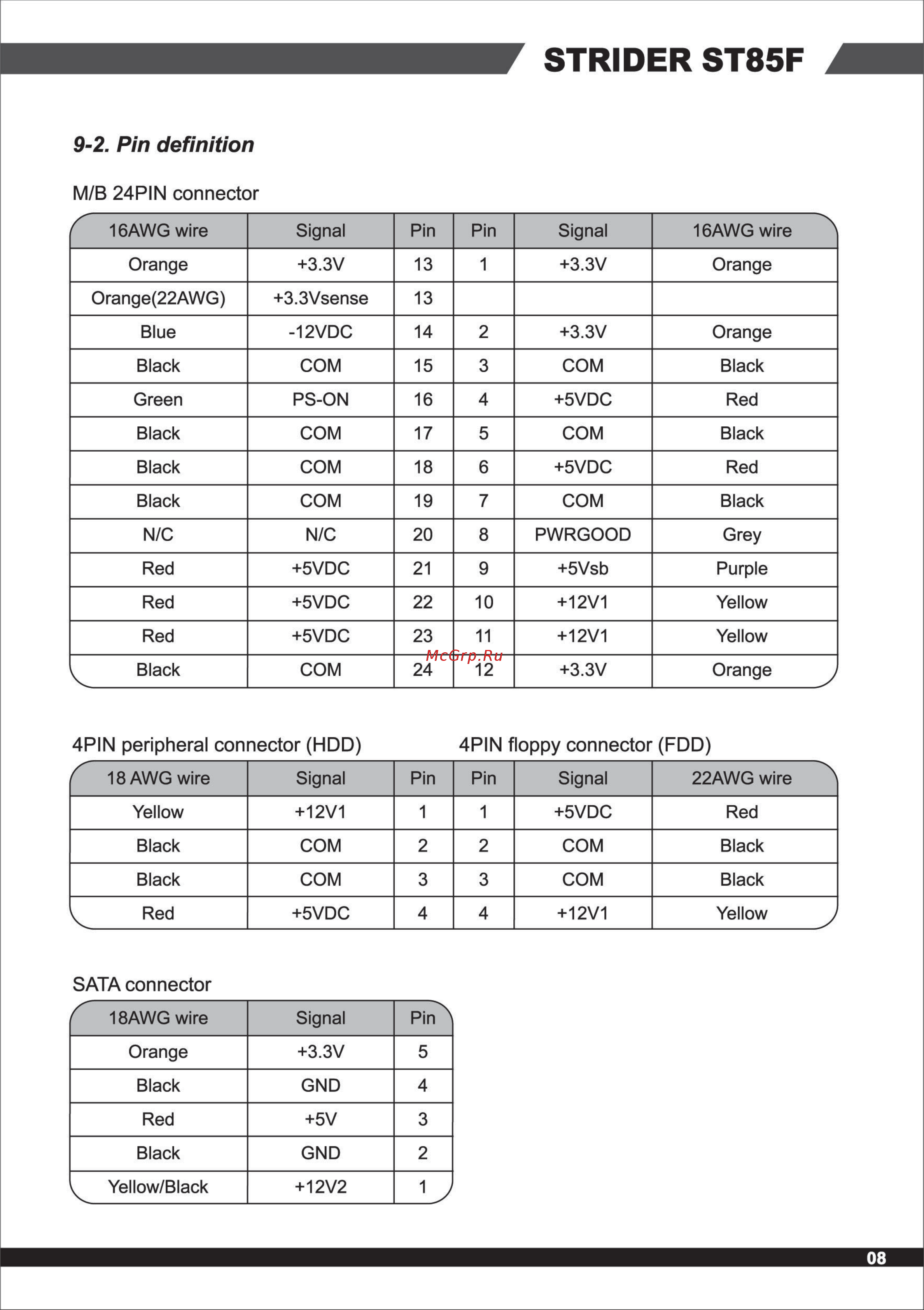

STRIDER ST85F 9 2 Pin definition M B 24PIN connector 16AWG wire Signal Pin Pin Signal 16AWG wire Orange 3 3V 13 1 3 3 V Orange Orange 22AWG 3 3Vsense 13 Blue 12VDC 14 2 3 3V Orange Black COM 15 3 COM Black Green PS ON 16 4 5VDC Red Black COM 17 5 COM Black Black COM 18 6 5VDC Red Black COM 19 7 COM Black N C N C 20 8 PWRGOOD Grey Red 5VDC 21 9 5Vsb Purple Red 5VDC 22 10 12V1 Yellow Red 5VDC 23 11 12V1 Yellow Black COM 24 12 3 3 V Orange 4PIN peripheral connector HDD y 4PIN floppy connector FDD 18AWGwire Signal Pin Pin Signal 22AWG wire Yellow 12V1 1 1 5VDC Red Black COM 2 2 COM Black Black COM 3 3 COM Black Red 5VDC 4 4 12V1 Yellow 18AWG wire Signal PinЛ Orange 3 3V 5 Black GND 4 Red 5V 3 Black GND 2 Yellow Black 12V2 1 SATA connector
