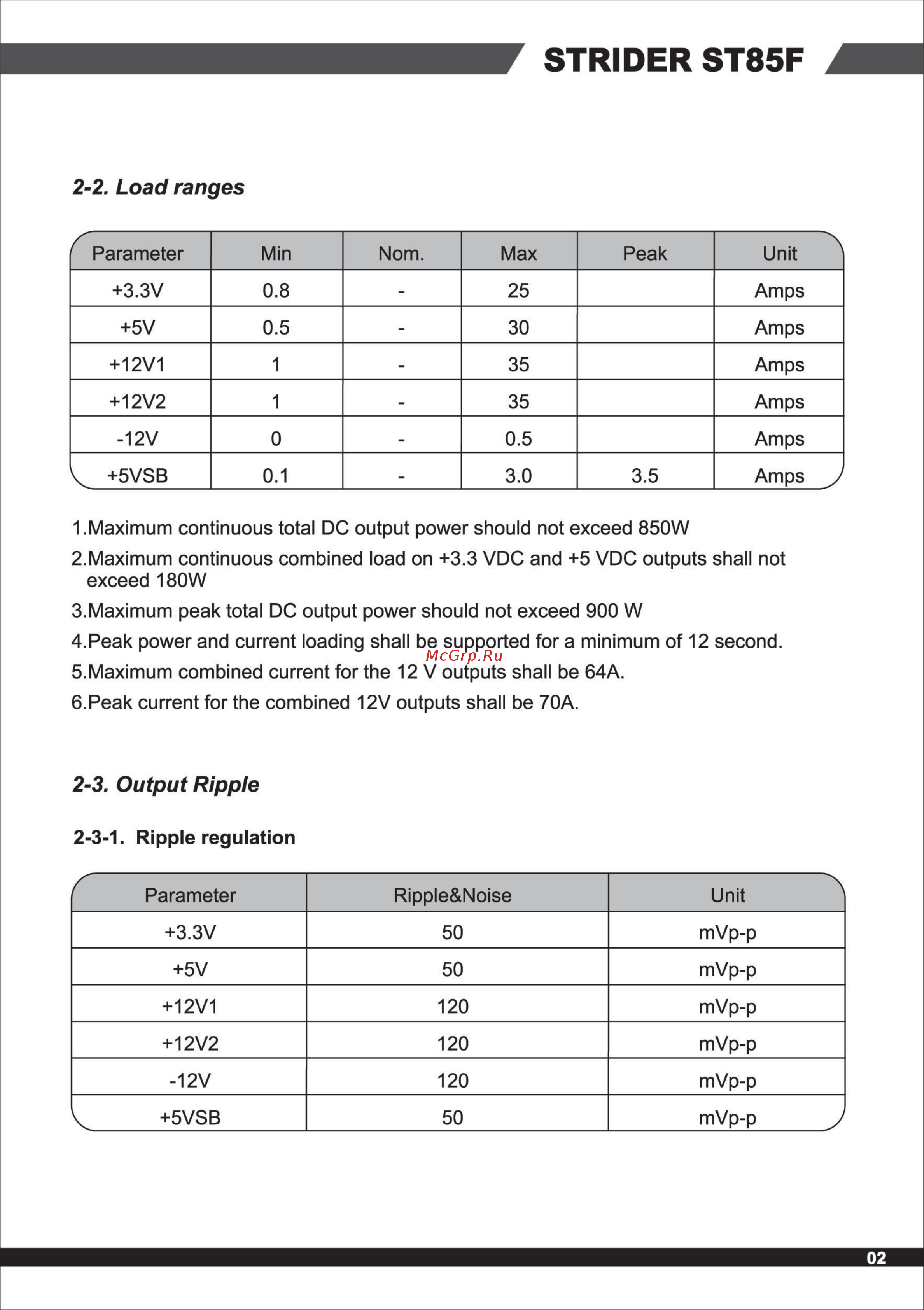

STRIDER ST85F 2 2 Load ranges Parameter Min Norn Max 3 3V 0 8 25 Amps 5V 0 5 30 Amps 12V1 1 35 Amps 12V2 1 35 Amps 12V 0 0 5 Amps 0 1 3 0 V 5VSB Peak Unit 3 5 Amps y 1 Maximum continuous total DC output power should not exceed 850W 2 Maximum continuous combined load on 3 3 VDC and 5 VDC outputs shall not exceed 180W 3 Maximum peak total DC output power should not exceed 900 W 4 Peak power and current loading shall be supported for a minimum of 12 second 5 Maximum combined current for the 12 V outputs shall be 64A 6 Peak current for the combined 12V outputs shall be 70A 2 3 Output Ripple 2 3 1 Ripple regulation Parameter Ripple Noise Unit 3 3V 50 mVp p 5V 50 mVp p 12V1 120 mVp p 12V2 120 mVp p 12V 120 mVp p 5VSB 50 mVp p y 02
