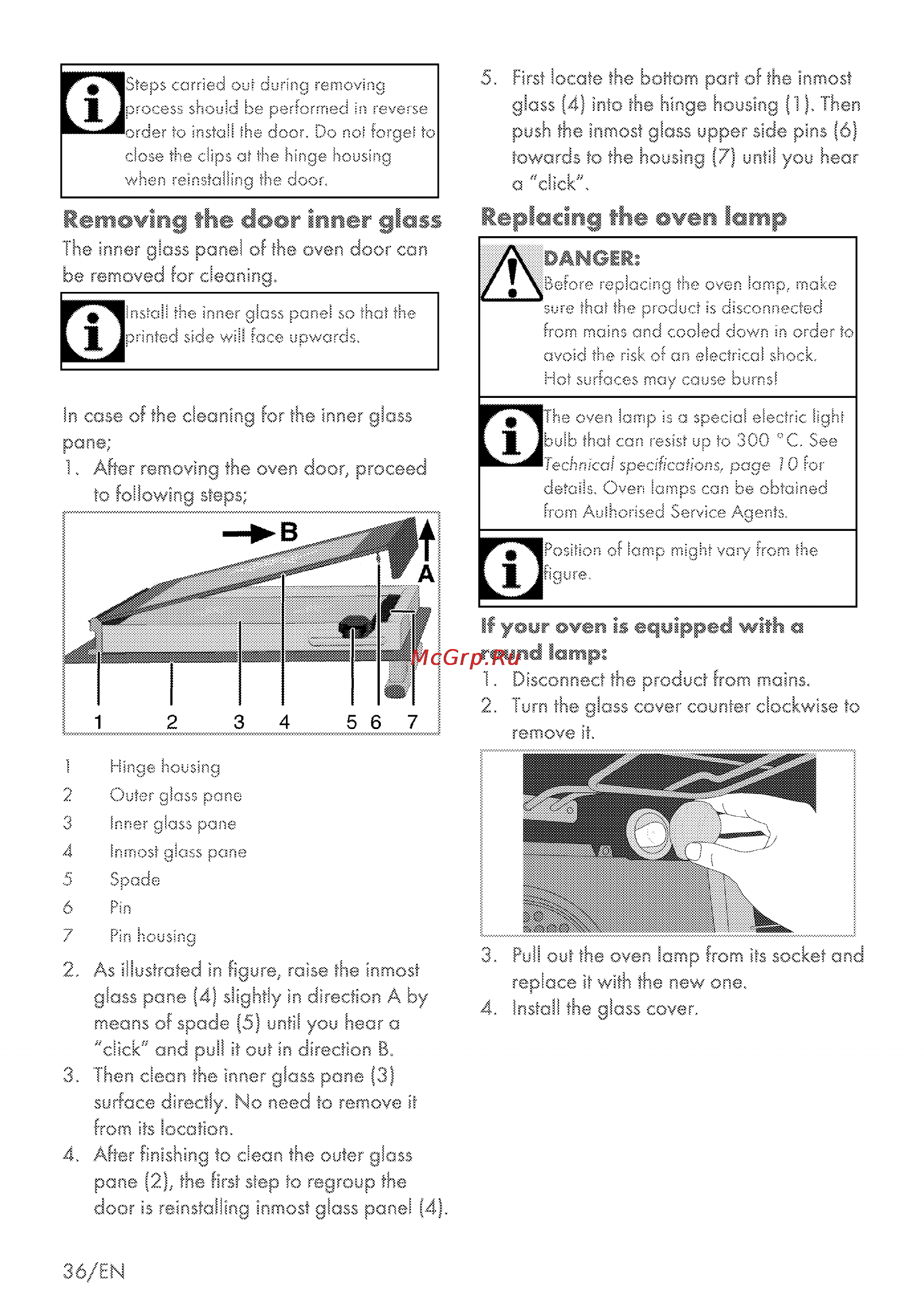

Steps carried out during removing I Jproccsr should be performed in reverse border to install the door Do noi forgei to dose the dips at the hinge housing when reinstalling the door Removing the door inner gtass Ths inner glass panel of th oven door con be removed for deeming in case of the cleaning for the inner glass pane 1 After removing the oven daag proceed 5 First boat the bottom part of th inmost glass 4 into th hing housing 1 Thon push the inmost glass upper side pins 6 towards to the housing 7 until you hear a click Replacing the awn lamp A OANG yA Care replacing the oven lamp make sure that the product is disconnected from mains and cooled down in order to avoid the risk of an electrical shock Hot surfaces may cause burns oven lamp is a special electric light I jbulb that can resist up to 300 C See fechmca i specifications page 10 for details Oven lamps can be obtained from Authorised Service Agents Position of lamp might vary from the figure If yyyr awn is equipped with o raoad lomp 1 Disconnect th product from mains 2 Turn the glass cover counter clockwise to remove 4 1 Hinge housing 2 Outer glass pane 3 inner glass pane 4 Inmost glass pane 5 Spade 6 Pin 7 Pin housing 2 As illustrated in figure raise the Inmost glass pane 4 slightly in direction A by means of spade 5 until you hear a chck and pull it out in direction B 3 Then clean th inner glass pone 3 surface directly Na need to remove it from its location 4 After finishing to dean the outer glass pan the first stop to regroup the door is reinstalling inmost glass panel 4 36 EN 3 Pull out th aven lamp from Its socket and replace it with th n w on 4 Install the glass cover
