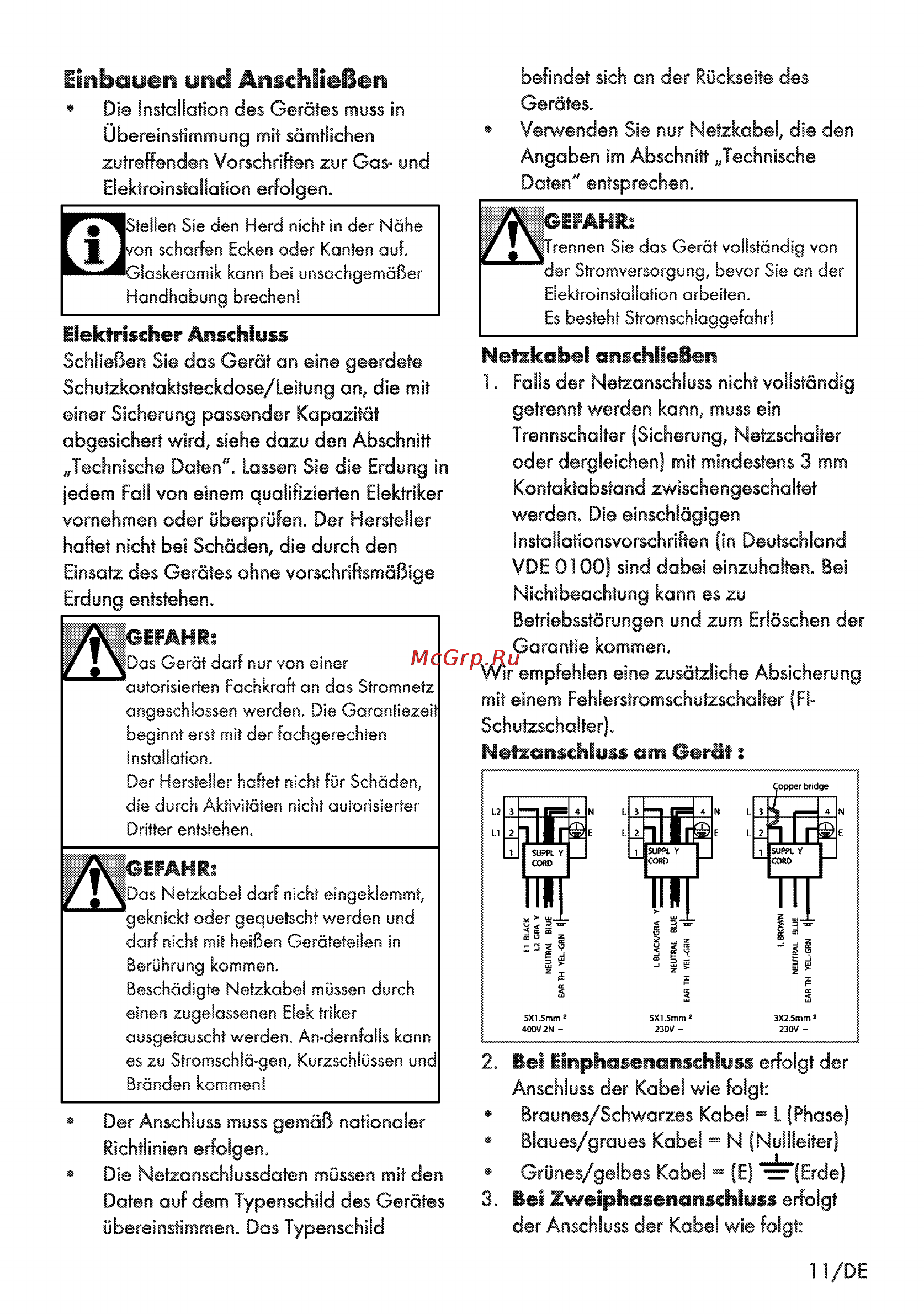

Einbauen und Anschließen Die Installation des Gerätes muss in Übereinstimmung mit sämtlichen zutreffenden Vorschriften zur Gas und Elektroinstallation erfolgen ellen Sie den Herd nicht in der Nähe n scharfen Ecken oder Kanten auf laskeramik kann bei unsachgemäßer andhabung brechen B elektrischer AMchhss Schließen Sie das Gerät an eine geerdete Schutzkontaktsteckdose Leitung an die mit einer Sicherung passender Kapazität abgesichert wird siehe dazu den Abschnitt Technische Daten Lassen Sie die Erdung in jedem Fall von einem qualifizierten Elektriker vornehmen oder überprüfen Der Hersteller haftet nicht bei Schäden die durch den Einsatz des Gerätes ohne vorschriftsmäßige Erdung entstehen ZK GHFAHB Das Gerät darf nur von einer autorisierten Fachkraft an das Stromnetz angeschlossen werden Die Garantiezeit beginnt erst mit der fachgerechten Installation Der Hersteller haftet nicht für Schäden die durch Aktivitäten nicht autorisierter Dritter entstehen befindet sich an der Rückseite des Gerätes Verwenden Sie nur Netzkabel die den Angaben im Abschnitt Technische Daten entsprechen B GEFAHR Trennen Sie das Gerät vollständig von der Stromversorgung bevor Sie an der Elektroinstallation arbeiten Es besteht Stramschlaggefahr Hetzkabel cmschließM 1 Falls der Netzanschluss nicht vollständig getrennt werden kann muss ein Trennschalter Sicherung Netzschalter oder dergleichen mit mindestens 3 mm Kontaktabstand zwischengeschaltet werden Die einschlägigen Installationsvorschriften in Deutschland VDE 0100 sind dabei einzuhalten Bei Nichtbeachtung kann es zu Betriebsstörungen und zum Erlöschen der Garantie kommen Wir empfehlen eine zusätzliche Absicherung mit einem Fehlerstromschutzschalter FISchutzschalter Hetzaaschluss am Gerat ZK GiFAHfh f J Das Netzkabel darf nicht eingeklemmt geknickt oder gequetscht werden und darf nicht mit heißen Geräteteilen in Berührung kommen Beschädigte Netzkabel müssen durch einen zugelassenen Elek triker ausgetauscht werden An dernfalls kann es zu Stromschlä gen Kurzschlüssen und Bränden kommen Der Anschluss muss gemäß nationaler Richtlinien erfolgen Die Netzanschlussdaten müssen mit den Daten auf dem Typenschild des Gerätes übereinstimmen Das Typenschild 2 Bei EiaphaseMMchlyss erfolgt der Anschluss der Kabel wie folgt Braunes Schwarzes Kabel L Phase Blaues graues Kabel N Nullleiter Grünes gelbes Kabel E Erde 3 Bei ZweiphaseMoschlo erfolgt der Anschluss der Kabel wie folgt 11 DE
