Ubiquiti AirGrid M2 HP 16dBi [10/24] Connecting power over ethernet
![Ubiquiti AirGrid M2 HP 16dBi [10/24] Connecting power over ethernet](/views2/1072811/page10/bga.png)

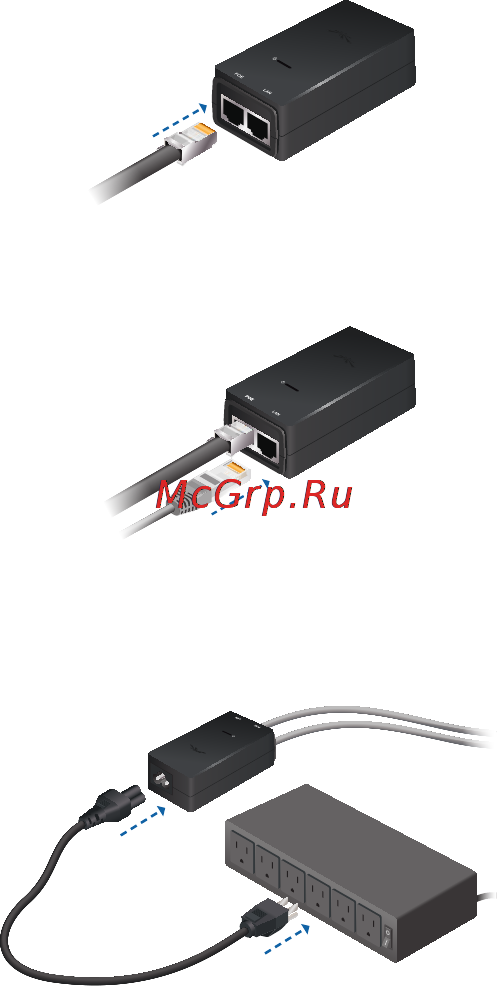

Connecting Power over Ethernet
1. Connect the other end of the Ethernet cable from the
airGrid to the Ethernet port labeled POE on the PoE
Adapter.
2. Connect an Ethernet cable from your LAN to the Ethernet
port labeled LAN on the PoE Adapter.
3. Connect the Power Cord to the power port on the PoE
Adapter. Connect the other end of the Power Cord to a
power outlet.
