Ubiquiti AirGrid M2 HP 20dBi [3/24] Application examples
![Ubiquiti AirGrid M2 HP 20dBi [3/24] Application examples](/views2/1072814/page3/bg3.png)
Installation Requirements
• 13 mm or ½" wrench
• Shielded Category 5 (or above) cabling should be used for
all wired Ethernet connections and should be grounded
through the AC ground of the PoE.
We recommend that you protect your networks from the
most brutal environments and devastating ESD attacks
with industrial-grade shielded Ethernet cable from Ubiquiti
Networks. For more details, visit www.ubnt.com/toughcable

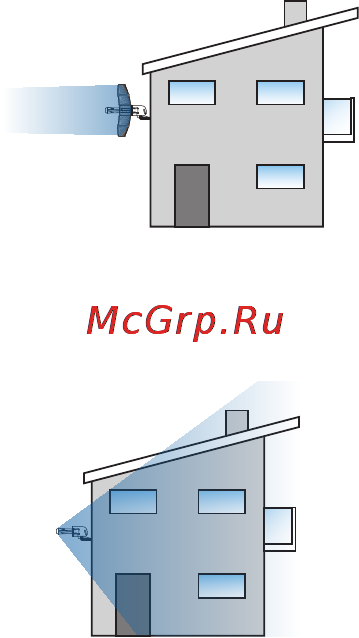

Application Examples
The airGrid mounted outdoors with the Grid Reflector
installed provides directional outdoor coverage (gain
reflector-dependent).
The airGrid mounted outdoors without the Grid Reflector
installed provides outdoor-to-indoor coverage using the 3 dBi
Antenna Feed only.
