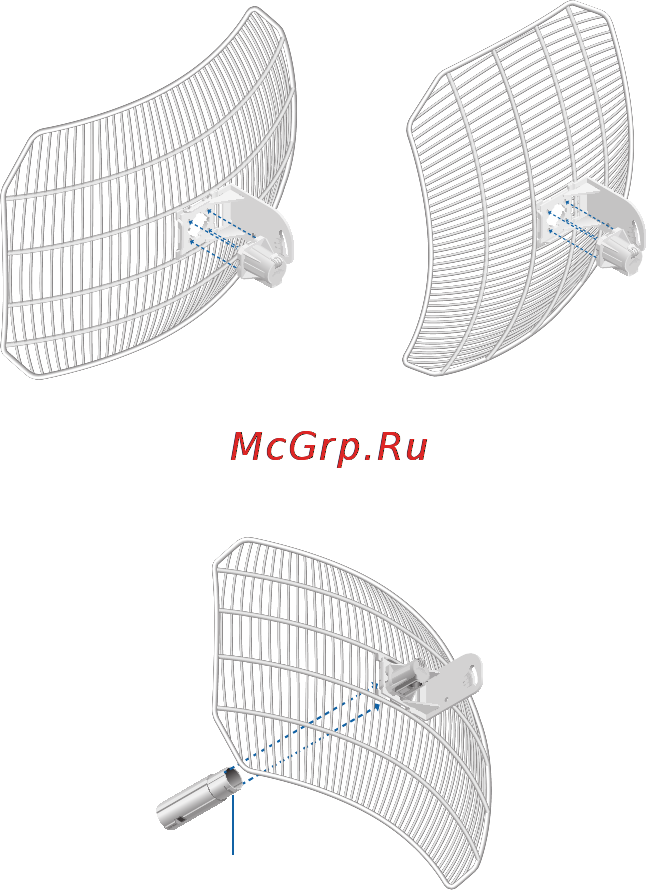

3. Attach the Rear Housing:
a. Ensure the four alignment holes on the Grid Reflector
and L-Bracket are lined up.
b. Orient the Rear Housing with the locking tab of the
cable feed door facing up.
c. Insert the alignments pins of the Rear Housing into the
alignment holes, and push until the Rear Housing locks
into place with a click.
Vertical Polarization Horizontal Polarization
4. Insert the Feed Extender into the Rear Housing with the
Release Button facing down. Push until it locks into place
with a click.
Release Button
