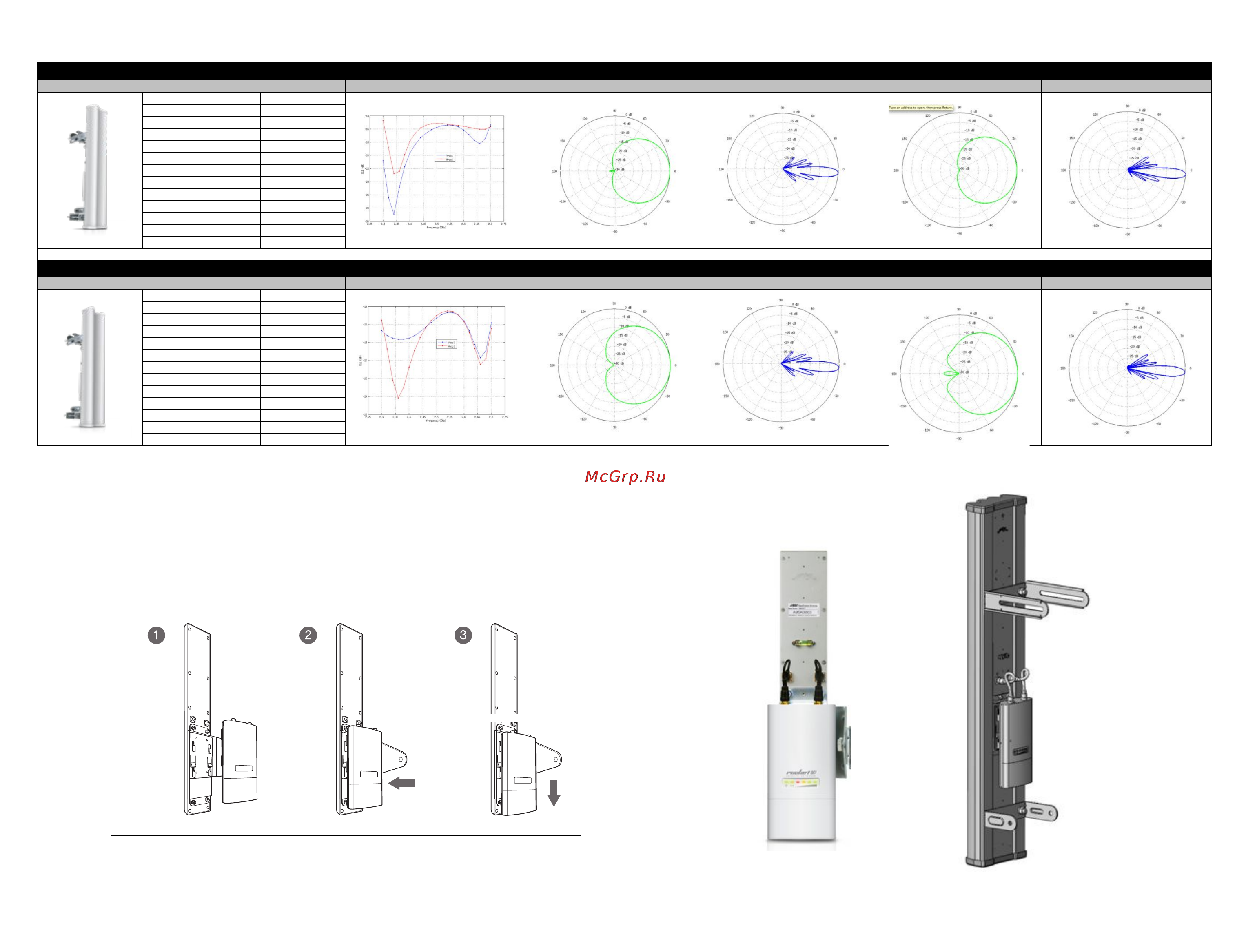

Ubiquiti AirMax Sector 2G-16-90 [2/2] Technical specifications

TECHNICAL SPECIFICATIONS

Instantly pair with Rocket M2 to create a powerful AirMax 2x2 MIMO PtMP

BaseStation. Mating bracket and weatherproof RF jumpers included.

Ubiquiti Networks Inc., 91 E. Tasman Dr., San Jose, CA 95134 www.ubnt.com

Frequency Range 2.3-2.7GHz

Gain 16.0-17.0dBi

Polarization Dual Linear

Cross-pol Isolation 28dB min.

Max VSWR 1.5:1

Hpol Beamwidth (6dB) 91 deg.

Vpol Beamwidth (6dB) 90 deg.

Elevation Beamwidth 9 deg.

Electrical Downtilt 4 deg.

ETSI Specification EN 302 326 DN2

Dimensions 700x145x79mm

Weight 3.9 kg

Windloading 160 mph

Frequency Range 2.3-2.7GHz

Gain 15.0-16.0

Polarization Dual Linear

Cross-pol Isolation 28dB min.

Max VSWR 1.5:1

Hpol Beamwidth (6dB) 123 deg.

Vpol Beamwidth (6dB) 118 deg.

Elevation Beamwidth 9 deg.

Electrical Downtilt 4 deg.

ETSI Specification EN 302 326 DN2

Dimensions 700x145x93 mm

Weight 4.0 kg

Windloading 160 mph

Hi-Gain Airmax Sector 2G-120-15

Antenna and Electrical Characteristics

Return Loss

V-Pol Azimuth

V-Pol Elevation

H-Pol Azimuth
