Installation Requirements
Installation Requirements
• CAT5/6 cable
• Phillips screwdriver
• Drill and drill bit (6 mm for wall-mounting or 3 mm for
ceiling-mounting)
• Optional: Drywall or keyhole saw (to cut 25 mm hole for
Ethernet cable feed)
Hardware Installation
The UniFi AP can be mounted on the wall or ceiling. Perform the
steps for the appropriate installation:
Wall Mount
1. Position the Mounting Bracket at the desired location on the
wall with the cable feed slot pointed towards the floor.
2. Use a pencil to mark the four mounting holes. Use a 6 mm drill
bit to drill the mounting holes.

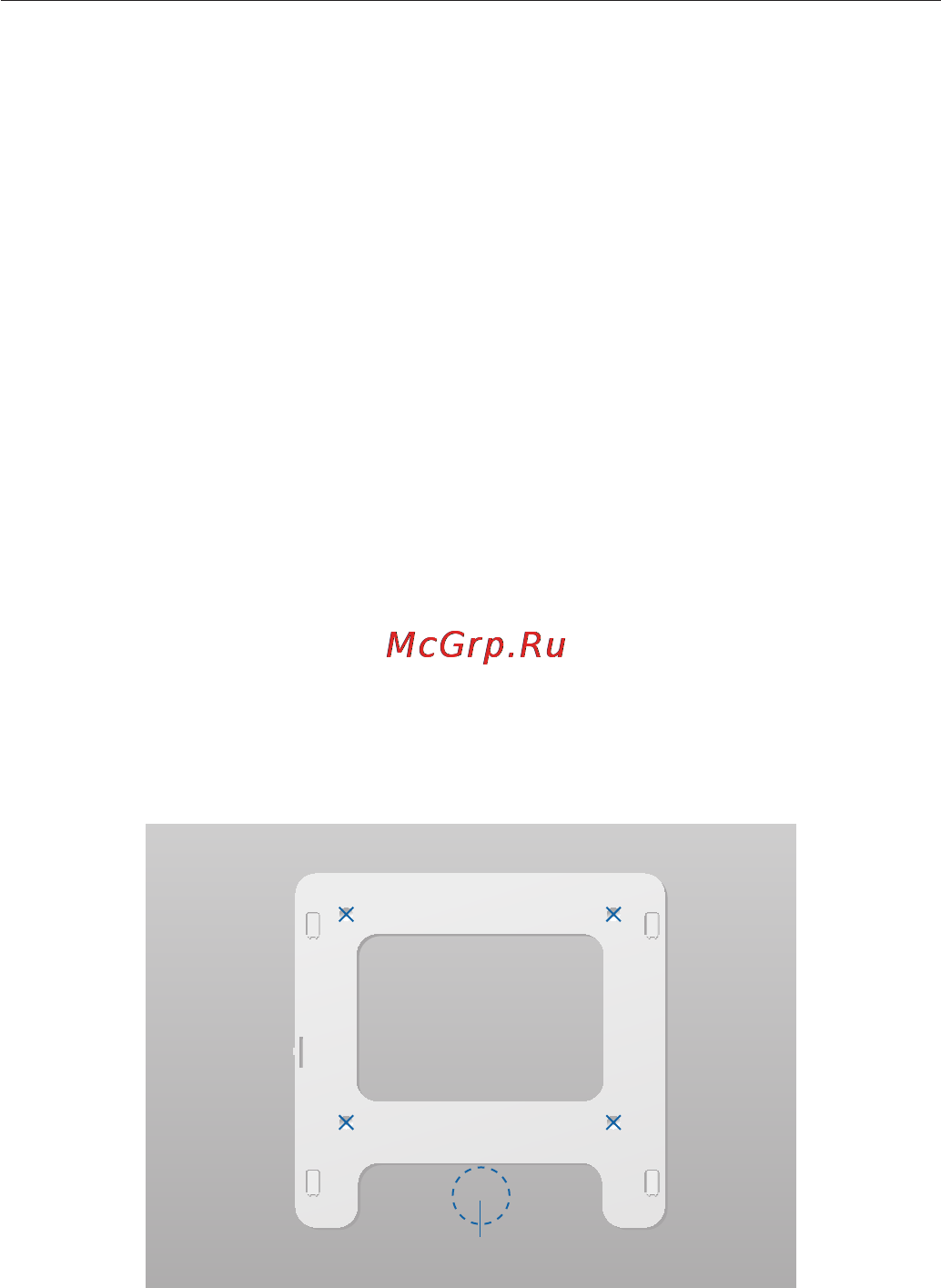

Top
Optional 25 mm Hole for
Ethernet Cable Feed through Wall
3. Follow the instruction for your type of Ethernet cable feed:
- Feeds Through the Wall Cut or drill a circle approximately
25 mm in diameter, just below the bottom center of the
Mounting Bracket (as shown above). Then feed the CAT5/6
cable through the hole.
- Feeds Along the Mounting Surface Remove the Cable
Feed Plug on the side of the UniFi AP.
