Hardware Installation

The UniFi AP can be mounted to a wall or on a pole. Perform

the steps for the appropriate installation:

Wall Mount

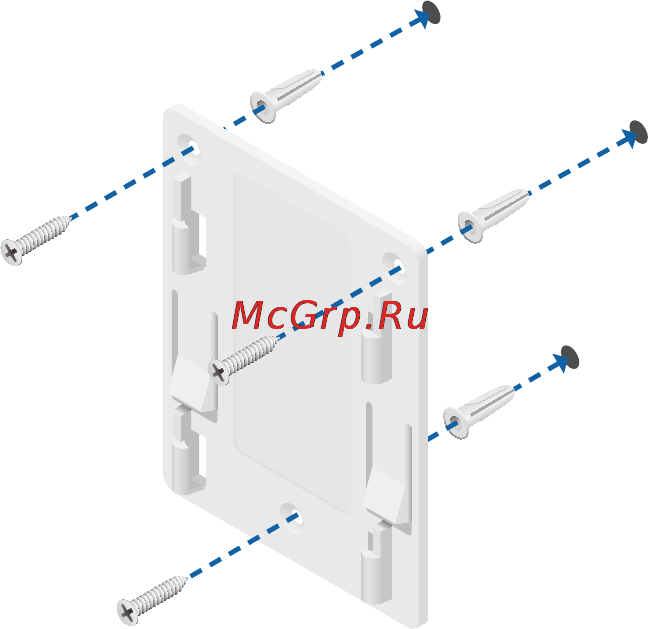

To mount the AP on a wall, use the included Wall Mount

Bracket, Screws, and Screw Anchors.

1. Place the Wall Mount Bracket at the desired location on the

wall, with the one screw hole pointed towards the ground.

2. Use a pencil to mark the three holes on the wall.

3. Use a 6 mm drill bit to drill the holes in the wall.

4. Insert a Screw Anchor into each hole.

5. Secure the Wall Mount Bracket to the wall with the

self-tapping Screws.
