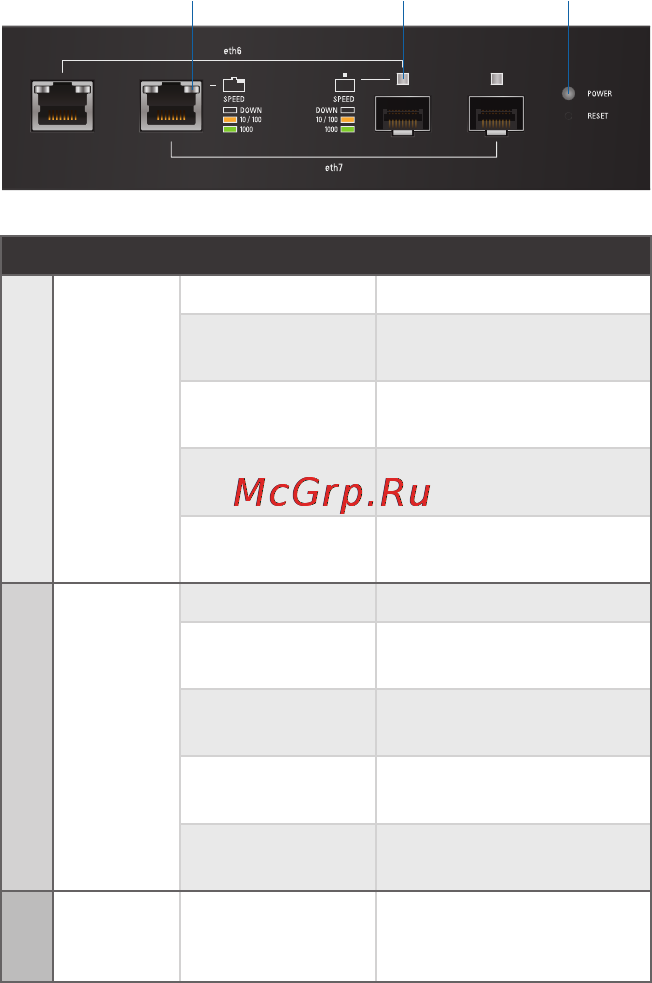

Front Panel LEDs
The LEDs on the left side of the RJ45 ports are not used at this
time. Below is a description of the other LEDs:
PowerSFP: Speed/Link/ActRJ45: Speed/Link/Act
LED State Status
RJ45 (eth0-7)
Speed/
Link/Act
Off No Link
Amber
Link Established at
10/100Mbps
Amber Flashing
Link Activity at
10/100Mbps
Green
Link Established at
1000Mbps
Green Flashing
Link Activity at
1000Mbps
SFP (eth6-7)
Speed/
Link/Act
Off No Link
Amber
Link Established at
10/100Mbps
Amber Flashing
Link Activity at
10/100Mbps
Green
Link Established at
1000Mbps
Green Flashing
Link Activity at
1000Mbps
Power
White
EdgeRouter PRO is
poweredon.
