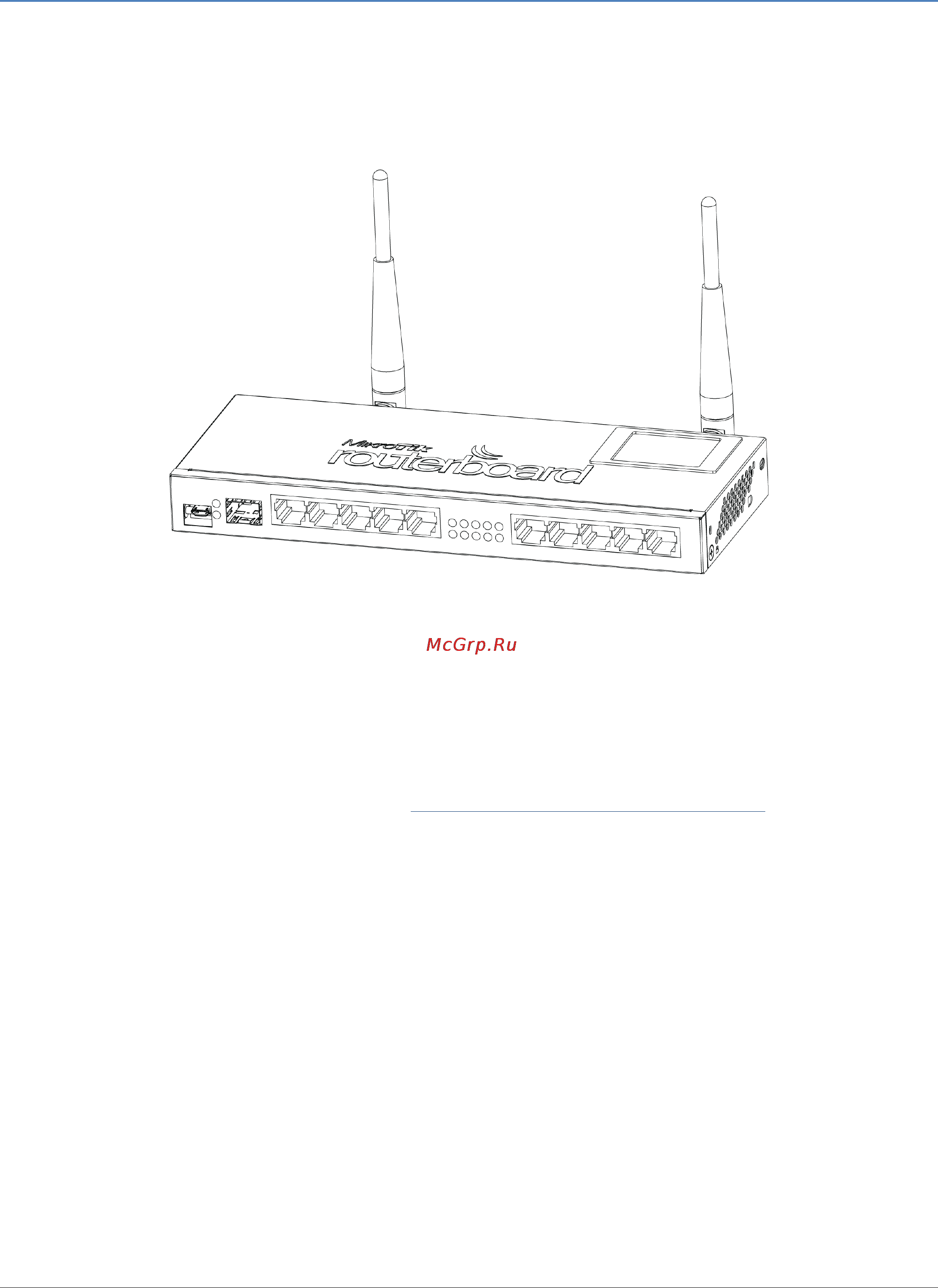

RouterBOARD+2011U+ se ries+

Quick&Setup&Guide&and&Warranty&Information&

The$RB2011$is$a$small$fo rm$factor$eth e rn e t$ro u te r$w ith $5 $G ig a b it$E th er n et$ports$and$5$Fast$Ethernet$ports.$The$RB2011U$

series$includes$four$models$RB2011UAS3IN$(USB ,$SFP ,$indo o r$case ),$RB2011UAS3RM$(USB,$SFP,$rackm o u nt),$RB2011UAS3

2HnD$(adds$wireless$functionality)$and$RB2011UAS32HnD 3IN $(adds$indoo r$ca se$a nd $and$indoor$antennas).$

First&use&

The$device$comes$preinstalled$with$RouterOS$and$is$ready$to$use.$RB2011$is$compatible$with $R o u te rOS$v5.9$and$newer,$if$

your$device$comes$preinstalled$with$an$earlier$version,$please$upgrade$before$using$it.$$

The$Ethernet$ports$2K10$have$a$default$IP$address$for$connecting:$192.168.88.1+username$is+admin+and$there$is$no+password.+

Please$connect$with$your$web$browser$to$this$IP$address$and$choose$Webfig$to$configure$it.+Ether1+is$configured$a s$a $D H C P $

client,$for$connecting$to$your$ISP.$

See$this$page$for$connection$and$configuration$guides:$http://wiki.mikrotik.com/wiki/Category:Manual$

Powering&

The$device$accepts$powering$from$either$the$power$jack,$or$from$the$LAN1$Ethernet$port:$

• DirectKin p u t$p o wer$jack$(5.5 mm$outs id e$a n d $2 mm$insid e$d ia meter,$fema le ,$p in $p o sitiv e$p lu g )$a cc e p ts$

$8K30V$DC$(overvoltage$protection$starts$at$30V).$

• Eth1$port$accepts$8K30V$DC$input$(at$the$board;$higher$voltage$needed$to$compensate$for$power$loss$on$long$ca b le s)$

from$nonKstandard$(passive)$Power$over$Ethernet$injectors.$The$board$does+not+work$with$IEEE802.3af$compliant$

48V$power$injectors$

• The$IN$and$RM$models$include$a$110 /2 2 0V $PSU$which$is$already$plugged$into$the$power$jack$inside$the$case$

Extension&Slots&and&Ports&

• Five$10/100/1000$(Gigabit)$Ethernet$ports$(Auto$MDI/X)$

• Five$10/100$(Fast)$Ethernet$ports$(Auto$MDI/X)$

• One$8K30V$DC$power$jack$

• SFP$port$for$SFP$module$(module$not$included )$
