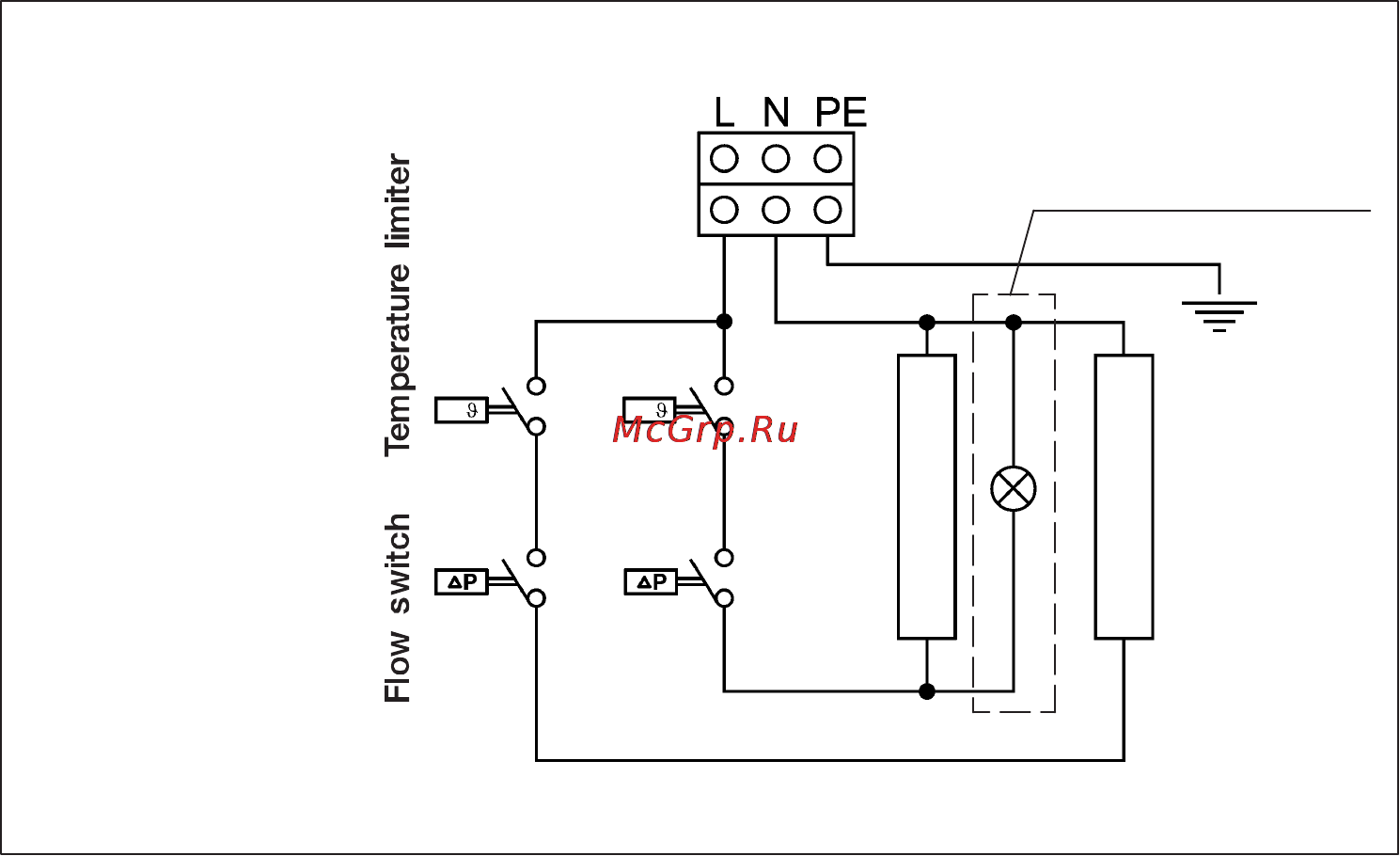

Electrical connection The appliances must be connected with a NYM J3x4 mm2 mains lead Leads with a large cross section must not be used Connect the appliance in accordance with the connection diagram on the strip terminal Screw the housing cover back on ED5 2S U ED6 2S L N PE 17
