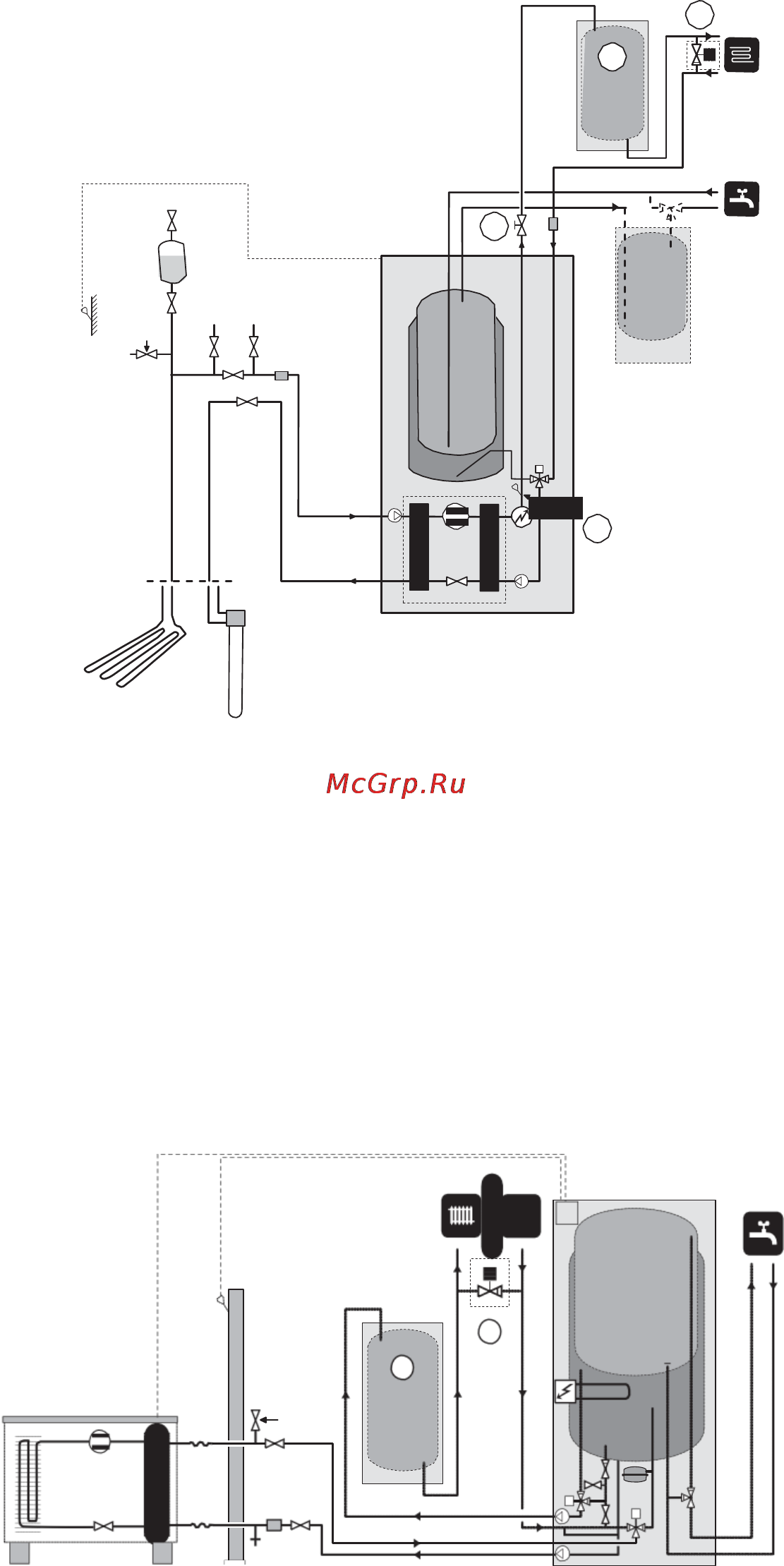

INSTALLATION INSTRUCTIONS
GB
UKV
102
8
Docking
Volume
increasing
and reducing of heat spikes
49
120
81
89
VP1
This
docking
is used
when the
system volume is
insufficient or to
reduce
heat
spikes
in the heating system.
To
elimi-
nate heat
spikes
in the heating
system,
a
UKV
tank
is installed. Select diagonal connections (e.g.
left up and right
down).
Plug any connections
that
are
not
used.
An automatic
by-pass valve
must be
installed
if there
is
a
risk
of poten-
tial 0-flow.
Volume
increasing
and reducing of heat spikes
RC
49
120
VP1
VVM
300
In
cases
where the
system volume
in the heating
system is
below 20 l/kW
(heat
pump output at
7/45°C)
and/or the
flow
is choked
uncontrolled, a
UKV
tank
(120) is installed as
a
volume
and flow
increaser. Plug any connections
that are
not
used.
An automatic
by-pass valve
must be
installed
if there
is
a
risk
of potential 0-flow.
Note!
These are
outline
diagrams.
Actual
installations
must be
planned according
to
applicable
standards.
