Fubag IN 176 (68431) [5/16] Illustration of signs

www.fubag.ru

Omperator's anual

- 4 -

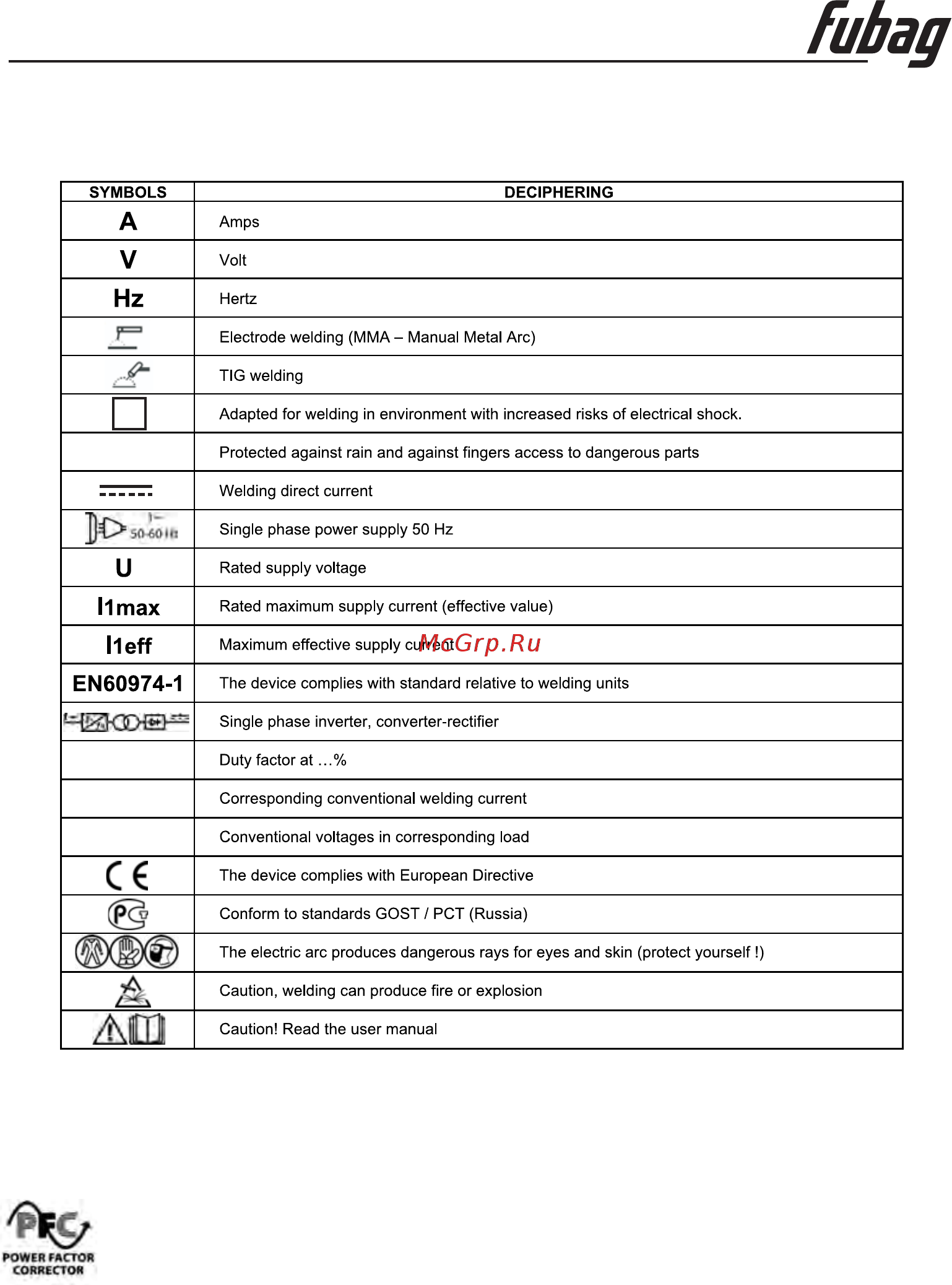

4. Illustration of signs

5 ower supply.P

X: 45%; 60%; 100%

I : 160A; 140A; 110A

U: V; ;

26,4 25,6 24,4VV

IP21

- is delivered with a 16А plugged on a 220 (50 ) socket with earth.

- is supplied with the in-built power factor correction (PFC) block to

regulate the efficiency of using the current output. Due to this block the machine

could be connected via the 16А-220 plug even in the conditions of intensive

operation. For the same power machines without PFC, the plug 32A-220 is

required. Th machine is ideal for construction works with the lengthened cable,

where the voltage drops are frequent. Also, the exclusive quality of welding is

provided by this machine through the output control circuit, which is controlled by a

microprocessor.

IN 176 V Hz

IN 206 LVP
