TIG m with functionode LiftArc

The DC TIG welding requires a protective gas (argon).

Follow the steps as below :

- Connect the earth clamp on the positive (+) pole.

- Connect a TIG torch with valve on the negative (-) pole.

- Connect the pipe of the gas bottle and adjust the flow.

- Select the TIG position with the selector .

-Adjust the wished current (display ) using the keys and .

- To boot: touch the electrode on the welding part; raise the electrode 2 to 5 mm of the part to be

welded.

- aise the torch for a quick gesture, do not cut the gas only after electrode cooling.

This corresponds to the end of welding time required for the

gradual decline in the welding current until the stop of the arc.

This function helps to avoid cracks and craters at end of

welding.

This function is not activated (timer at 0 sec). To activate it,

proceed as follow:

- Press 3 seconds on the selector button .

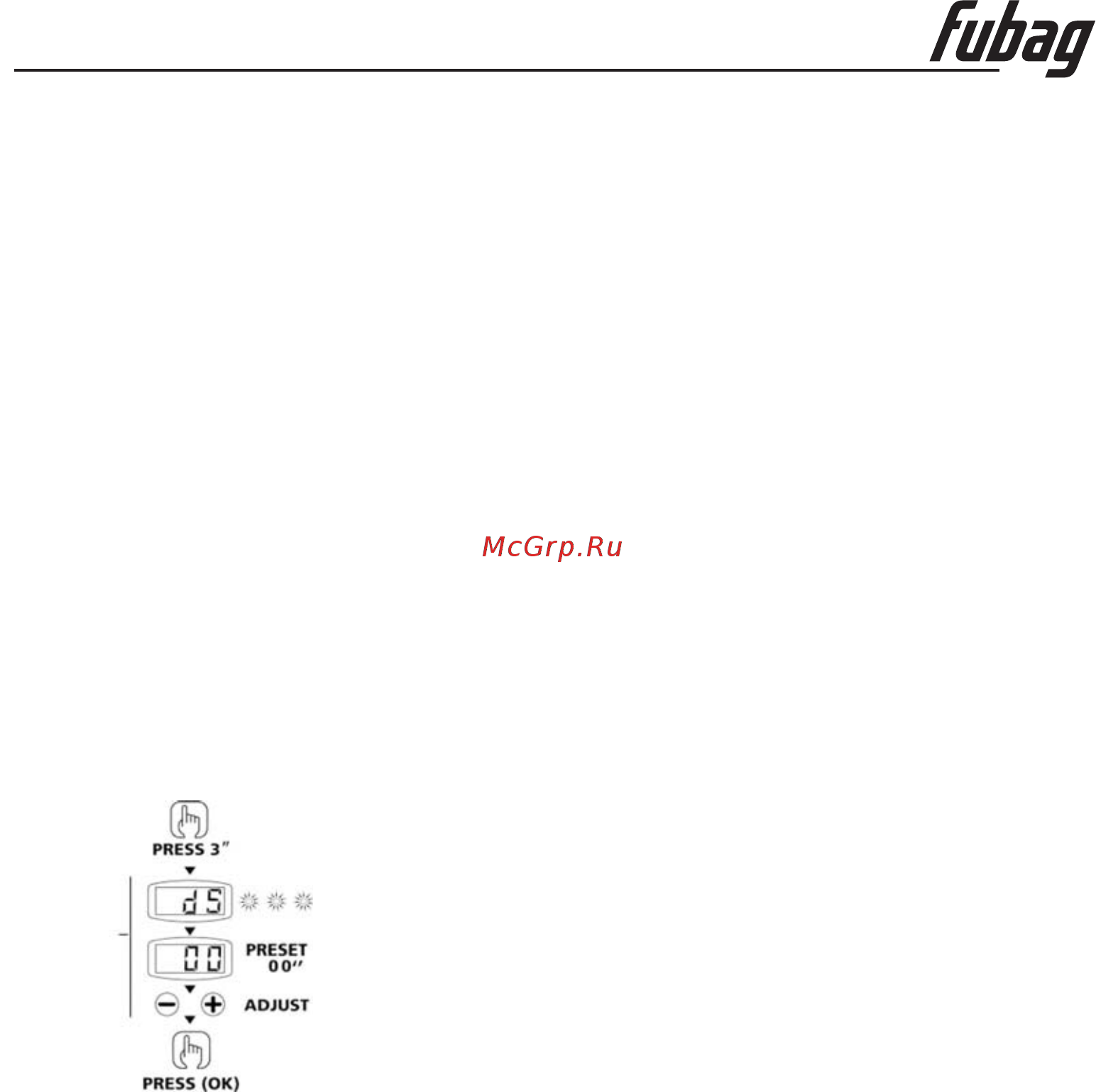

- The inscription "dS" (Downslope) starts blinking then one

figure appears.

- Set the automatic arc slope you wish from 0 to 10 sec (display

) using key and .

145

AutomaticArc slope with time adjustable (for IN 206 LVP)

Functjon

activation
