40
10
10
SET MODES

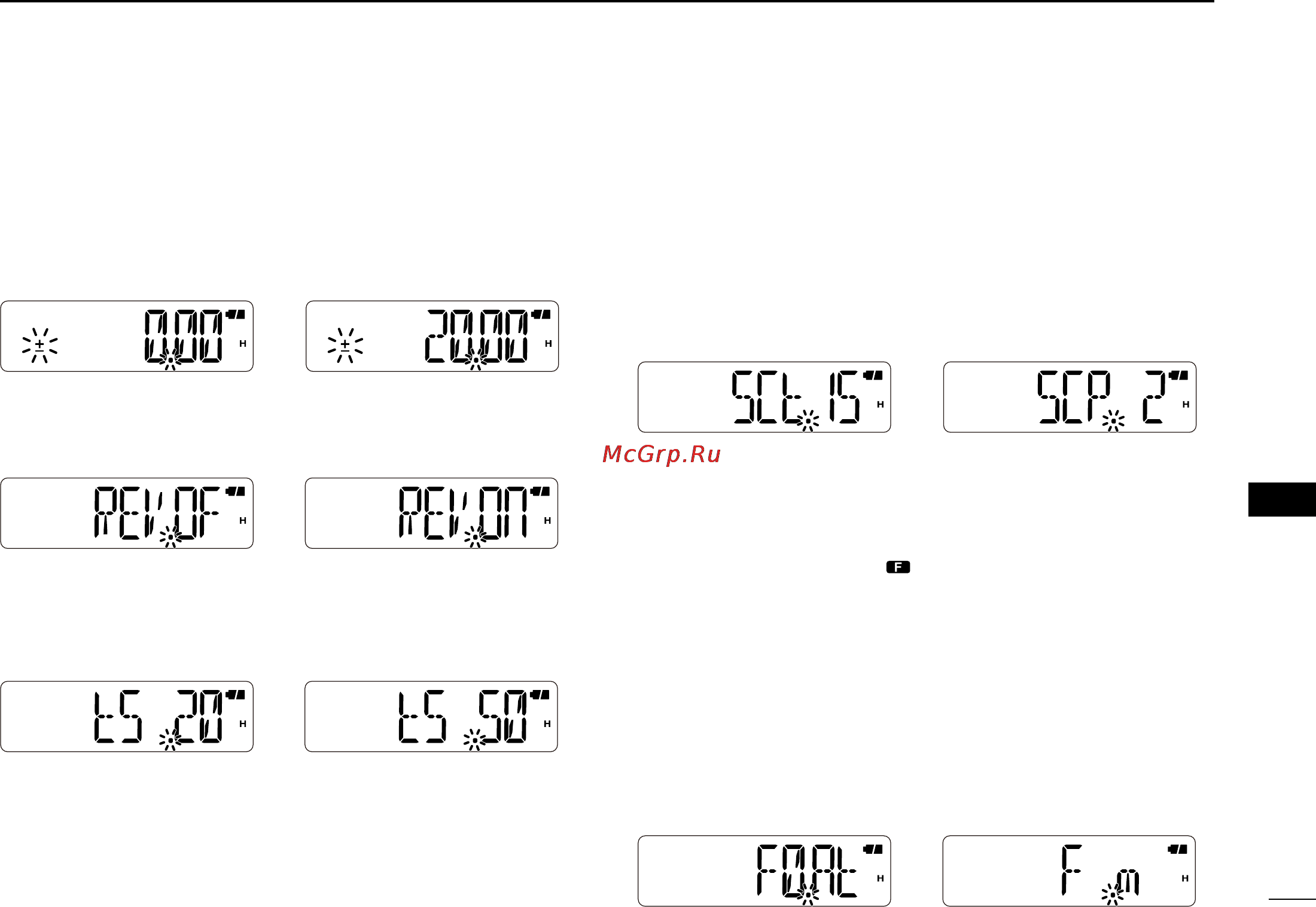

D Frequency offset
Selects the frequency offset between 0 and 20 MHz, for re-
peater operation.
The frequency offset means the difference between the
transmit and receive frequencies.
(default: differs depending on the version)
D Reverse duplex function
Turns the reverse duplex function ON or OFF. (default: OFF)
D Tuning step
Selects the tuning step from 5, 10, 12.5, 15, 20, 25, 30 and
50 kHz.
(default: differs depending on the version)
D Scan resume setting
Selects the scan resume setting between SCt. 5, SCt. 10,
SCt. 15, and SCP. 2.
When a signal is received during a scan, the scan pauses
and then resumes, according to the scan resume setting.
• SCt. 5/10/15 : The scan pauses for 5, 10 or 15 sec., and then re-
sumes. (default: SCt. 15)
• SCP.2 : The scan pauses until the received signal disap-
pears, and then resumes after 2 sec.
D Function key timer
Push
[FUNC](M)
to enter the Function mode, and then push
a keypad key to activate it’s second function.
• During the Function mode, “ ” is displayed on the LCD.
Set the time between when Function mode is entered, and
how long it remains activated after you push the keypad key
to activate it’s second function.
• F0.At : Exits the Function mode immediately after a key is
pushed to activate it’s second function. (default)
• F1/2/3.At :
The Function mode remains activated for the selected pe-
riod
after a key is pushed to activate it’s second function
.
• F .m : The Function mode remains activated until
[FUNC](M)
is pushed again, even after a key is pushed
to activate
it’s second function.
