Icom IC-V80E [8/64] Accessories
![Icom IC-V80E [8/64] Accessories](/views2/1074095/page8/bg8.png)
11

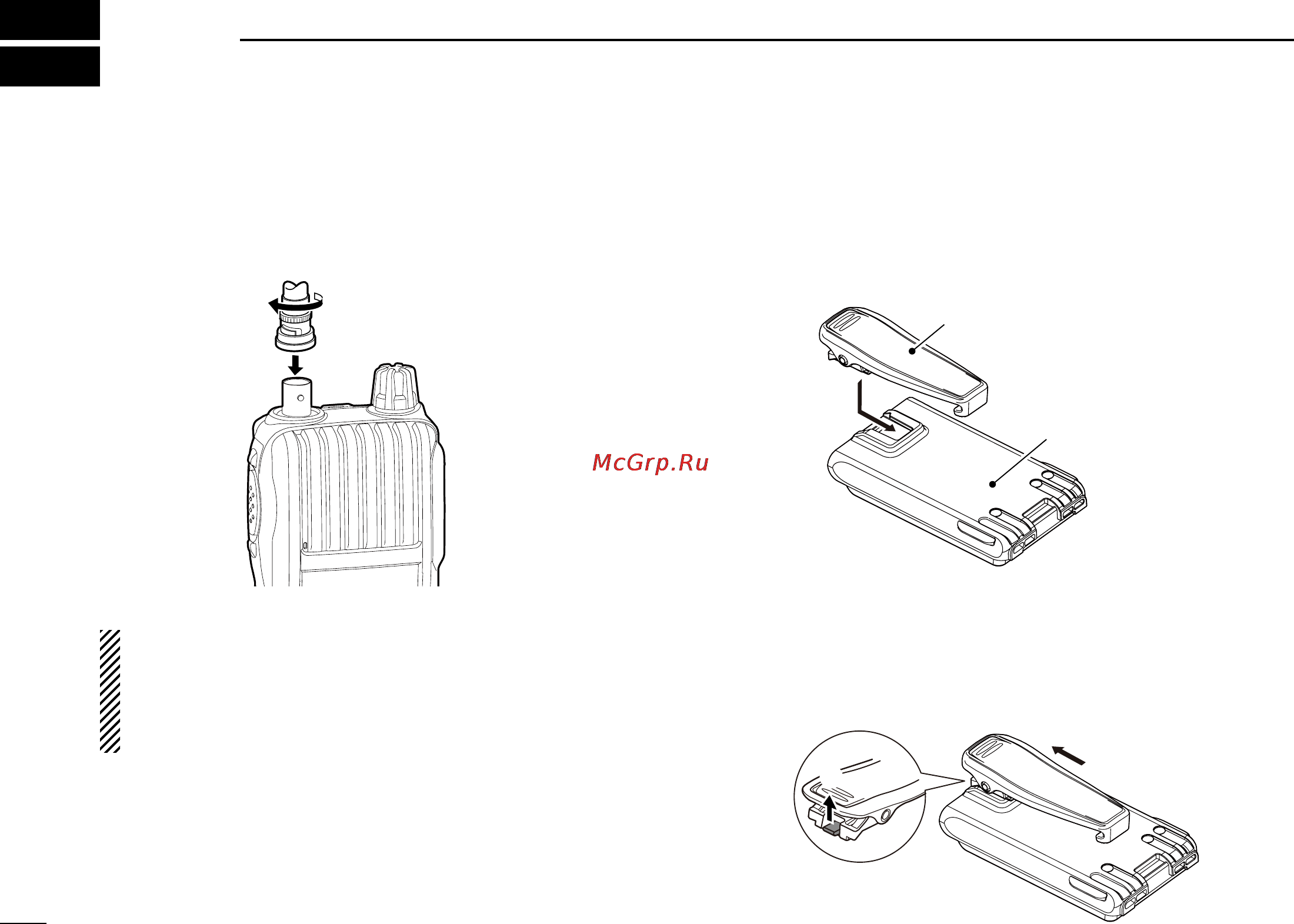

■ Antenna
Insert the antenna into the antenna connector and twist the
antenna to lock it in place.
CAUTION:
•
NEVER HOLD just the antenna when carrying the trans-
ceiver.
• Transmitting without an antenna will damage the trans
-
ceiver.
■ Belt clip
To attach the belt clip:
➥ Slide the belt clip in the direction of the arrow until the belt
clip locks in place, and makes a ‘click’ sound.
To detach the belt clip:
q Remove the battery pack/case from the transceiver, if it is
attached. (p. 2).
w Lift the tab up (q), and slide the belt clip in the direction
of the arrow (w).
ACCESSORIES
1
Belt clip
Battery pack/case
q
w
