PANEL DESCRIPTION

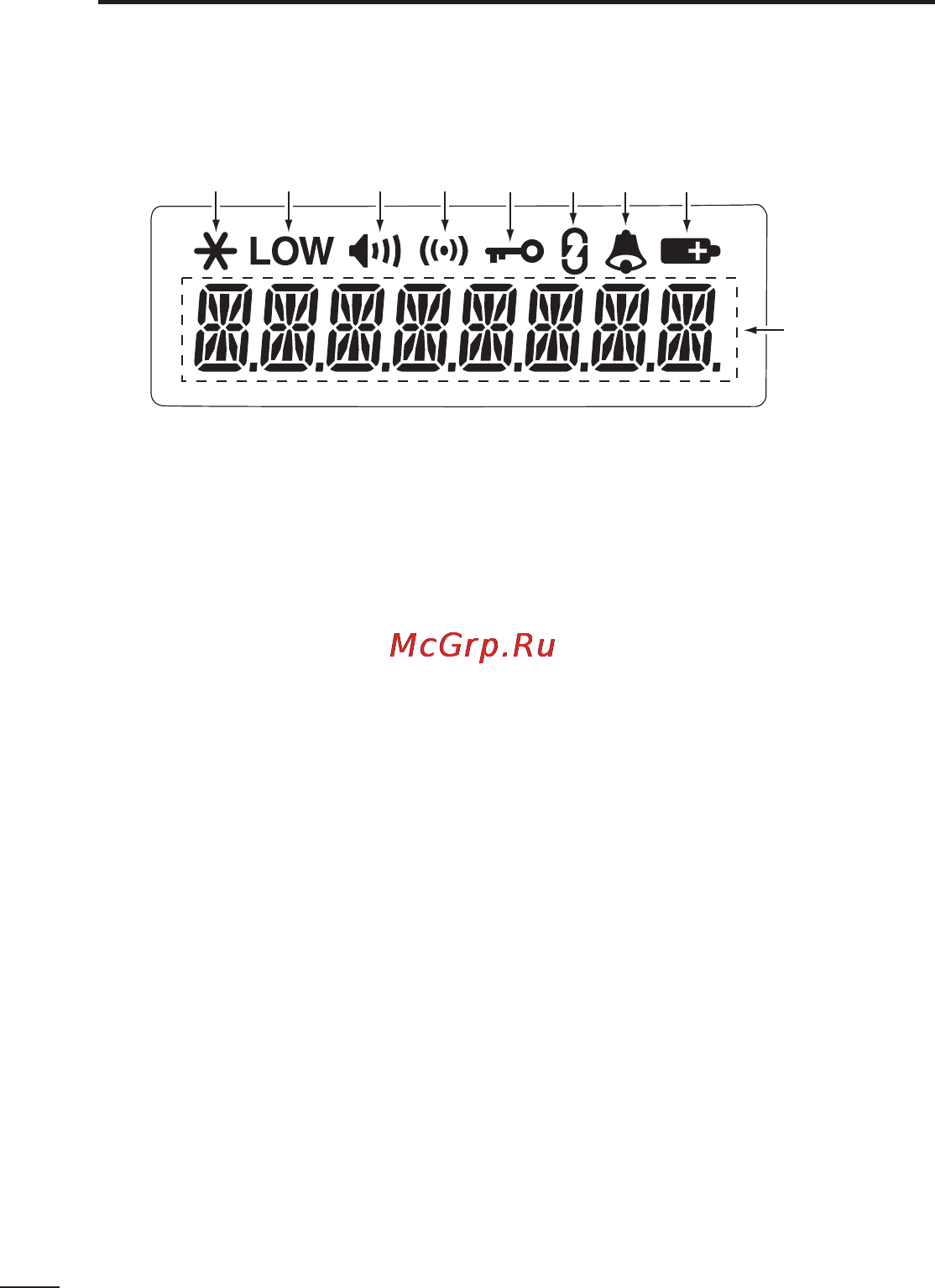

■ Function display
q RECORD INDICATOR
➥ Appears when an unread message is in the memory.
➥ Blinks while recording.
w LOW POWER INDICATOR
Appears when low output power is selected.
e AUDIBLE INDICATOR
➥ Appears when the channel is in the ‘audible’ (unmute) condition.
➥ Appears when the specified 2/5-tone/BIIS*
1
/MDC*
2
code is re-
ceived.
r COMPANDER INDICATOR
Appears when the compander function is activated.
t KEY LOCK INDICATOR
Appears when the key lock function is activated.
y SCRAMBLER INDICATOR
Appears when the voice scrambler function is activated.
u BELL INDICATOR
Appears/blinks when the specific 2/5-tone/BIIS*
1
/MDC*
2
code is
received, according to the pre-programming.
q tiuyrew
o
