Icom IC-M422 [8/64] Panel description
![Icom IC-M422 [8/64] Panel description](/views2/1074282/page8/bg8.png)
2
PANEL DESCRIPTION
New2001
2

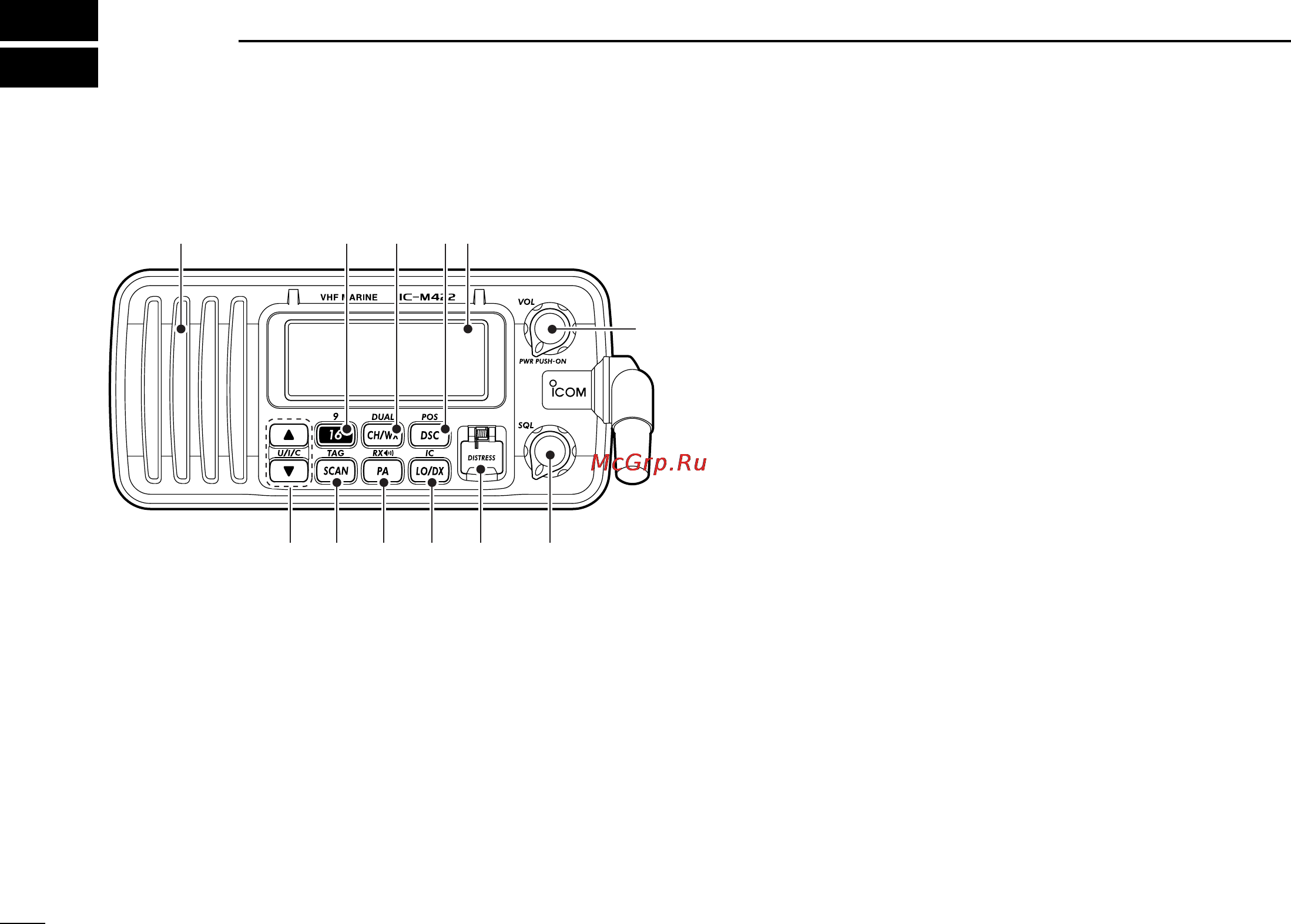

■ Front panel
q CHANNEL 16/CALL CHANNEL KEY [16•9]
➥ Push to select Channel 16. (p. 5)
➥ Push for 1 sec. to select Call channel. (p. 5)
•“CALL” appears when Call channel is selected.
➥ Push for 3 sec. to enter Call channel programming con-
dition when Call channel is selected. (p. 8)
➥ While pushing [CH/WX
•DUAL], push to enter the chan-
nel comment programming condition. (p. 9)
➥ Move the cursor backward while in the channel com-
ment programming condition. (p. 9)
➥ While turning power ON, push to enter Set mode.
(p. 32)
w CHANNEL/WEATHER CHANNEL KEY [CH/WX•
DUAL
]
➥ Selects and toggles the regular channel and Weather
channel when pushed momentarily. (p. 6)
➥ Push for 1 sec. to start Dualwatch or Tri-watch. (p. 12)
➥ Push to stop Dualwatch or Tri-watch when either is acti-
vated. (p. 12)
➥ Advance the cursor while in the channel comment pro-
gramming condition. (p. 9)
e DSC/POSITION KEY [DSC•
POS]
➥ Push to select the DSC menu. (p. 13)
➥ Push for 1 sec. to show the current position from a GPS
receiver. (p. 15)
r POWER/VOLUME CONTROL [VOL] (p. 7)
➥ Push for 2 sec. to turn power ON and OFF.
➥ Rotate to adjust the audio level.
t SQUELCH CONTROL [SQL]
Rotate to set the squelch threshold level. (p. 7)
y DISTRESS KEY [DISTRESS]
Push for 5 sec. to transmit a Distress call. (p. 16)
u ATTENUATOR/INTERCOM KEY [LO/DX•
IC]
➥ Push to toggle the Attenuator function ON or OFF. (p. 7)
•“LOC” appears when the Attenuator function is turned ON.
➥ Push for 1 sec. to activate an optional Intercom func-
tion. (p. 30)
➥ Push and hold to calls the optional HM-157
COMMAND
-
MIC II
™ while in Intercom mode. (p. 30)
qwe
r
Speaker
Function
display (p. 4)
!0 oiuy t
!IC-M422.qxd 05.2.23 2:20 PM Page 2 (1,1)
