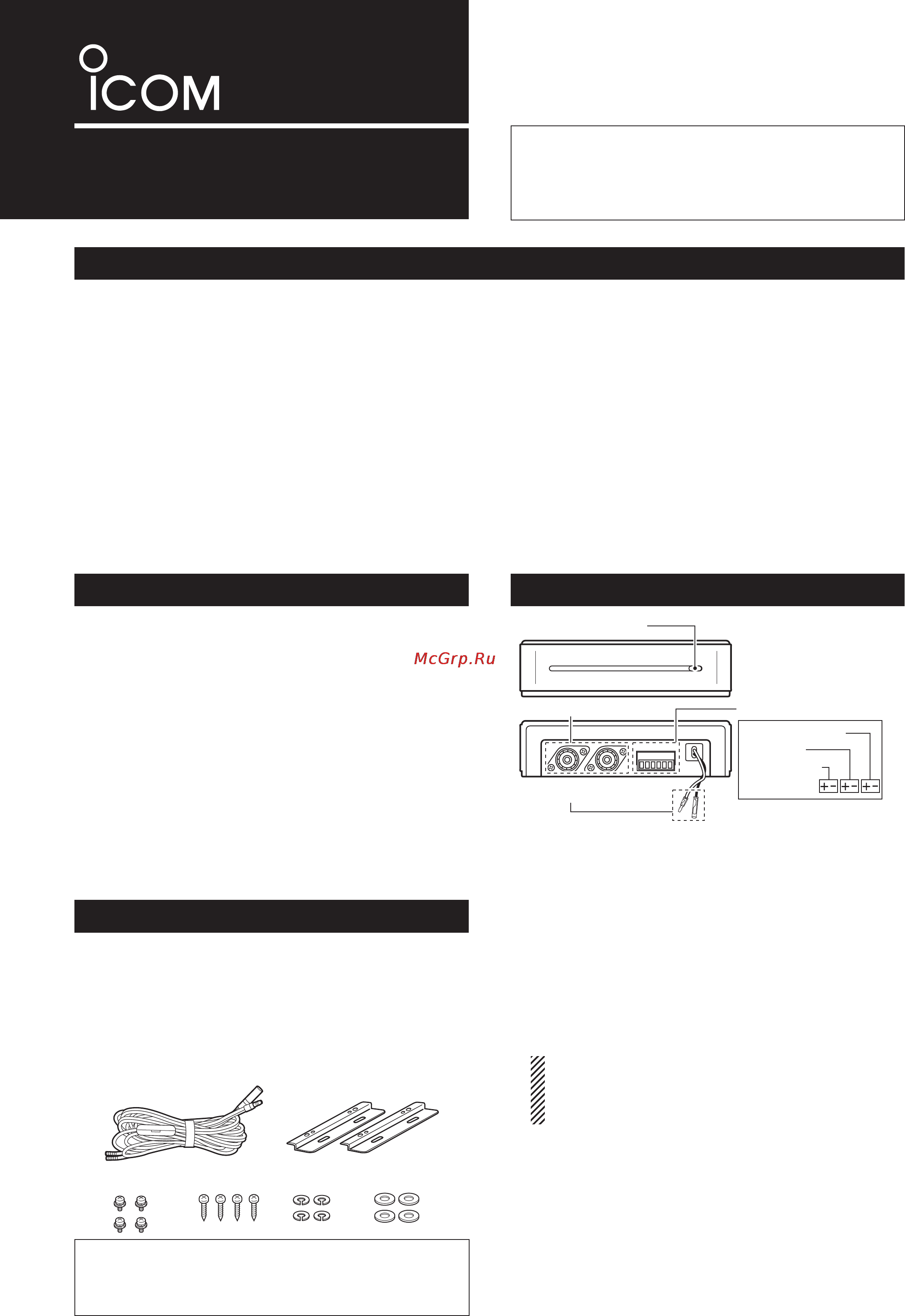

INSTRUCTIONS

AIS RECEIVER

MXA-5000

Thank you for purchasing the MXA-5000 AIS

RECEIVER.

Please read these instructions carefully before

installation and operation.

• R NEVER apply AC power to the [DC 12 V] connector on

the rear panel. This could cause a fire or damage the re-

ceiver.

• R NEVER connect the receiver to a power source of more

than 16 V DC such as a 24 V battery. This will damage the

receiver.

• R NEVER connect the receiver to a power source using

reverse polarity. This will damage the receiver.

• R NEVER cut the DC power cable between the DC plug

and fuse holder. If an incorrect connection is made after

cutting, the receiver may be damaged.

• R NEVER expose the receiver to rain, snow or any liquids.

The receiver may be damaged.

• R NEVER touch the receiver with wet hands. This may re-

sult in an electric shock or damage the receiver.

• R NEVER apply more than 25 W RF power or out of

VHF marine frequency (156.000 to 161.450 MHz) to the

[RADIO] connector on the rear panel. This will damage the

receiver.

• DO NOT use or place the receiver in areas with tempera-

tures below –20°C (–4°F) or above +60°C (+140°F) or in

areas subject to direct sunlight, such as the dashboard.

• DO NOT use chemical agents such as benzine or alcohol

when cleaning, as they can damage the receiver’s sur-

faces.

• Place unit in a secure place to avoid inadvertent use by

children.

r t ye

PRECAUTIONS

PANEL DESCRIPTIONS

DC power connector

Antenna connectors

Multi connector

Power indicator

PC DATA OUT

DATA IN

DATA OUT

q POWER INDICATOR

Lights green during power ON.

w ANTENNA CONNECTORS

m [ANTENNA]

Connects to a VHF marine antenna with a PL-259

connector.

m [RADIO]

Connects to a VHF marine transceiver with a PL-259

connector.

• VHF marine transceiver: Output power 25 W nominal and

transmit frequency range from 156.000 MHz to 161.450

MHz.

When a VHF marine transceiver is connected with an

antenna through the MXA-5000, its receive sensitivity

will be reduced (Insertion loss: approx. 3 dB). This is

normal, and does not indicate the receive’s malfunction.

e DC POWER CONNECTOR [12V DC]

Connects the supplied DC power cable from this con-

nector to an external 12 V DC power source.

r MULTI CONNECTOR

m [PC DATA OUT]

Connects to a PC.

m [DATA IN]

Connects to a GPS receiver.

m [DATA OUT]

Connects to a navigation equipment.

q DC power cable ............................................................. 1

w Angle .............................................................................. 2

e Set screws (M3×6 mm) .................................................. 4

r Self-tapping screws (M5×20 mm) .................................. 4

t Spring washers .............................................................. 4

y Flat washers ................................................................... 4

1 mm =

/32 inch

SUPPLIED ACCESSORIES

Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incor-

porated (Japan) in the United States, the United Kingdom, Germany, France,

Spain, Russia and/or other countries.

All other products or brands are registered trademarks or trademarks of their

respective holders.

m Dualwatch operation

Two independent receivers can simultaneously receive

CH87B (161.975 MHz) and CH88B (162.025 MHz).

m Power divider bult-in

A power divider is built-in the MXA-5000.

This provides

easy installation as well, since no extra antenna is

necessary— just connect the receiver between your VHF

marine transceiver and an antenna.

• The internal power divider protects the receiver from a transmit

signal of the VHF marine transceiver.

m GPS receiver is connectable

When a GPS receiver is connected, the GPS information

is added to the received AIS information, and can be sent

to the connected PC or navigation system.

FEATURES
