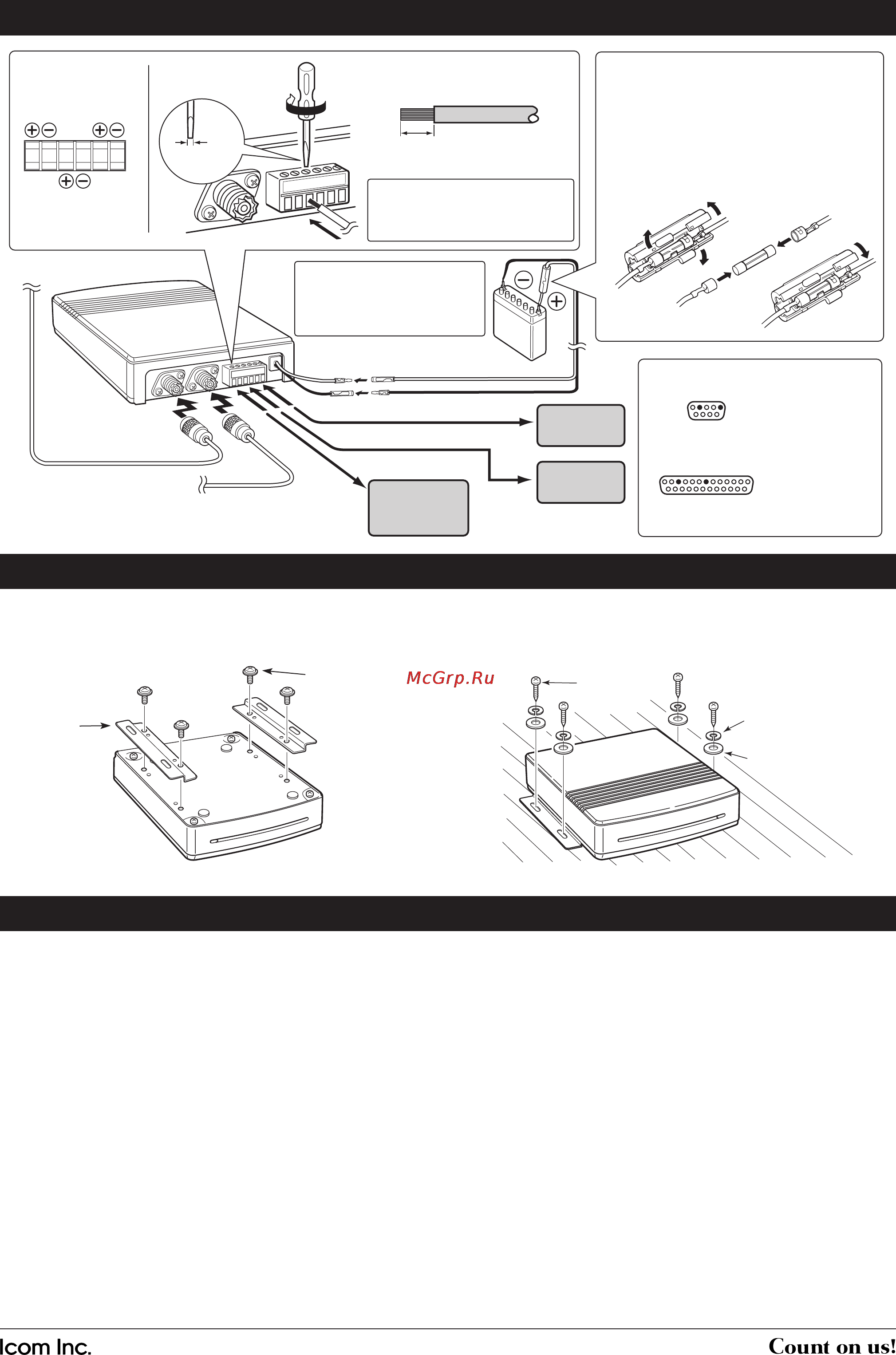

q Attach the supplied angles to bottom side of the receiver,
and tighten the two supplied screws (M3×6 mm) on each
angle.
Set screws
Angle
w Mount the receiver securely with the four supplied screws
(M5×20 mm) to a flat surface which is more than 10 mm
(
13
/32 inch) thick and can support more than 2 kg (4.4 lb).
Flat washer
Spring washer
Self-tapping
screw
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
A-6721H-1EX Printed in Japan
© 2008 Icom Inc.
DATA
OUT
AWG28 to AWG16
PC DATA
OUT
PC DATA OUT
Red
Black
DATA IN
DATA OUT
DATA IN
GPS
receiver
Navigation
equipment
PC
12 V battery
AIS receiver
to antenna
VHF Marine transceiver
Wire information Fuse replacement
Bolting torque
0.22–0.25 N·m
Stripped skin length
6–8 mm
One fuse is installed in the supplied
DC power cable. If a fuse blows or the
receiver stops functioning, track down
the source of the problem, if possible.
Re pl ac e th e da ma ge d fu se w it h
properly rated fuse.
PC conncetion
DO NOT use a solid conductor
cable, otherwise the connected
cable may be disconnected.
CAUTION:
NEVER connect a 24 V DC
power source directly. This
will damage the receiver.
This connection is not necessary
if you
have no VHF marine transceiver.
1 5
6 9
1 13
14 25
D-sub 9 Pin
D-sub 25 Pin
Pin 2: Data
Pin 5: Ground
Pin 3: Data
Pin 7: Ground
Less than
2 mm
Fuse rating: 0.5 A
CONNECTIONS
INSTALLATION
SPECIFICATIONS
D General
• Frequency coverage : 161.975 MHz, 162.025 MHz
• Type of emission : 16K0F1D (GMSK)
• Antenna impedance : 50 W nominal
• Operating temp. range : –20°C to +60°C; –4°F to +140°F
• Power supply requirement : 12 V DC nominal (10.8 V to 15.6 V)
(negative ground)
• Current drain : 0.25 A
• Dimensions (Projections not included)
Without Angle : 132(W) × 34(H) × 155(D) mm
5
3
⁄16(W) × 1
11
⁄32(H) × 6
3
⁄32(D) in
Angle attached : 158(W) × 39(H) × 155(D) mm
6
7
⁄32(W) × 1
17
⁄32(H) × 6
3
⁄32(D) in
• Weight (Approx.)
Without Angle : 400 g (14.1 oz)
Angle attached : 460 g (16.2 oz)
• DATA input interface : IEC61162-1: 2000 (4,800 bps)
Sentence formatters : RMC, GGA, GNS, and GLL
Input level : Less than 2 mA
(When 2 V is applied)
• DATA output interface :
To navigation equipment : IEC61162-2 (38,400 bps)
Sentence formatter : VDM
Output level : 5 V, 40 mA max
RS-422 ballanced type
To PC : Baud rate 38,400 bps
Sentence formatter : VDM
Output level : ±5 V, ±35 mA typical
RS-232C unballanced type
D Receiver
• Sensitivity : 0.35 µV (typical)
• Adjacent channel selectivity : More than 70 dB
• Spurious response : More than 70 dB
• Intermodulation : More than 65 dB
• Hum and noise : More than 40 dB
• Conducted spurious emission
: Less than –57 dBm
All stated specifications are subject to change without notice or obligation.
