Icom IC-R6 [31/96] Memory channels
![Icom IC-R6 [31/96] Memory channels](/views2/1074314/page31/bg1f.png)
18
5
MEMORY CHANNELS
4
5
■ General description
The receiver has 1300 memory channels for storage of
often-used frequencies. A total of 22 memory banks, A to R,
T, U, W and Y can be selected. Up to 100 channels can be
assigned to each bank.
D Memory channel contents
The following information can be programmed into memory
channels:
• Receive frequency (p. 11)
• Receive mode (p. 14)
• Duplex direction (+DUP or –DUP) with a frequency off-
set (p. 16)
• Tone squelch or DTCS squelch ON/OFF (p. 43)
• Tone squelch frequency or DTCS code with polarity
(pp. 41, 42)
• Tuning step (p. 11)
• Attenuator function ON/OFF (p. 15)
• Voice squelch control ON/OFF (p. 52)
• AF filter ON/OFF (p. 55)
• Scan skip setting (p. 35)
• Memory bank (p. 20)
• Memory name (p. 22)

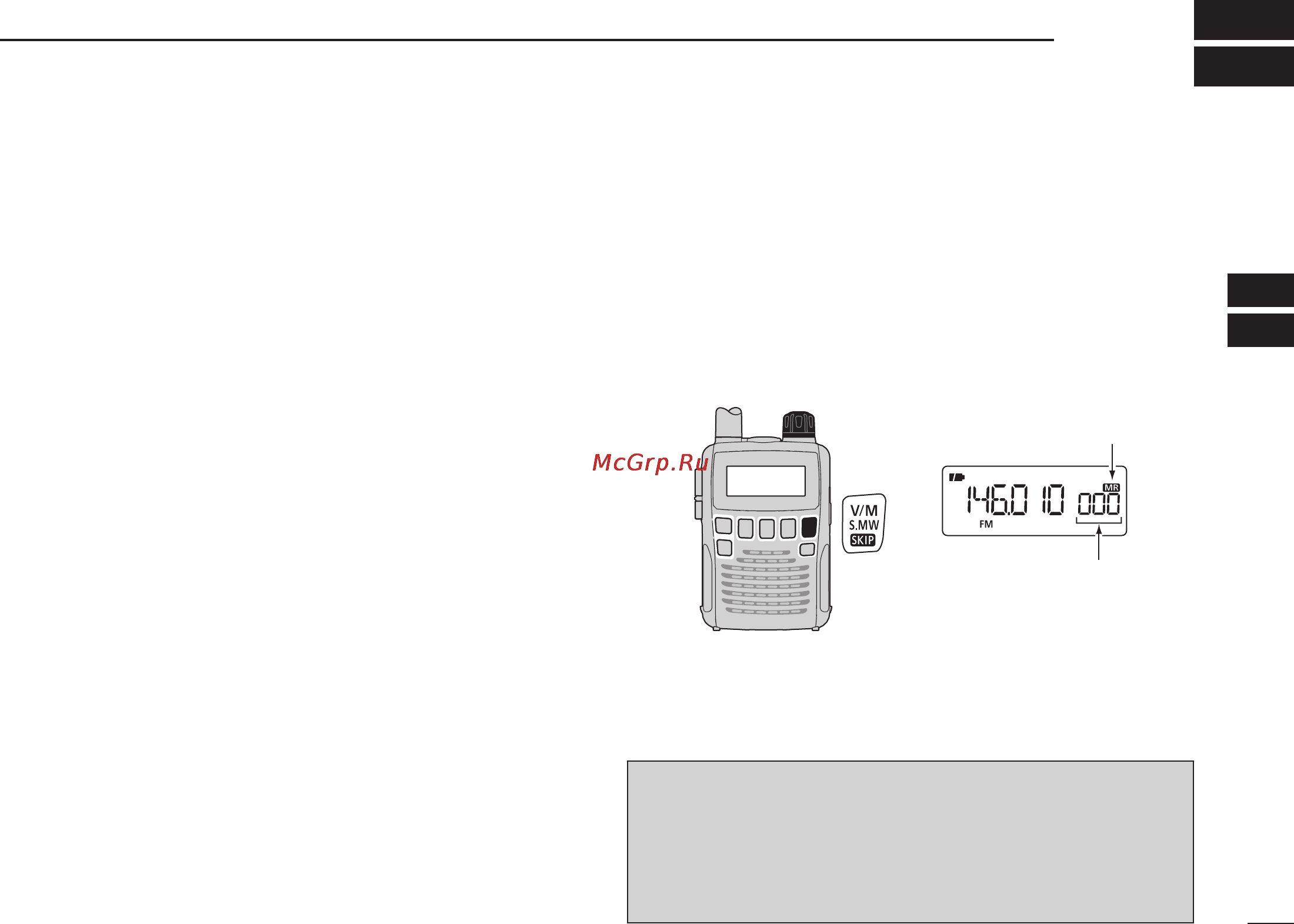

■ Selecting a memory channel
q Push [V/M] to select the memory mode.
• Push [V/M] to toggle between the VFO mode and the memory
channel mode.
w Rotate [DIAL] to select a desired memory channel.
• Only programmed channels are displayed.
• While holding down [FUNC], rotate [DIAL] to select the memory
channel in 10 channel steps.
Appears
Rotate [DIAL] to select
the memory channel.
NOTE: Memory data can be erased by static electricity,
electric transients, etc.
In addition, it can be erased by a malfunction and during
repairs. Therefore, we recommend that memory data be
written down or saved to a PC using the CS-R6
cloning
software.
