62
10
OTHER FUNCTIONS
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
e Push [SQL] on the master receiver.

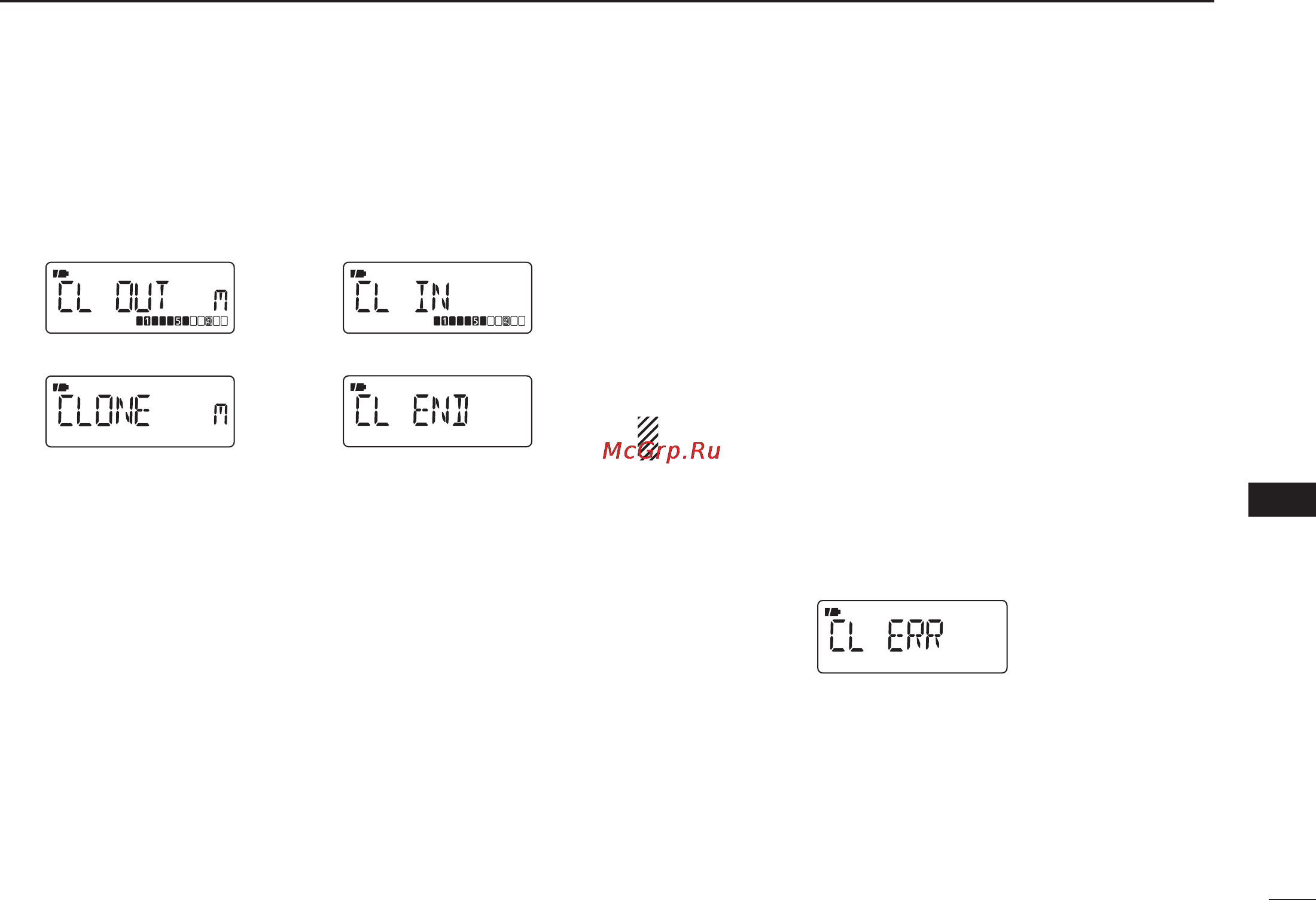

• The receiver displays the following.
During cloning
After cloning
Master receiver display Sub-receiver display
r When cloning is finished, turn power OFF, then ON to exit
the cloning mode.
D Cloning using a personal computer
Data can be cloned to and from a personal computer
(Microsoft
®
Windows
®
2000/XP/Windows Vista
®
or Windows
®
7)
using the optional CS-R6 cloning software and the option-
al OPC-478/OPC-478UC
cloning cable. Consult the CS-R6
cloning software HELP file for details.
D Cloning error
NOTE: DO NOT push any key on the receiver during
cloning. This will cause a cloning error.
When the display appears as shown below, a cloning error
has occurred.
In such a case, receiver automatically returns to the clone
standby condition and cloning must be repeated.
Microsoft, Windows and Windows Vista are registered trademarks of Microsoft
Corporation in the U.S.A. and other countries.
