Icom CY-F121S [4/21] Panel description
![Icom CY-F221S [4/21] Panel description](/views2/1074329/page4/bg4.png)
➊
MICROPHONE/SPEAKER CONNECTOR
[MIC/SP]
This 8-pin modular jack accepts the optional
microphone.
➀
+8 V DC output (Max. 10 mA)
➁
CLO (output port for PC
programming)
➂
AFO
➃
M PTT (Input port for TX control)
➄
Microphone ground
➅
Microphone input
➆
Ground
➇
CLI (Input port for PC program-
ming and
monitor control)
➋
VOLUME CONTROL [VOLUME]
Adjusts the audio output level.
➌
DEALER PROGRAMMABLE KEYS
P0, P1, P2, P3
➍
POWER SWITCH [POWER]
Push to turn the power ON and OFF.
➎
INTERNAL SPEAKER
Monitors received signals.
➏
TRANSMITTER UNIT
➐
RECEIVER UNIT
➀➇
1

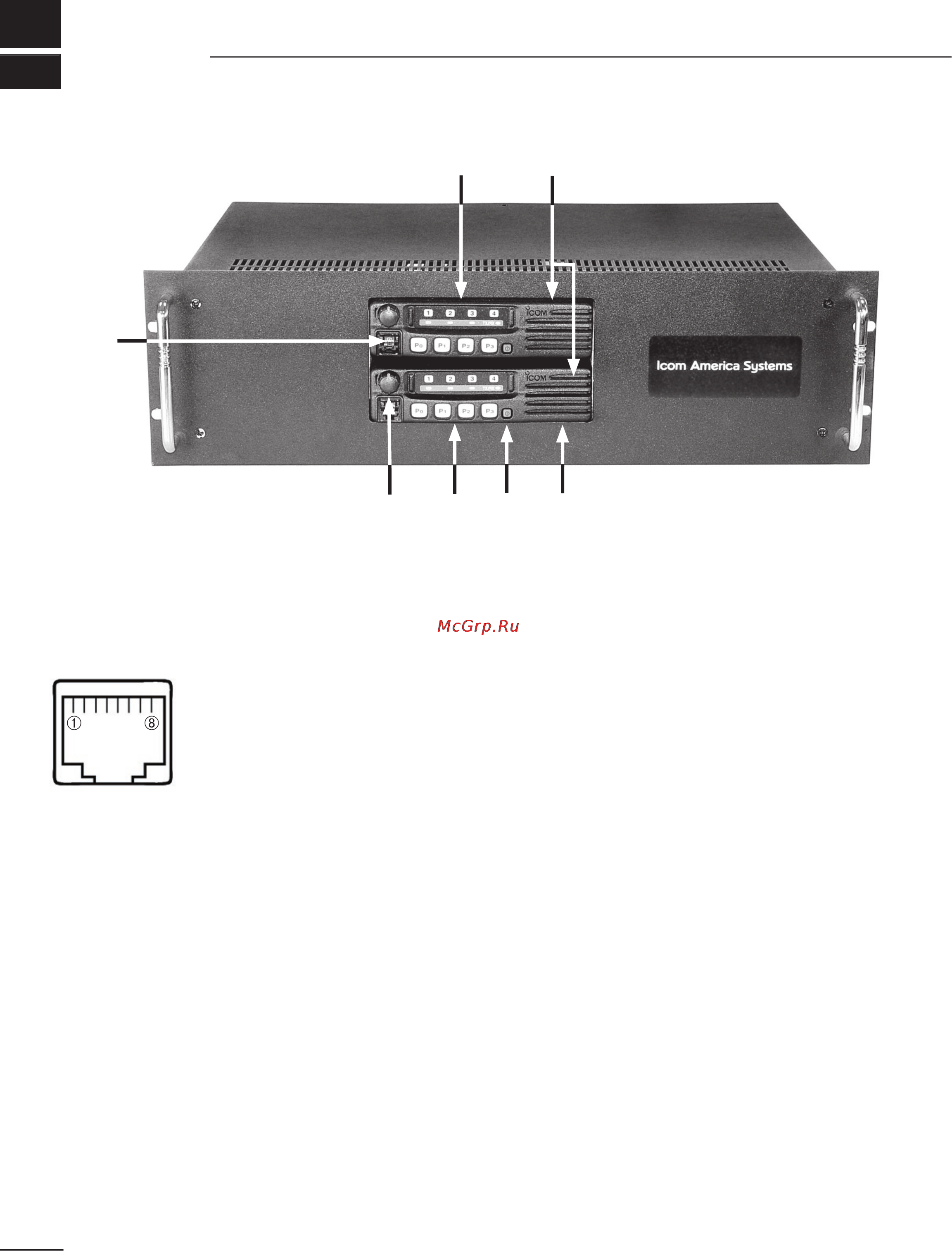

PANEL DESCRIPTION
■
Front Panel
➊
➋
➌
➍
➎
➎
1
➏
➏
➐
