64
11
OTHER FUNCTIONS
11
DD

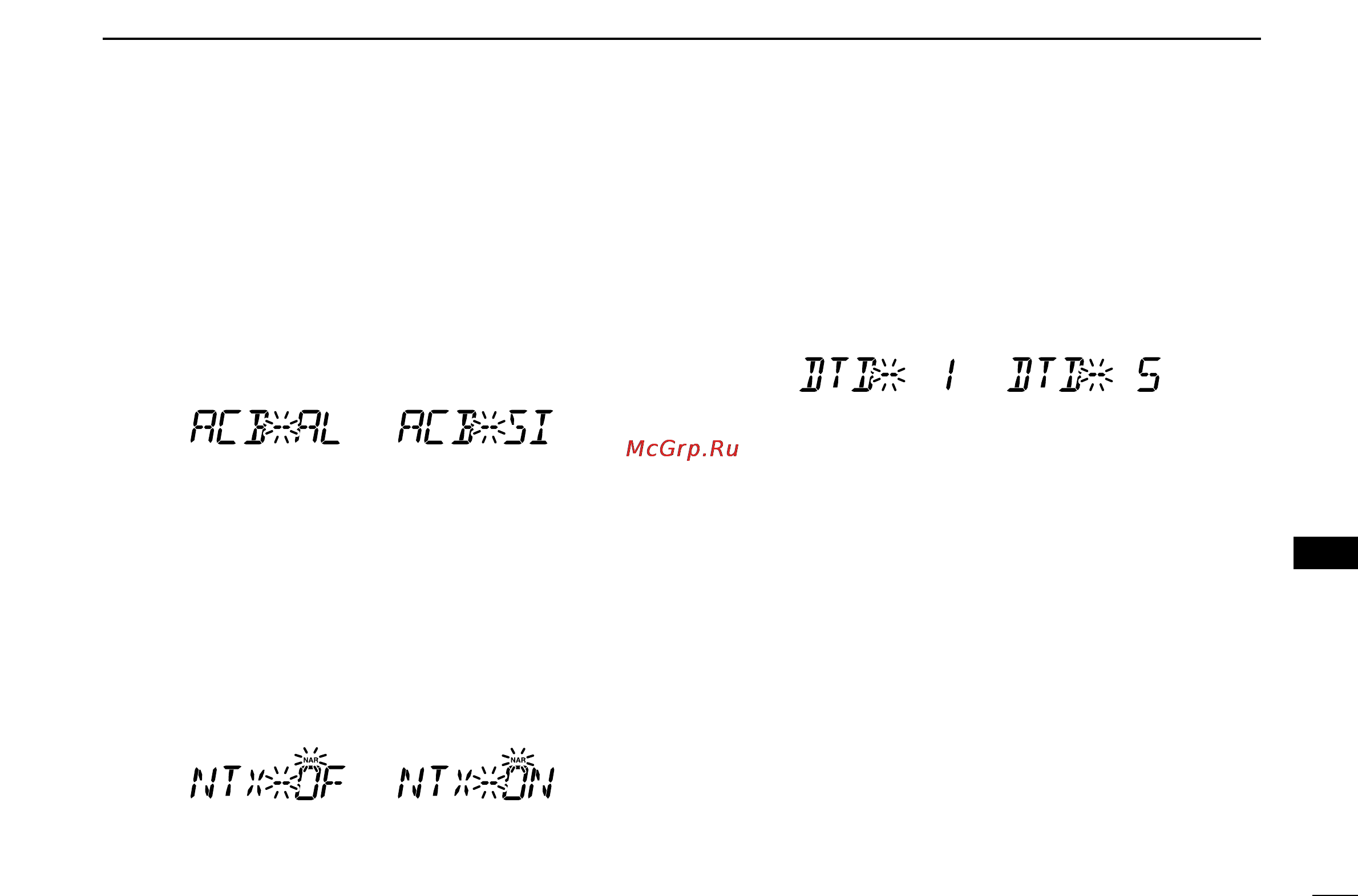

Active band
Selects the frequency selecting condition via [DIAL] or [Y]/[Z]
on the microphone from all (AL) and single (SI).
• All (AL) : The operating frequency can be selected
continuously.
• Single (SI) :
The operating frequency can be selected
within the current band. Pushing [BAND] for
1 sec. then tuning dial rotation is necessary
for frequency band selection.
DD
Narrow TX function
Select the narrow TX function ON and OFF.
• ON : Enables the FM-narrow mode transmission. The
deviation (modulation level) becomes half from
the regular FM transmission can be performed.
• OFF : Inhibits the FM-narrow mode transmission. The
regular FM deviation transmission is performed
(“NAR” indication disappears) even when FM-
narrow is selected.
DD
DTMF speed
The rate at which DTMF memories send individual DTMF
characters can be set to accommodate operating needs.
• 1 : 100 msec. interval; 5.0 cps speed
• 2 : 200 msec. interval; 2.5 cps speed
• 3 : 300 msec. interval; 1.6 cps speed
• 5 : 500 msec. interval; 1.0 cps speed
